T0053298699

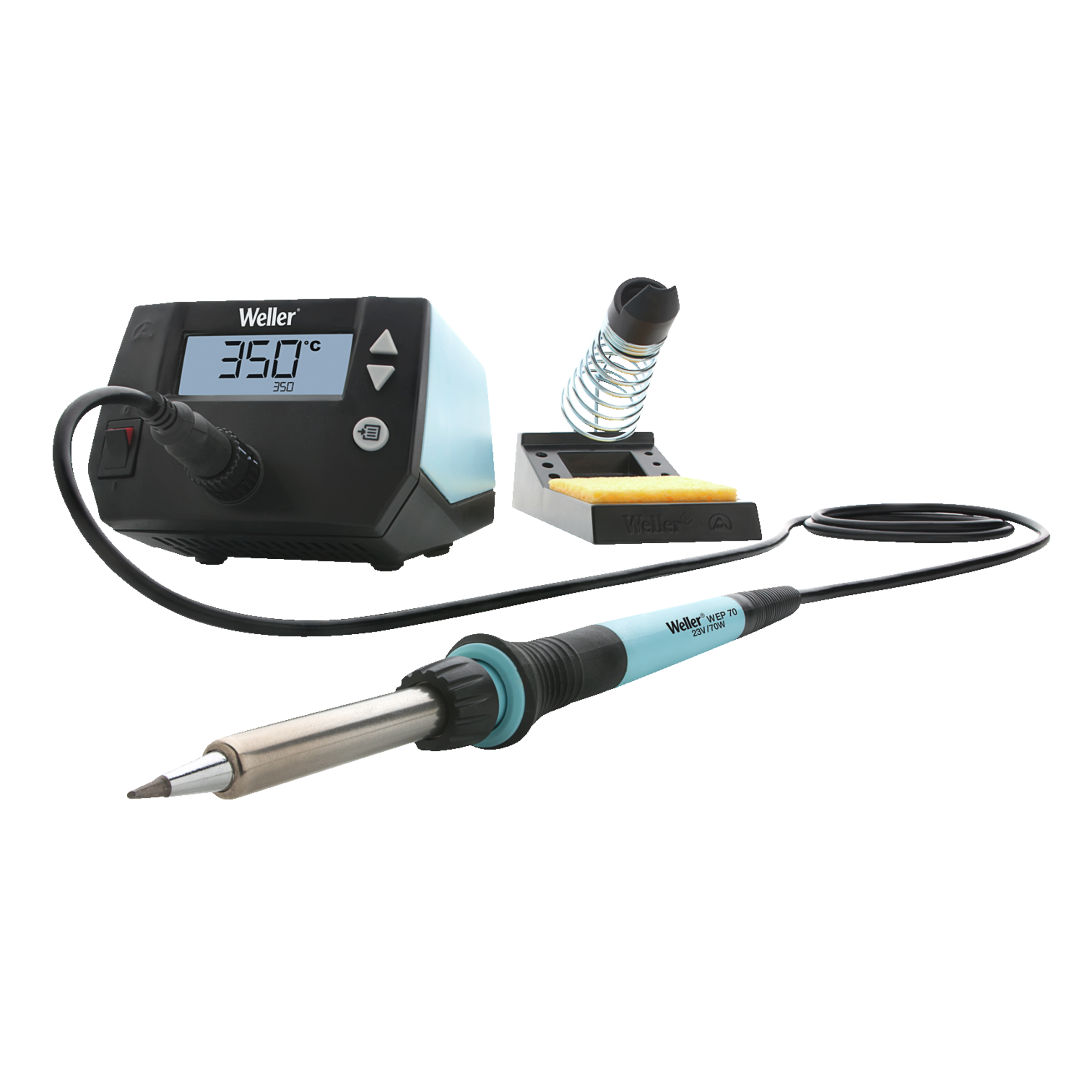

Weller Solder Station WE 85W 100°C 450°C

Manufacturer Part No.
T0053298699
Schukat Part No.
WE1010
Manufacturer
Weller
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

3 Pcs. in stock

Planned delivery time
Ø 10 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Display
true
Performance
85 W
Power supply
230 V
Operating Temperature Min.
100 °C
Operating Temperature Max.
450 °C
Weight
1,400 g
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Weller
Type
  • Solder Station
Series
  • WE
Product group
  • T1121 Weller Solder Stations
Dimension: Length
  • 150 mm
Dimension: Width
  • 120 mm
Dimension: Height
  • 98 mm
Display
Weight
  • 1,400 g
Features

  • - Power unit, 1 channel with soldering iron WEP 70 and safety rest PH 70
    - ergonomic design and toolless tip change
    - iron and heat- resistant silicon cable for safe handling
    - Using ET soldering tips
    - Stand-by and auto set-back conserves energy, protects equipment
    - Password-protected to preserve settings
    - Change hot tips out by hand by twisting the plastic knurled nut on the soldering pencil without an additional tool

Operating conditions

Operating Temperature Min.
  • 100 °C
Operating Temperature Max.
  • 450 °C

Electrical features

Power supply
  • 230 V
Performance
  • 85 W
Temperature stability
  • 6 °C

Safety/Certifications

ESD

Documents

WE_Brochure_web_DE.pdf
Download (pdf, 5.787 KB)
WE_WE_1_Manual_T0055745803.pdf
Download (pdf, 13.168 KB)
T0058768155_WE_Tip_flyer.pdf
Download (pdf, 873 KB)
WE_Brochure_web_DE.pdf
Download (pdf, 5.787 KB)
WE_WE_1_Manual_T0055745803.pdf
Download (pdf, 13.168 KB)
T0058768155_WE_Tip_flyer.pdf
Download (pdf, 873 KB)
