T0053173399

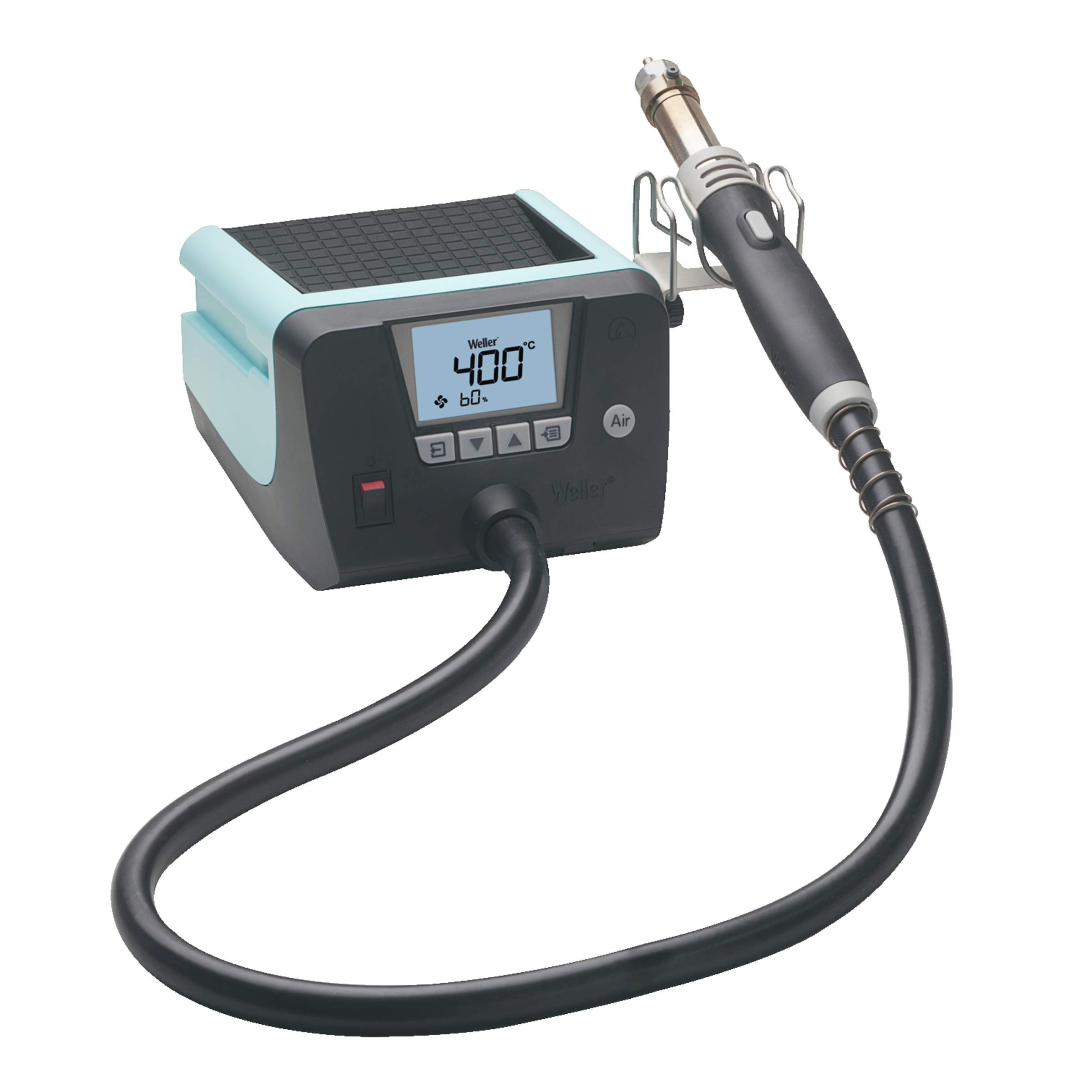

Weller Hot Air Station WT 900W 50°C 600°C

WTHA1WTHA1
Manufacturer Part No.
T0053173399
Schukat Part No.
WTHA1
Manufacturer
Weller
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Display
true
Performance
900 W
Power supply
230 V
Operating Temperature Min.
50 °C
Operating Temperature Max.
600 °C
Weight
1,950 g
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Weller
Product Family
  • Rework, Hot Air, Desoldering Stations
Type
  • Hot Air Station
Series
  • WT
Product group
  • T1175
Dimension: Length
  • 212 mm
Dimension: Width
  • 172 mm
Dimension: Height
  • 122 mm
Display
Application

  • For simple repair work and heating processes

Weight
  • 1,950 g
Features

  • - Modern user interface, intuitive operation thanks to clear menu navigation
    - Compact design thanks to stackability
    - The hot air temperature is controlled electronically
    - The brushless turbine ensures optimum hot air regulation
    - Up to 5 programmable presets that can run automatically as part of a profile
    - The housing lid can be used as an additional shelf
    - Off time, process window, lock function, offset
    - Power supply unit including shelf and permanently installed hot-air piston

Operating conditions

Operating Temperature Min.
  • 50 °C
Operating Temperature Max.
  • 600 °C

Electrical features

Power supply
  • 230 V
Performance
  • 900 W

Safety/Certifications

ESD

Documents

WE_WTHA1_Manual_Quick_Start_T005571601.pdf
Download (pdf, 3.751 KB)
WEL_WTHA1_Manual_T0055741601_web.pdf
Download (pdf, 5.446 KB)
Weller_WT_Brochure_de.pdf
Download (pdf, 6.712 KB)
