T0052922399N

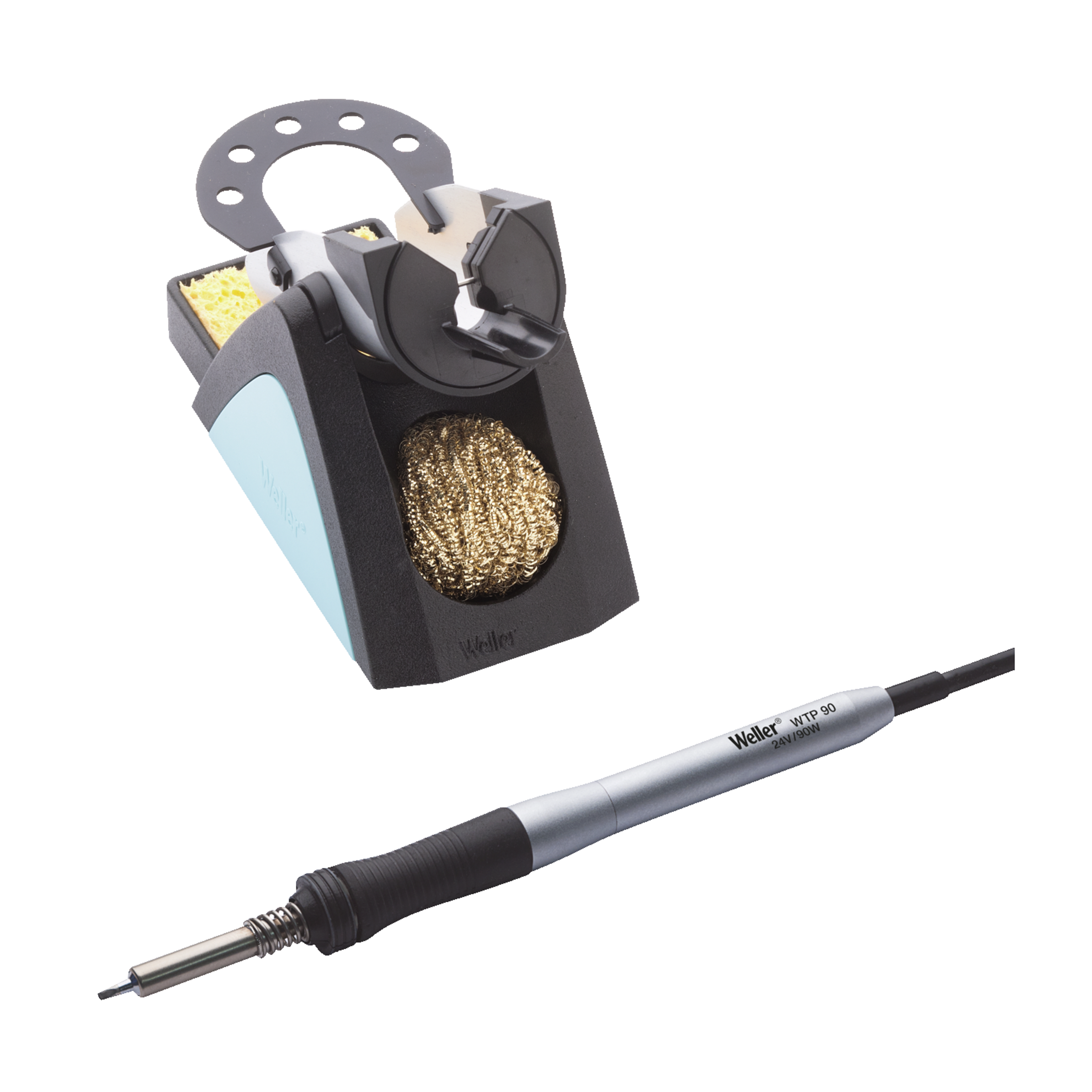

Weller Soldering Iron Set WTP90Set 90W 450°C

Manufacturer Part No.
T0052922399N
Schukat Part No.
WTP90SET
Manufacturer
Weller
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Back Order
1 Pcs.
Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Performance
90 W
Power supply
24 V
Heating time
7 s
Operating Temperature Min.
100 °C
Operating Temperature Max.
450 °C
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Weller
Type
  • Soldering Iron Set
Series
  • WTP90Set
Product group
  • T1181 Weller Soldering Tools for Soldering Stations 24V
Application

  • For demanding soldering work on small and medium-sized components with high power requirements

Features

  • - For challenging solder jobs with WT stations and WR rework stations
    - Reduces total costs of ownership due to motion sensor
    - Interchangeable XNT soldering tip provides flexibility
    - Interchangeable XNT soldering tips at low cost prices
    - Power response heating technology with improved sensor position
    - Fast heating up

Operating conditions

Operating Temperature Min.
  • 100 °C
Operating Temperature Max.
  • 450 °C

Electrical features

Power supply
  • 24 V
Performance
  • 90 W
Heating time
  • 7 s

Safety/Certifications

ESD
