12050001

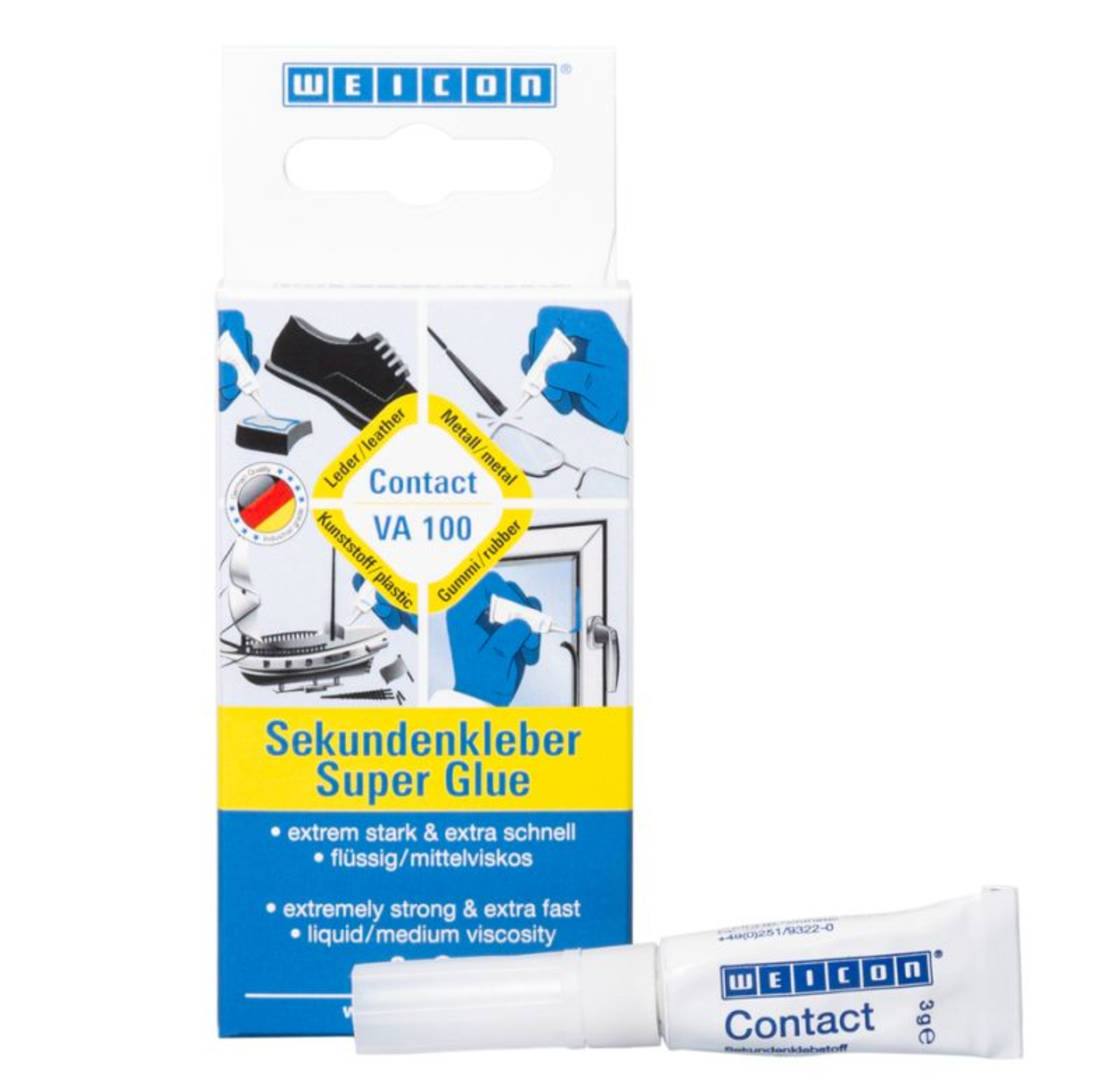

Weicon Liquid Adhesive 3g transparent

Image similar
Manufacturer Part No.
12050001
Schukat Part No.
UB807
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

Item no longer available!

Planned delivery time
---
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
EOL 11.04.2024
Discontinued by manufacturer with replacement
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Packaging (g)
3 g
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Weicon
Type
  • Liquid Adhesive
Series
  • VA 100
Application
  • bonding of metals, plastic and rubber

Colour
  • transparent
Packaging (g)
  • 3 g
Features
  • - Universal Cyanoacrylate Adhesive
    - For the bonding of metals, plastic and rubber, both to and among each other
    - For "do-it-yourself" as well as industrial use
    - Medium viscosity
    - Slightly longer curing
    - ISEGA certified

Operating conditions

Temperature resistance, min.
  • -50 °C
Temperature resistance, max.
  • 80 °C
Storage
  • WEICON Contact Cyanoacrylate Adhesives have a shelf life of at least 9 months, when stored in unopened condition at room temperature (+18 °C to +25 °C) in a dry and dark space. Temperatures of approx. +5 °C will increase the shelf life to 12 months.

Shelf Life
  • 12 Monate
Viscosity, min. (20°C)
  • 60 mPa·s
Viscosity, max. (20°C)
  • 120 mPa·s

Safety/Certifications

Directions
  • Surface pre-treatment: For a flawless adhesive bond, surfaces must be clean and dry (clean and degrease with WEICON Surface Cleaner). Smooth surfaces should be roughened mechanically. To improve the adhesion of plastics difficult to bond (e.g. PE, PP, POM, PTFE), thermoplastic elastomers (TPE) and silicones, WEICON CAPrimer can be applied to the bonding surface.

    Processing:

    - Apply WEICON Contact Cyanoacrylate Adhesive to just one of the bonding surfaces. - The layer thickness when applying the adhesive should be between min. 0.05 and max. 0.2 mm (depending on the type), as otherwise complete curing cannot be guaranteed.

    - For large-surface bondings, WEICON Contact Cyanoacrylate Adhesives should be applied in dots in order to prevent inner tensions.

    - WEICON Contact Cyanoacrylate Adhesives are very economical. One drop covers approx. 3 to 5 cm² bonding surface.

    - The components should be bonded at a relative air humdity level between 40% and 80%. Below 40 %, the curing process is slowed down significantly or even prevented altogether. At an air humdity level above 80 % or with strongly basic substrates (e.g. glasses), the risk of shock-curing occurs. In these cases, certain materials show a drop in strength by 10 % to 15 % due to tensions in the adhesive layer.

    - Alkaline surfaces (pH value >7) accelerate the curing process, acidic surfaces (pH value <7) slow down the curing process and can prevent polymerisation altogether in extreme cases.
