10053563

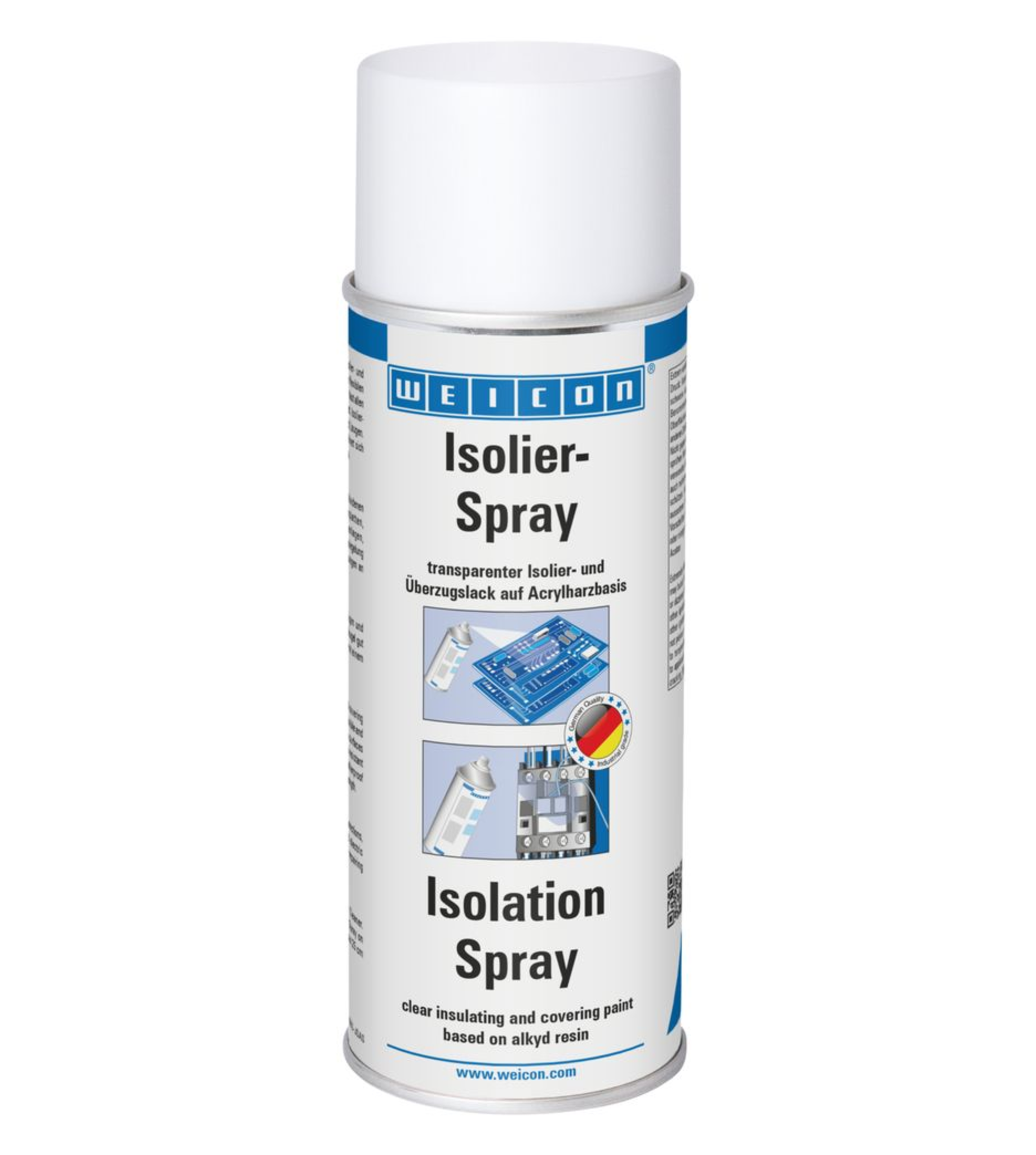

Weicon Protective Lacquer  10053563 400 ml

Manufacturer Part No.
10053563
Schukat Part No.
WEI10053563
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 1 Week
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Manufacturer bundle 12 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 12 or multiple of 12)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Protective Lacquer
Shelf Life
24 Monate
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Weicon
Type
  • Protective Lacquer
Series
  • 115514
Application
  • Insulation and cover

Packaging (ml)
  • 400 ml
Features
  • - Serves as protective coating on electrical connections, switches, switchboards, electronic components and electric coils
    - For use as universal sealing in electrical engineering or for repairing isolations on electric motors, windings and frames
    - Clear isolation and covering paint based on alkyd resin
    - Hardens into a flexible and resistant film
    - With excellent adhesion to most common surfaces such as metal, glass, plastic or wood
    - Resistant to UVrays, acids, oils and alkalis
    - High dielectric strength
    - Moisture and weatherproof

Operating conditions

Storage
  • Pressurized container. Protect from direct sunlight and temperatures above +50 °C.

Shelf Life
  • 24 Monate

Safety/Certifications

Directions
  • Clean and degrease surfaces with WEICON Surface Cleaner. Surfaces should be dry and free from dust and grease. Shake can before use, until the mixing pea is clearly audible. Apply the spray at room temperature (approx. +20 °C) evenly from a distance of approx. 25 cm.
