Image similar

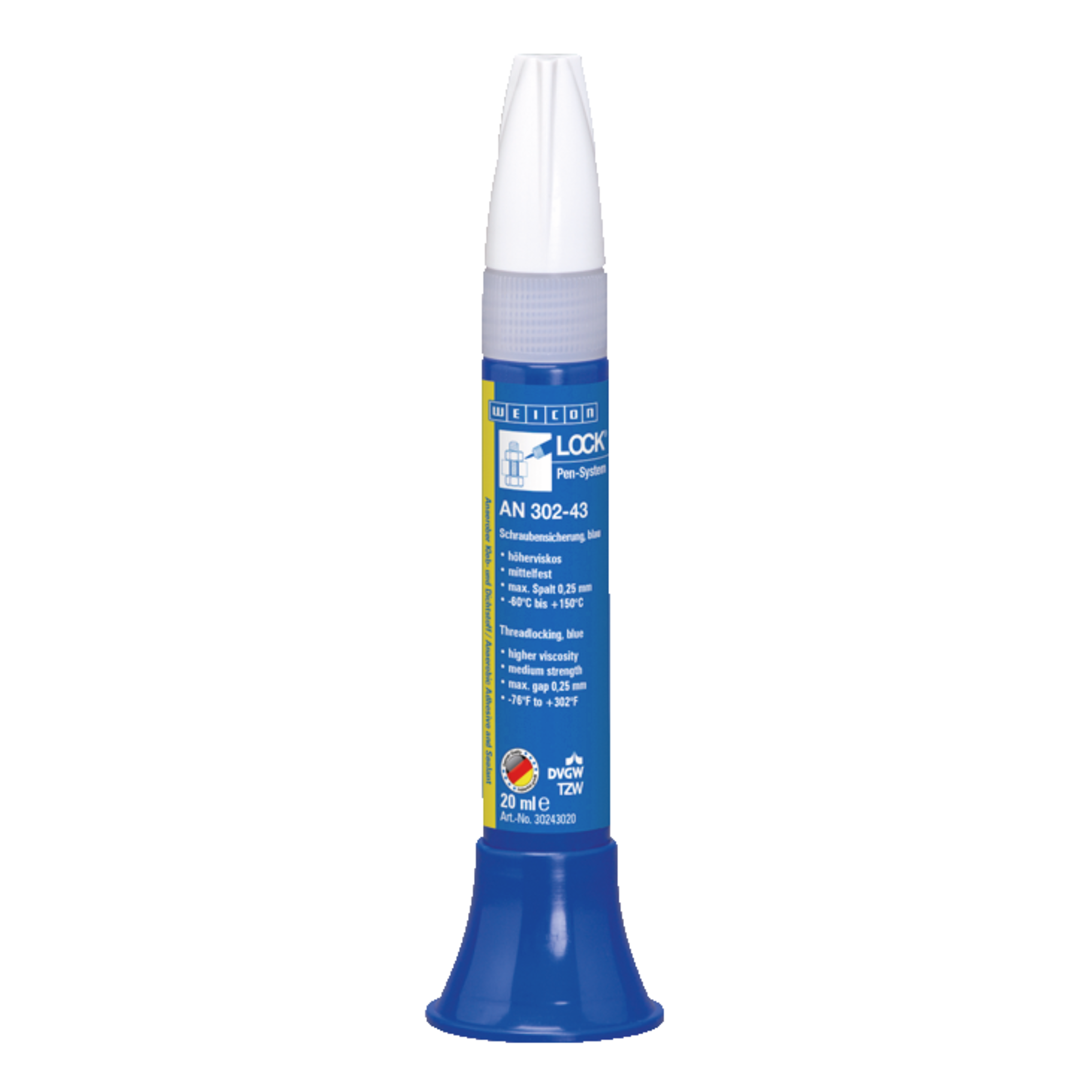

Manufacturer Part No.
10016419
Schukat Part No.
WEI10016419
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 1 Week
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 12 or multiple of 12)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Weicon
Type
  • Sealing Lacquer
Series
  • WEICONLOCK®
Features
  • - blue, mid-strength thread locking compound.
    - dismantleable, medium viscosity
    - KTW tested by the Water Technology Centre (TZW), Karlsruhe, Water Testing Station
    - for threaded connections up to M36
    - fills gaps up to 0.25mm maximum
    - temperature resistance range: -60°C to +200°C

Operating conditions

Storage
  • WEICONLOCK has a shelf life of at least 24 months, when stored at room temperature in closed original container. Protect from heat sources and direct sunlight. The air contained in the Pen keeps WEICONLOCK liquid.

Shelf Life
  • 24 Monate
Viscosity, min. (20°C)
  • 2,000 mPa·s
Viscosity, max. (20°C)
  • 7,000 mPa·s

Safety/Certifications

Directions
  • Surface pre-treatment: To achieve optimum results, the mounting parts should be degreased and cleaned, e.g. with WEICON Surface (roughen the surfaces, if required). WEICONLOCK can also be used on uncleaned surfaces, e.g. screws as delivered. However, the cleaner the surface, the better the results achieved.

    Processing: WEICONLOCK is applied evenly straight from the Pen with the help of the dosing tip; avoid direct contact between dosing tip /metal. For sealing applications, apply WEICONLOCK to the thread in circles. Assemble parts and screw tight. Do not pour any WEICONLOCK back into the bottle that has already come into contact with metal. Even extremely small metal particles cause the adhesive to cure inside the bottle. Therefore, in serial production, the use of dosing devices is recommended.

Documents

Uebersicht_Dosierhilfen.pdf
MSDS_302430_DE_DE_WEICONLOCK AN 302-43.pdf
Uebersicht_Dosierhilfen.pdf
MSDS_302430_DE_DE_WEICONLOCK AN 302-43.pdf
