10016398

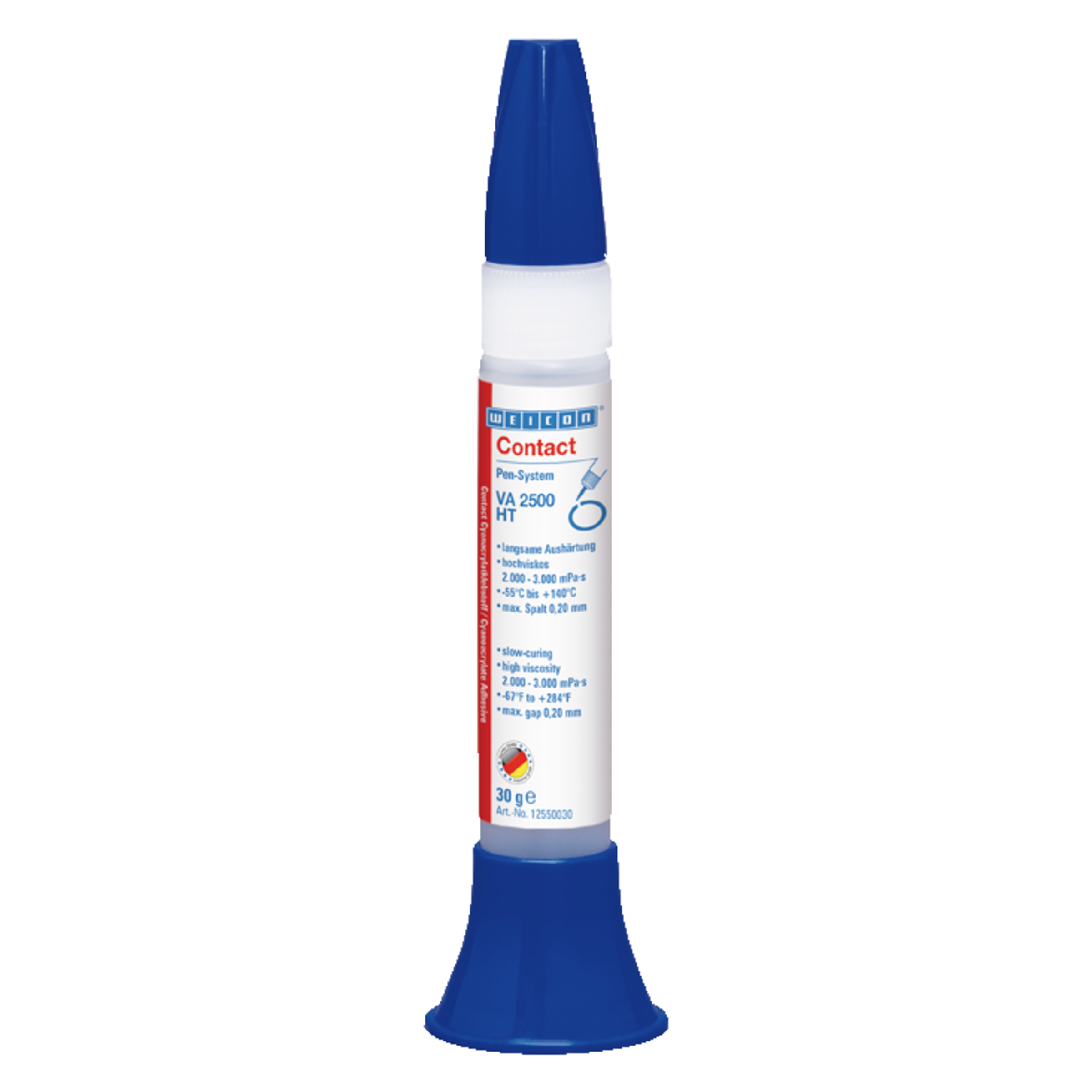

Weicon Cyanoacrylate Adhesive 30g transparent
![Herstellerlogo](https://shopapi.schukat.com/medias/WEICON-Logo-2022.png?context=bWFzdGVyfHBpbWFzc2V0c3w0NDQzfGltYWdlL3BuZ3xhRGM0TDJnMFppOHhNRFE0TmpBMU9ETXhPVGt3TWk5WFJVbERUMDVmVEc5bmIxOHlNREl5TG5CdVp3fGZhOTRiMDE1OGRhZDNmMGY0MmQzNzhmMmVjYjRjOTcwZTg0YzVhYzFlY2FjYzg2NDZjYjdjYzNjZjVlOWYzMWM)
19 Pcs. in stock
Prices
Quantity and Options
Fact Sheet
- Packaging (g)
- 30 g
- RoHS-Conform
Specifications
Operating conditions
- Thermal conductivity
- 0.1 W/m.K
- Temperature resistance, min.
- -55 °C
- Temperature resistance, max.
- 140 °C
- Storage
Contact Cyanoacrylate Adhesives have a shelf life of at least 9 months, when stored in unopened condition at room temperature (+18 °C to +25 °C) in a dry and dark space. Temperatures of approx. +5 °C will increase the shelf life to 12 months.
- Shelf Life
- 12 Monate
- Viscosity, min. (20°C)
- 2,000 mPa·s
- Viscosity, max. (20°C)
- 3,000 mPa·s
Safety/Certifications
- Directions
Surface pre-treatment:
• For a flawless adhesive bond, surfaces must be clean and dry (clean and degrease with Surface Cleaner).
• Smooth surfaces should be roughened mechanically.
• To improve the adhesion of plastics difficult to bond (e.g. PE, PP, POM, PTFE), thermoplastic elastomers (TPE) and silicones, CA-Primer can be applied to the bonding surface.
Processing:
• Apply Contact Cyanoacrylate Adhesive to just one of the bonding surfaces.
• The layer thickness when applying the adhesive should be between min. 0.05 and max. 0.2 mm (depending on the type), as otherwise complete curing cannot be guaranteed.
• For large-surface bondings, Contact Cyanoacrylate Adhesives should be applied in dots in order to prevent inner tensions.
• Contact Cyanoacrylate Adhesives are very economical.
• One drop covers approx. 3 to 5 cm² bonding surface.
• The components should be bonded at a relative air humdity level between 40% and 80%.
• Below 40 %, the curing process is slowed down significantly or even prevented altogether.
• At an air humdity level above 80 % or with strongly basic substrates (e.g. glasses), the risk of shock-curing occurs.
• In these cases, certain materials show a drop in strength by 10 % to 15 % due to tensions in the adhesive layer.
• Alkaline surfaces (pH value >7) accelerate the curing process, acidic surfaces (pH value <7) slow down the curing process and can prevent polymerisation altogether in extreme cases.
