SMDTC03470KB00KP00

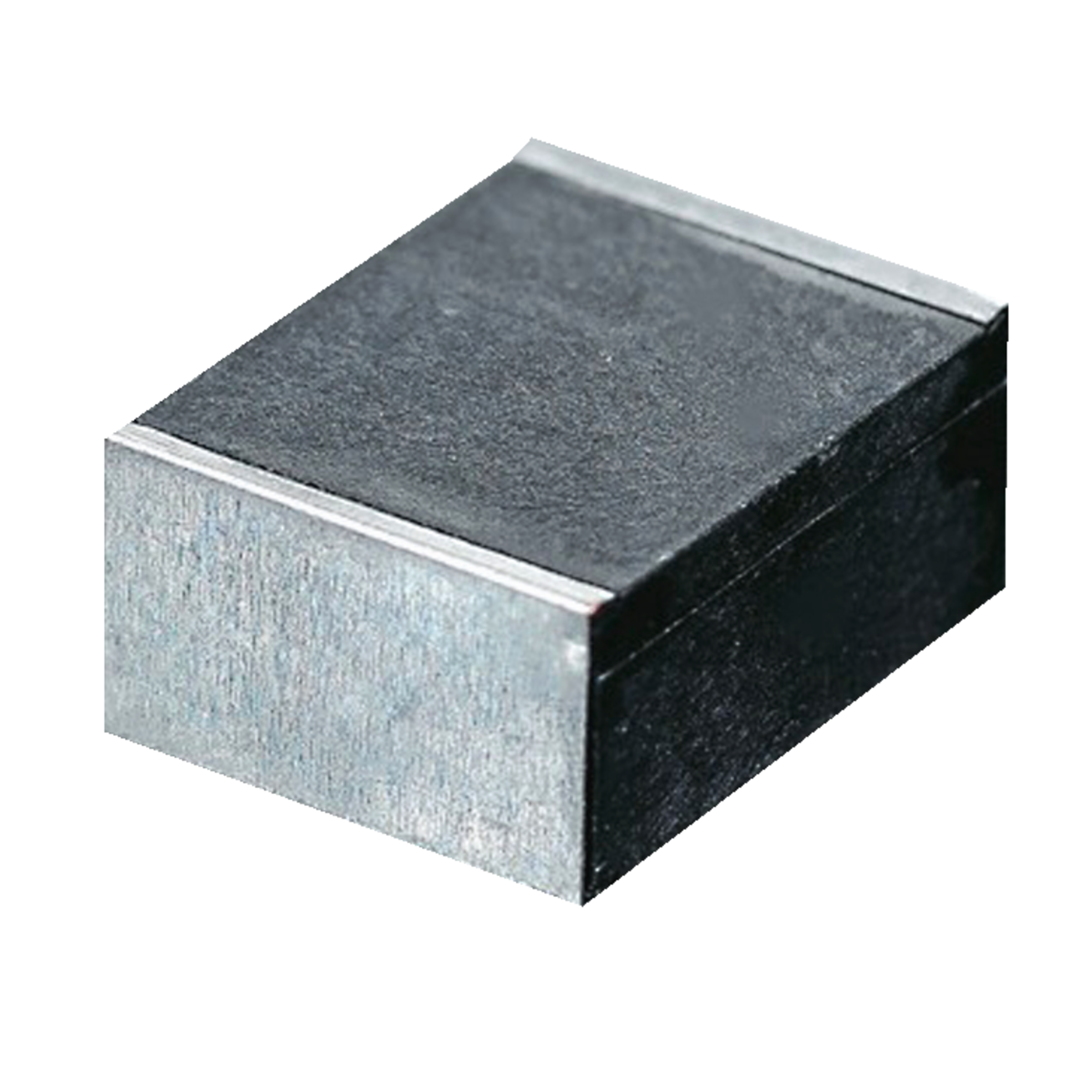

WIMA SMD MKT capacitor SMD-PET 1812 63V 0,47nF
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 09.12.2025
Discontinued by manufacturer without replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- MKT capacitor
- Dielectric
- Metallized PET film
- Capacity
- 0,47 nF
- Kapazitätstoleranz [%]
- ±10
- Rated voltage DC
- 63 V
- Assembly Type
- SMD
- Housing
- 1812
- RoHS-Conform
Specifications
Open all

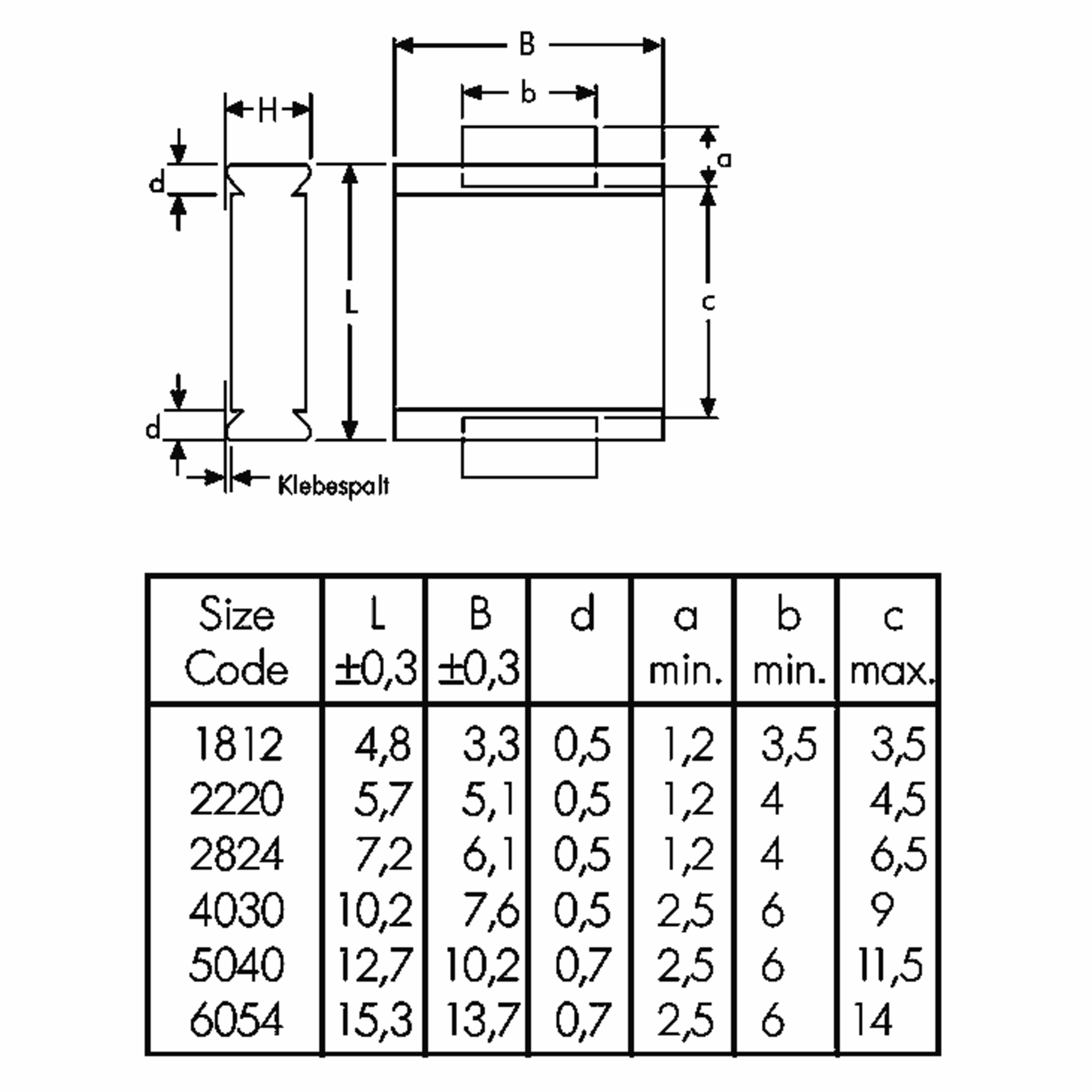

Dimensions and Weights
- Dimension: Length
- 4.8 mm
- Dimension: Width
- 3.3 mm
- Dimension: Height
- 4 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 100 °C
- Climate category IEC
- 55/100/51
Technical Features
- Solderability
- 260°C / 5s
- Capacity
- 0,47 nF
- Capacity
- 0.47
- Capacity unit
- nF
- Kapazitätstoleranz [%]
- ±10
- Rated voltage DC
- 63 V
- Reliability
- 2 fit
- Service life
- 300.000 h
- Insulation resistance
- 3.750 MOhm
