MPX21W2330FD00MSSD

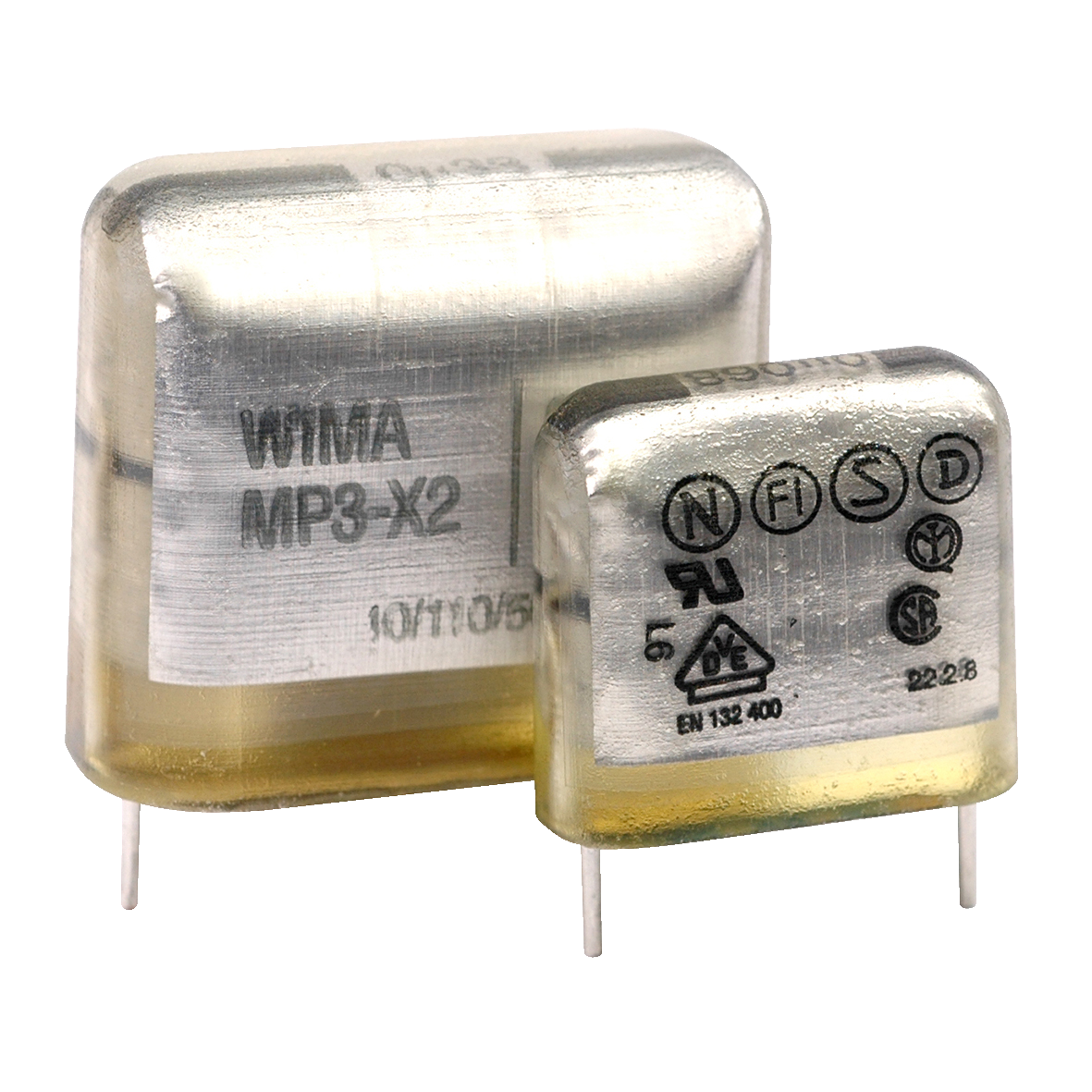

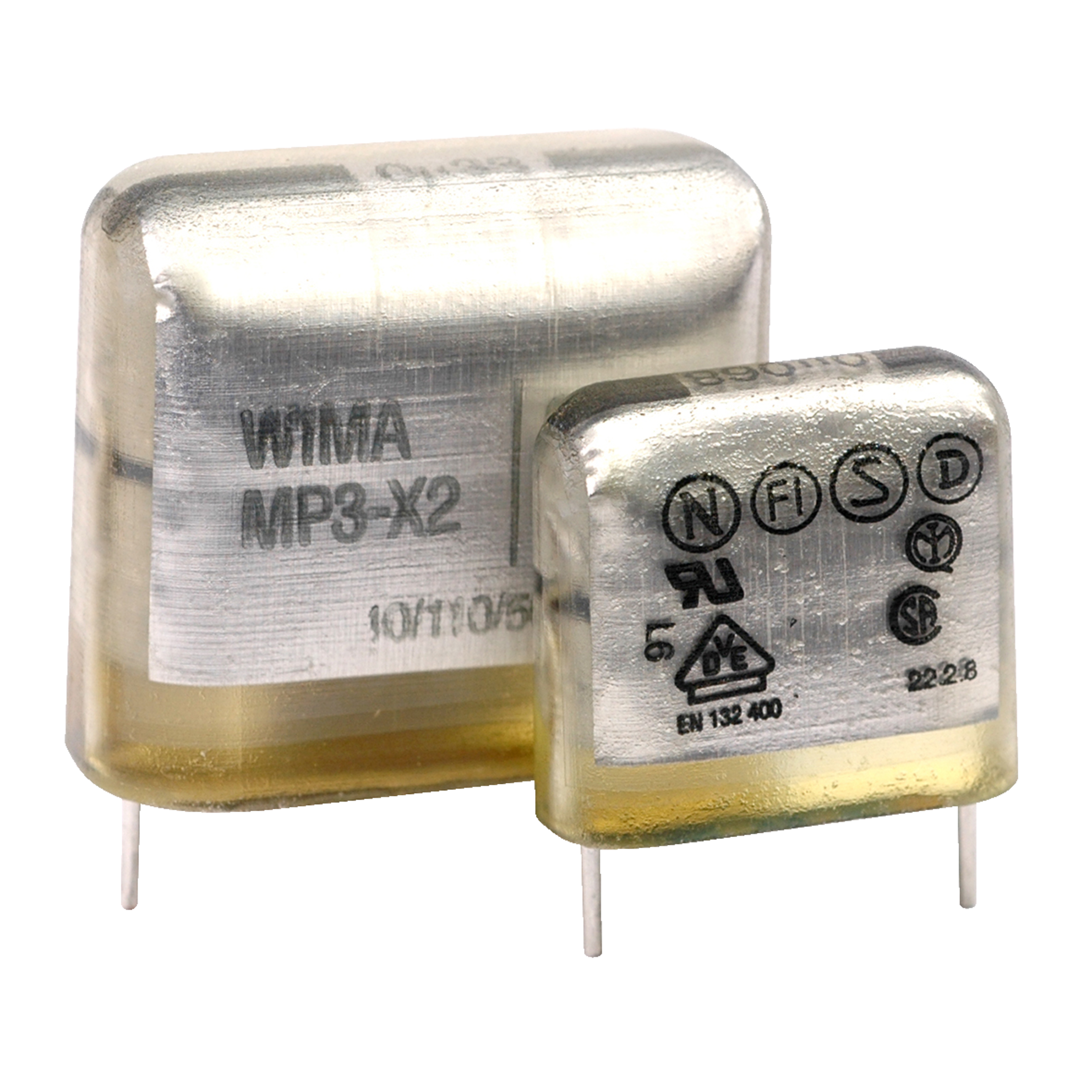

WIMA THT MP suppression capacitor MP3-X2 radial 275V 33nF X2 RM15mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 26.07.2023
Discontinued by manufacturer without replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- MP suppression capacitor
- Class
- X2
- Dielectric
- Capacitor paper
- Capacity
- 33 nF
- Capacity Tolerance
- ±20%
- Assembly Type
- THT
- Housing
- radial
- Pitch
- 15 mm
- RoHS-Conform
Specifications
Open all

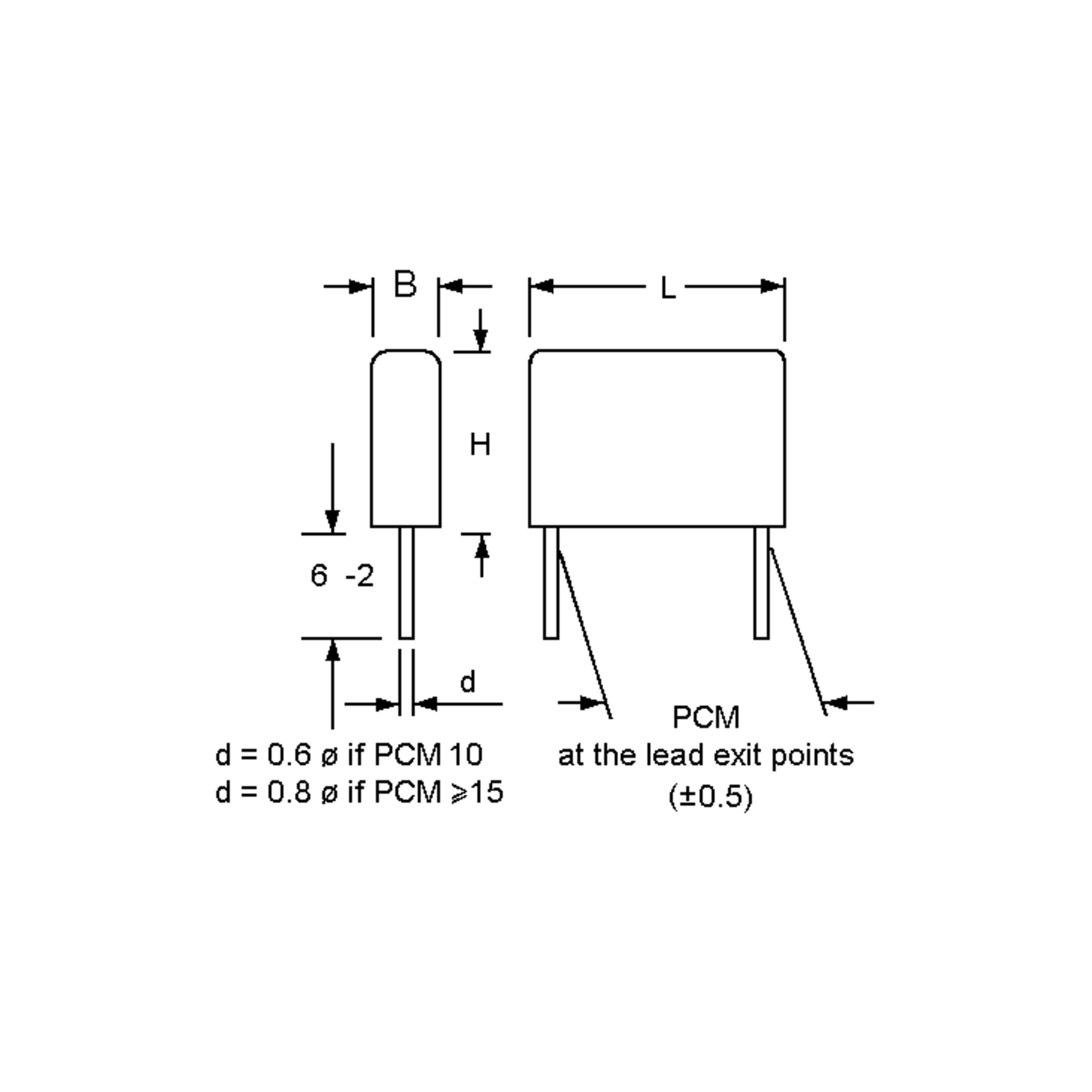

Dimensions and Weights
- Dimension: Length
- 19 mm
- Dimension: Width
- 6 mm
- Dimension: Height
- 14 mm
- Pitch
- 15 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 110 °C
- Climate category IEC
- 40/110/56/C
Technical Features
- Capacity
- 33 nF
- Capacity
- 33
- Capacity unit
- nF
- Capacity Tolerance
- ±20%
- Rated voltage AC
- 275 V
- Pulse Rise Time
- 750 V/µs
- Class
- X2
- Reliability
- 1 fit
- Service life
- 300.000 h
- Insulation resistance
- 12.000 MOhm
Safety/Certifications
- Approvals
- ENEC
- cULus
- Standards
- EN 60384–14, UL 60384-14, CAN/CSA E60384-14
