MKX14W41006J00KSSD
WIMA THT MKP suppression capacitor MKP-X1 radial 440V 1000nF 10% RM27,5mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
132 Pcs. in stock
Planned delivery time
Ø 24 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 162 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 6 or multiple of 6)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- MKP suppression capacitor
- Class
- Capacity
- 1.000 nF
- Capacity tolerance
- 10 %
- Assembly Type
- THT
- Housing
- radial
- Pitch
- 27.5 mm
- RoHS-Conform
Specifications
Open all

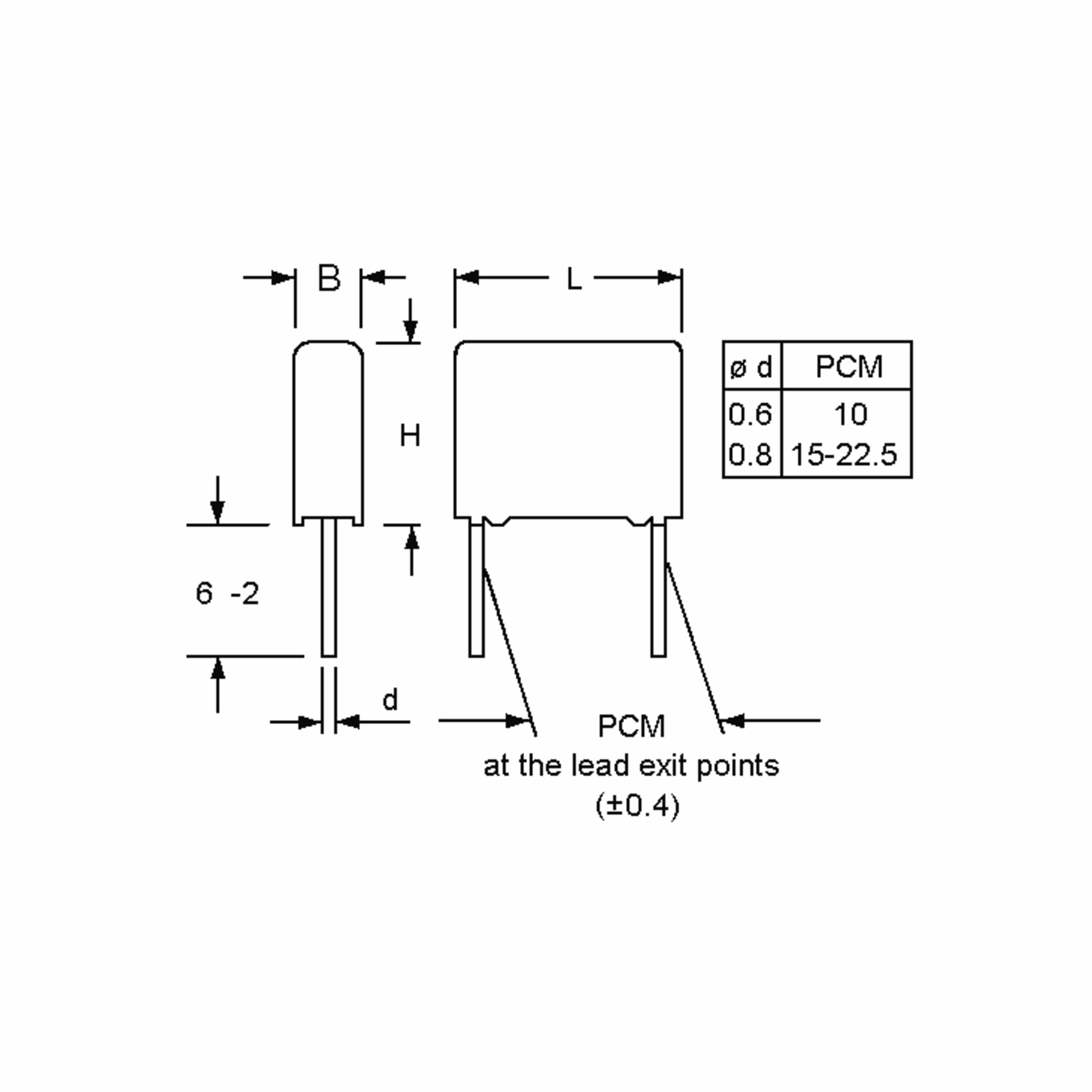

Dimensions and weights
- Dimension: Length
- 31.5 mm
- Dimension: Width
- 20 mm
- Dimension: Height
- 39.5 mm
- Pitch
- 27.5 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 105 °C
- Climate category IEC
- 55/105/56
Technical features
- Capacity
- 1.000 nF
- Capacity
- 1,000
- Capacity unit
- nF
- Capacity tolerance
- 10 %
- Rated voltage AC
- 440 V
- Pulse Rise Time
- 100 V/µs
- Class
- Reliability
- 2 fit
- Service life
- 300.000 h
- Insulation value in sec.
- 5,000 s
Safety/Certifications
- Approvals
- ENEC
- cULus
- Standards
- IEC 60384-14/4, UL 60384-14, CAN/CSA E60384-14
