MKPFAW52509FD4KSSD
WIMA THT MKP capacitor MKP4F radial 305V 25µF RM52,5mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 20 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- MKP capacitor
- Dielectric
- Metallized PP film
- Capacity
- 25 µF
- Capacity Tolerance
- ±10%
- Rated voltage DC
- 305 V
- Assembly Type
- THT
- Housing
- radial
- Pitch
- 52.5 mm
- RoHS-Conform
Specifications
Open all

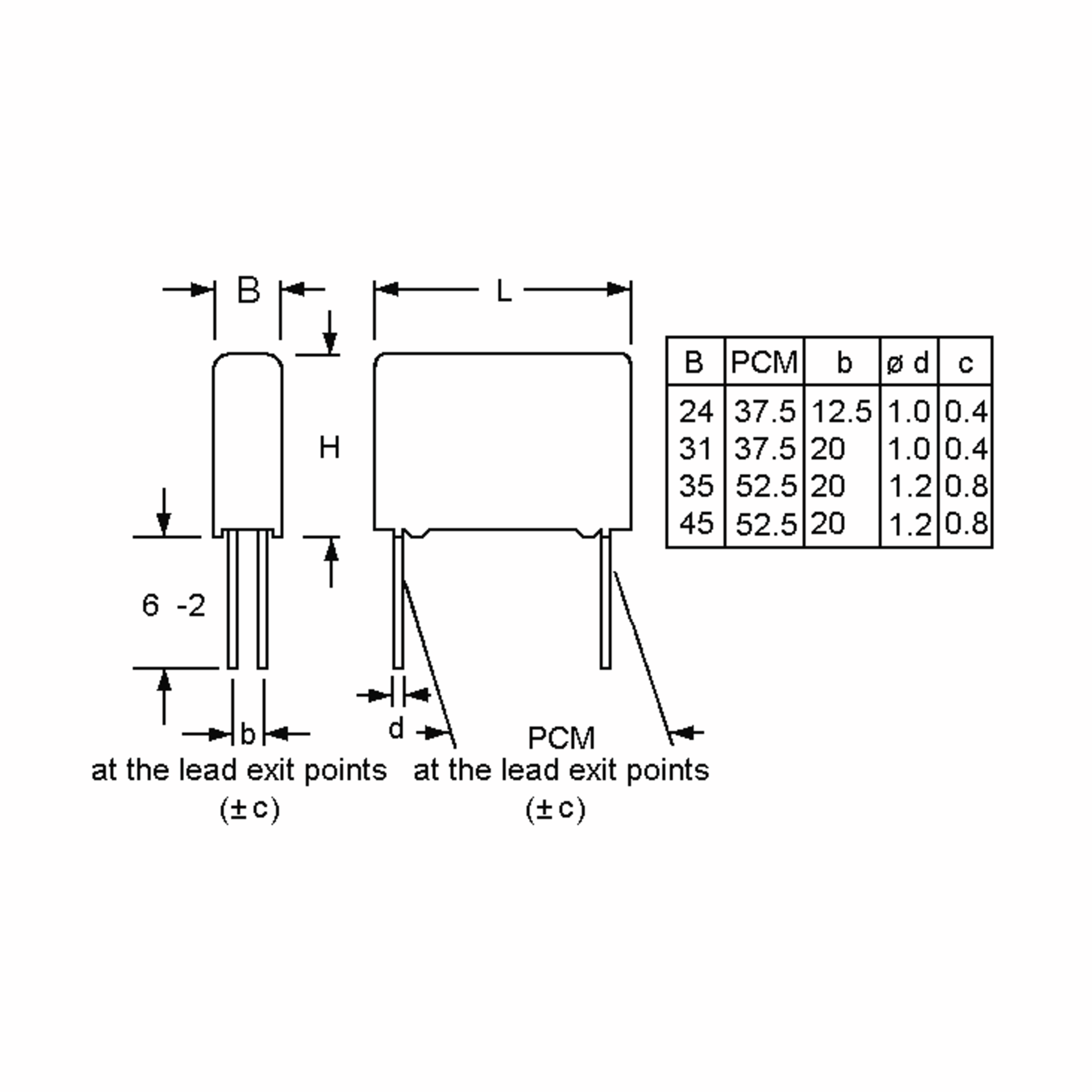

Dimensions and Weights
- Dimension: Length
- 57 mm
- Dimension: Width
- 35 mm
- Dimension: Height
- 50 mm
- Pitch
- 52.5 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 105 °C
- Climate category IEC
- 55/105/56
Technical Features
- Capacity
- 25 µF
- Capacity
- 25
- Capacity unit
- µF
- Capacity Tolerance
- ±10%
- Rated voltage DC
- 305 V
- Pulse Rise Time
- 15 V/µs
- Reliability
- 10 fit
- Service life
- 60.000 h
- Insulation value in sec.
- 30,000 s
