MKPCH031003C00KSSD

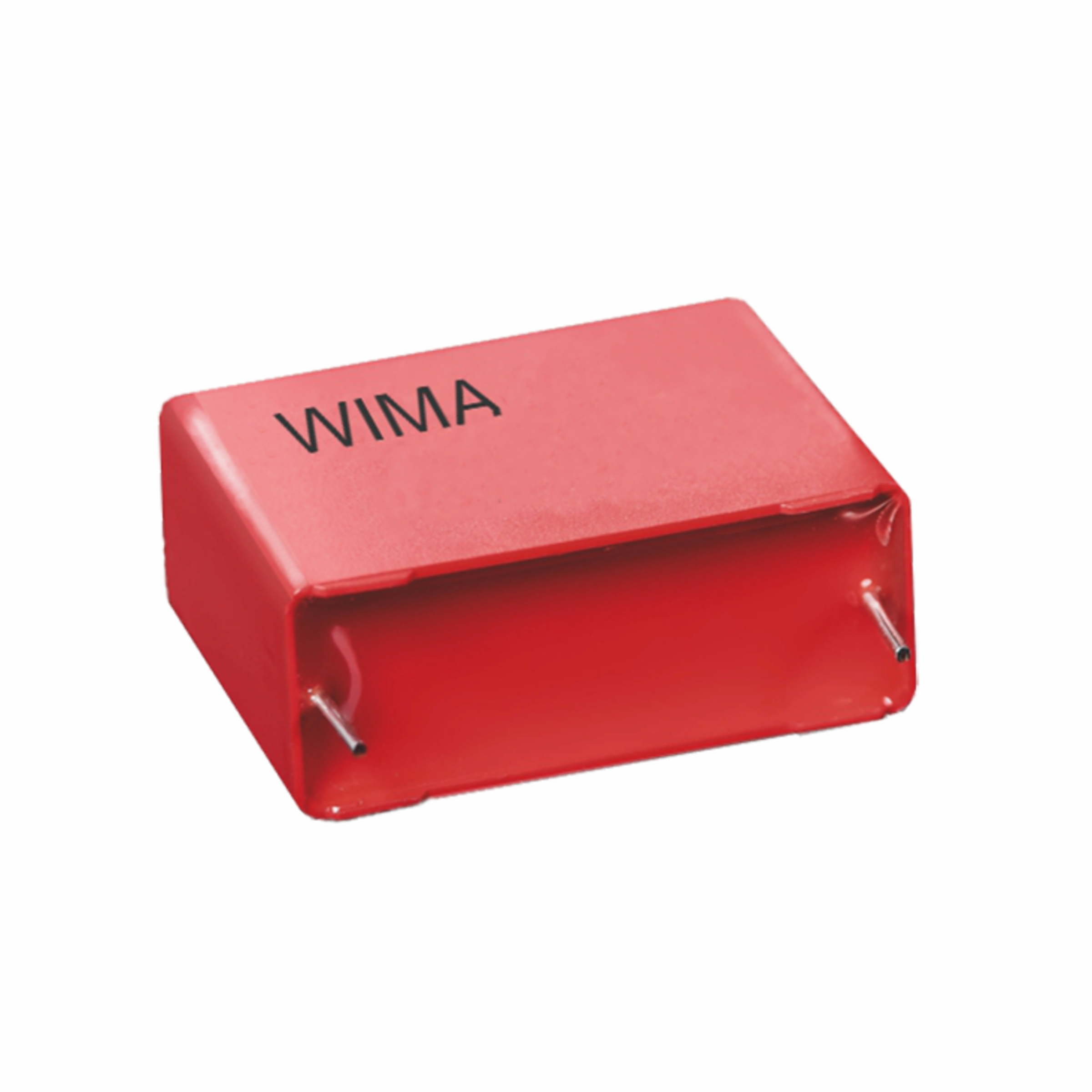

WIMA THT MKP capacitor MKP4C radial 450V 0,1µF RM10mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
450 Pcs. in stock
Planned delivery time
Ø 20 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 3000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- MKP capacitor
- Dielectric
- Metallized PP film
- Capacity
- 0,1 µF
- Capacity Tolerance
- ±10%
- Rated voltage DC
- 450 V
- Assembly Type
- THT
- Housing
- radial
- Pitch
- 10 mm
- RoHS-Conform
Specifications
Open all

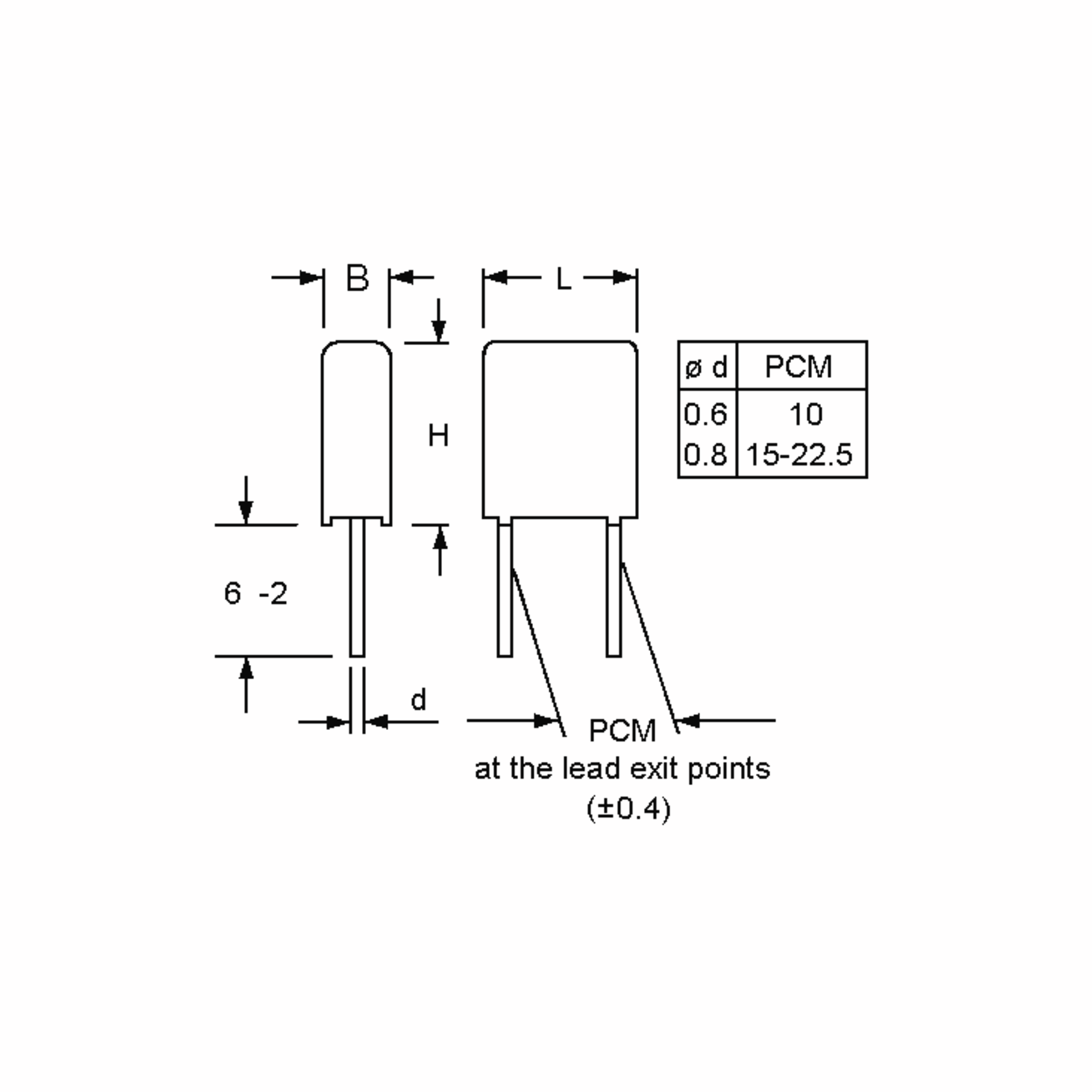

Dimensions and Weights
- Dimension: Length
- 13 mm
- Dimension: Width
- 4 mm
- Dimension: Height
- 9 mm
- Pitch
- 10 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 110 °C
- Climate category IEC
- 55/110/56
Technical Features
- Capacity
- 0,1 µF
- Capacity
- 0.1
- Capacity unit
- µF
- Capacity Tolerance
- ±10%
- Rated voltage DC
- 450 V
- Pulse Rise Time
- 140 V/µs
- Reliability
- 24 fit
- Service life
- 300.000 h
- Insulation resistance
- 100 GOhm
