FKP1U021506D00KSSD

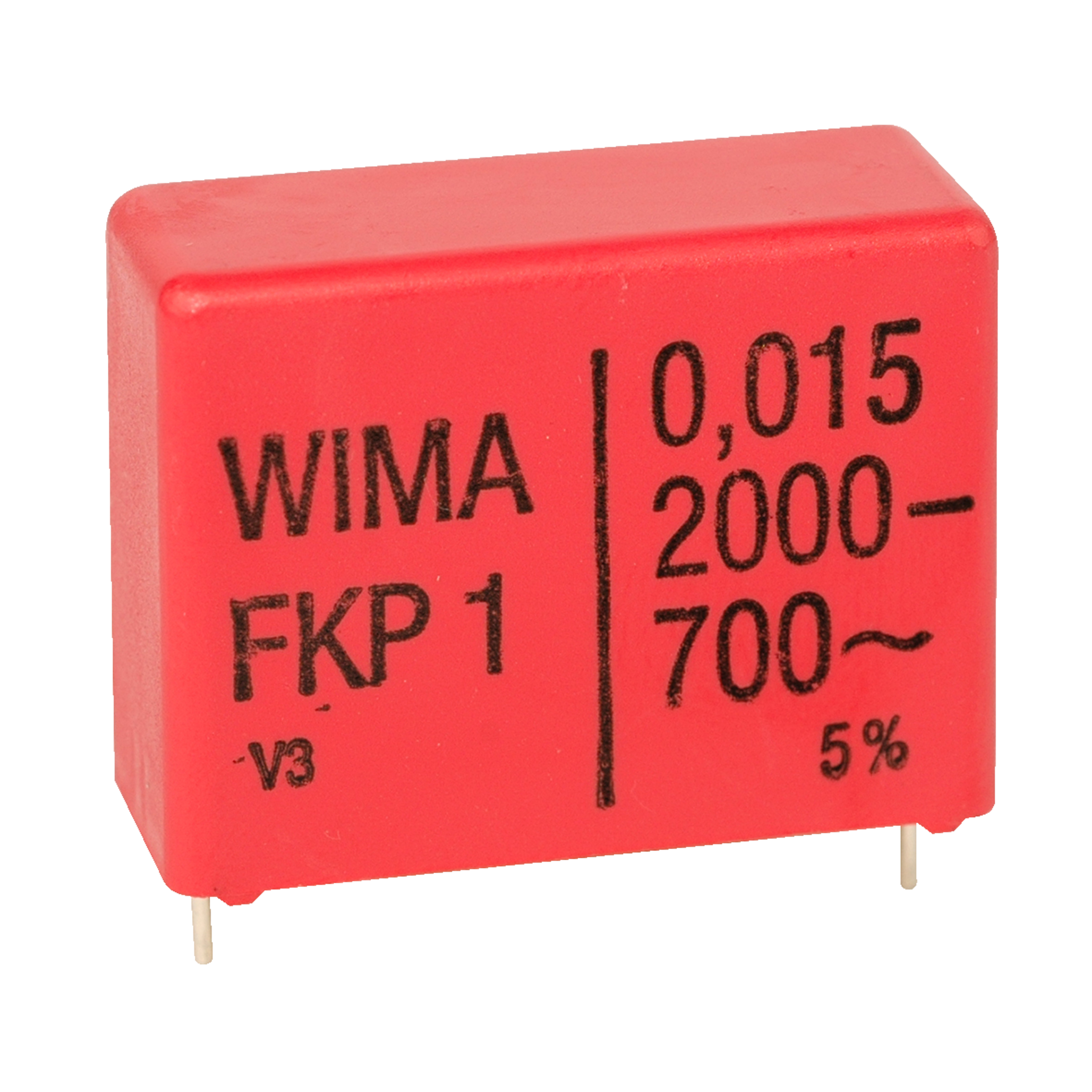

WIMA THT FKP capacitor FKP1 radial 700V 2.000V 15nF 10% RM27,5mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
270 Pcs. in stock
Planned delivery time
Ø 22 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 378 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 9 or multiple of 9)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- FKP capacitor
- Capacity
- 15 nF
- Capacity tolerance
- 10 %
- Rated voltage DC
- 2,000 V
- Assembly Type
- THT
- Housing
- radial
- Pitch
- 27.5 mm
- RoHS-Conform
Specifications
Open all

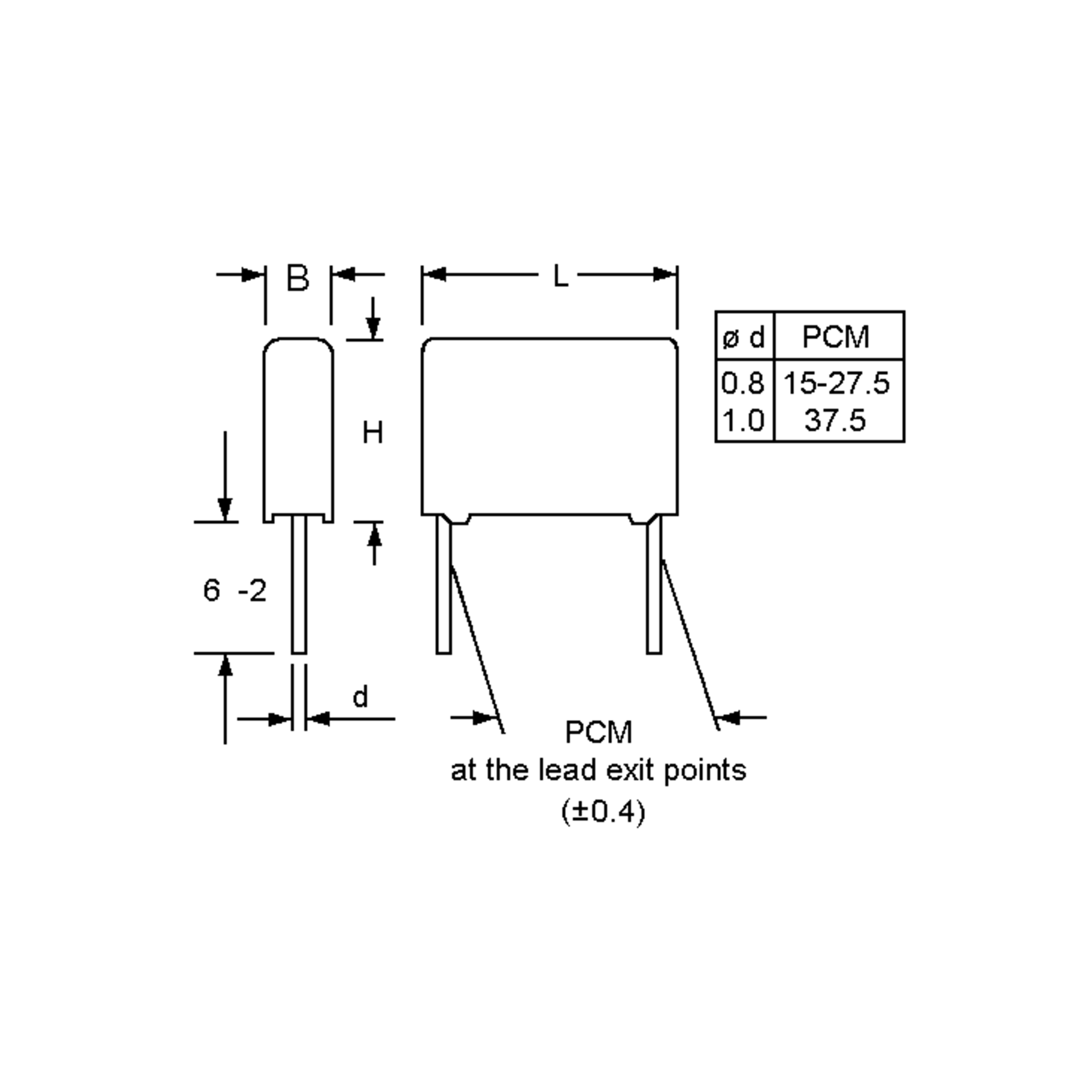

Dimensions and weights
- Dimension: Length
- 31.5 mm
- Dimension: Width
- 13 mm
- Dimension: Height
- 24 mm
- Pitch
- 27.5 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 100 °C
- Climate category IEC
- 55/100/56
Technical features
- Capacity
- 15 nF
- Capacity
- 15
- Capacity unit
- nF
- Capacity tolerance
- 10 %
- Rated voltage DC
- 2,000 V
- Rated voltage AC
- 700 V
- Reliability
- 1 fit
- Service life
- 300.000 h
- Insulation resistance
- 100 GOhm
