DCP4L051006ID2KSSD

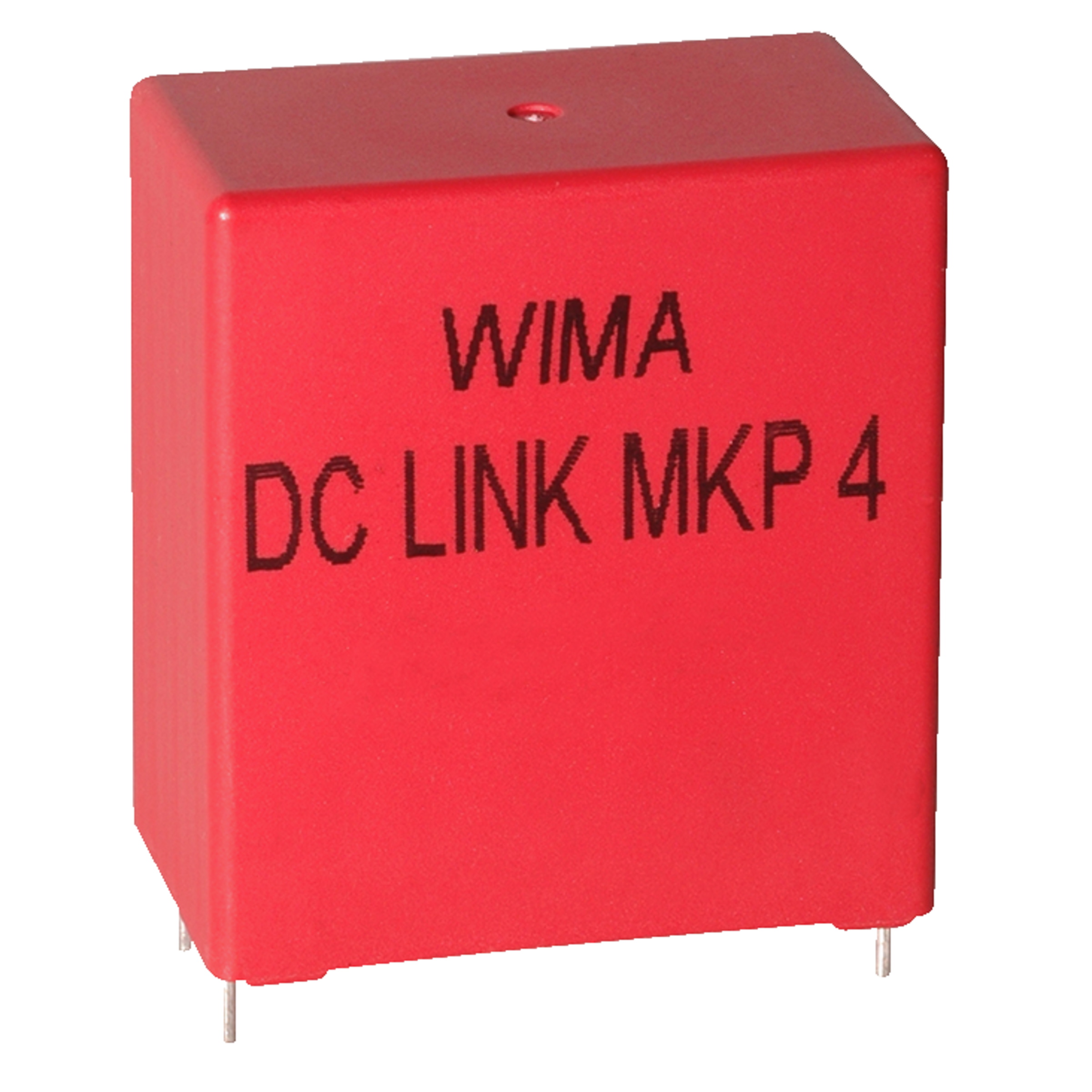

WIMA THT MKP capacitor radial 10µF 800V 10% RM27,5mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
198 Pcs.
198 Pcs.
Planned delivery time
Ø 20 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 198 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 198 or multiple of 198)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- MKP capacitor
- Capacity
- 10 µF
- Capacity tolerance
- 10 %
- Rated voltage DC
- 800 V
- Assembly Type
- THT
- Housing
- radial
- Pitch
- 27.5 mm
- RoHS-Conform
Specifications
Open all

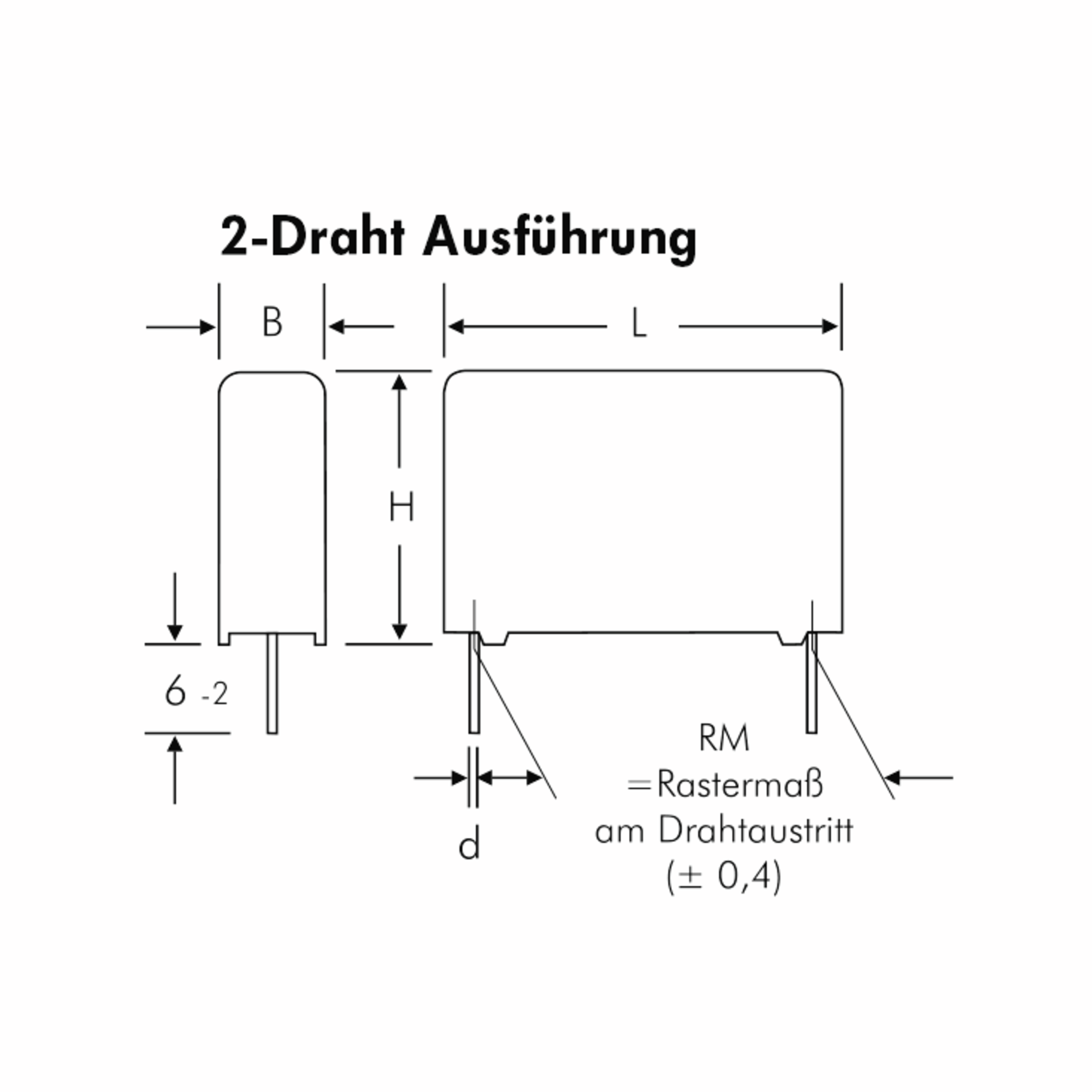

Dimensions and weights
- Dimension: Length
- 31.5 mm
- Dimension: Width
- 17 mm
- Dimension: Height
- 34.5 mm
- Pitch
- 27.5 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 105 °C
- Climate category IEC
- 55/085/56
Technical features
- Capacity
- 10 µF
- Capacity
- 10
- Capacity unit
- µF
- Capacity tolerance
- 10 %
- Rated voltage DC
- 800 V
- Pulse Rise Time
- 29 V/µs
- Service life
- 100.000 h
Safety/Certifications
- Standards
- AEC-Q200
