770-103

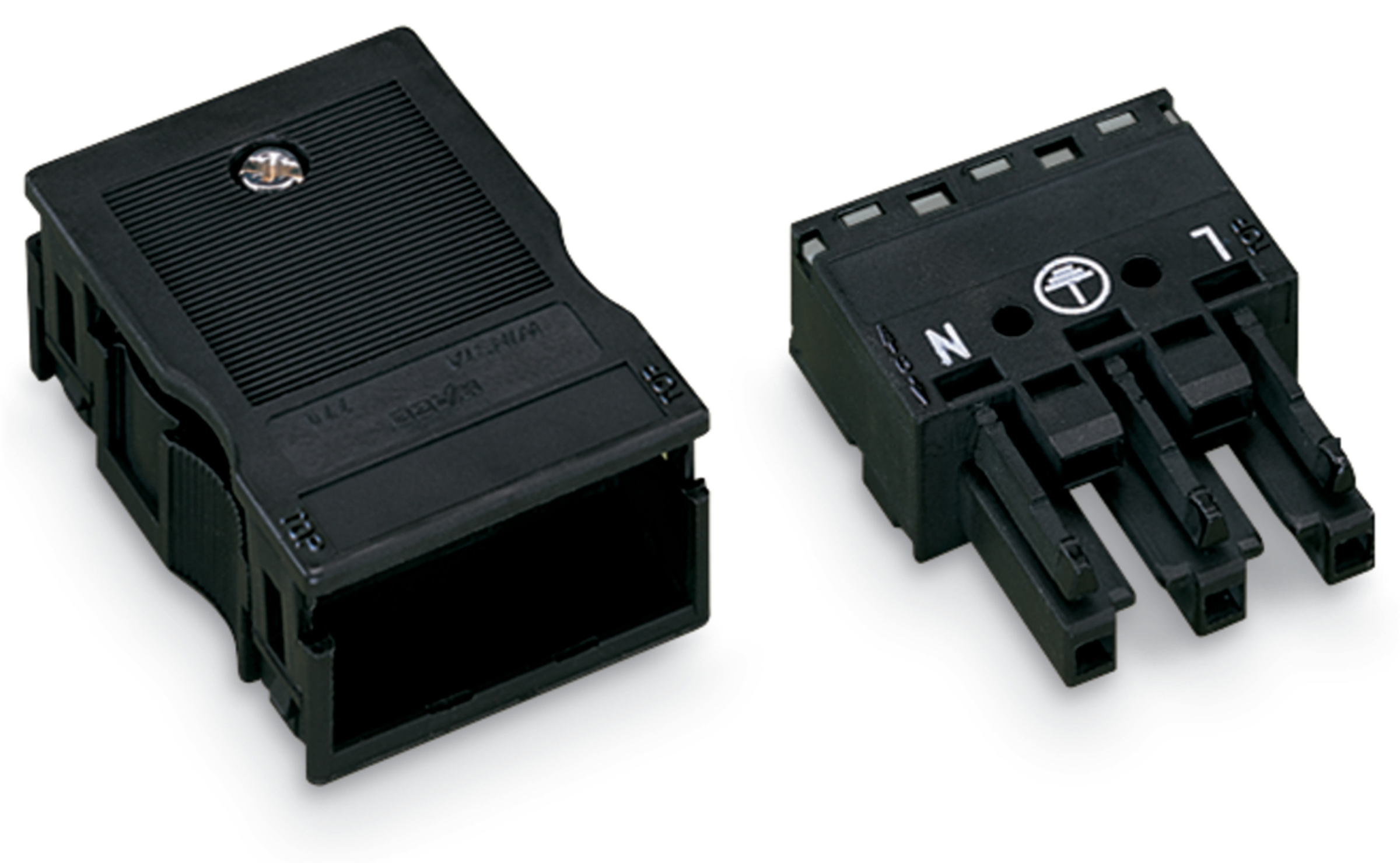

WAGO Socket 770 CAGE CLAMP®|WINSTA® MIDI 3 Pole Polyamide (PA) 66 black Cage clamp
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
40 Pcs. in stock
Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Socket
- Connector Contact
- Cage clamp
- Series
- 770
- Colour
- black
- Housing material
- Polyamide (PA) 66
- Design
- Push-In
- Number of poles
- 3
- Locking
- yes
- Locking Type
- Latching lug
- Operating Temperature Max.
- 85 °C
- Rated voltage AC
- 250 V AC
- Rated current
- 25 A
- Operating Temperature Min.
- -35 °C
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -35 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Rated current
- 25 A
- Rated voltage AC
- 250 V AC
Mechanical Features
- Housing material
- Polyamide (PA) 66
