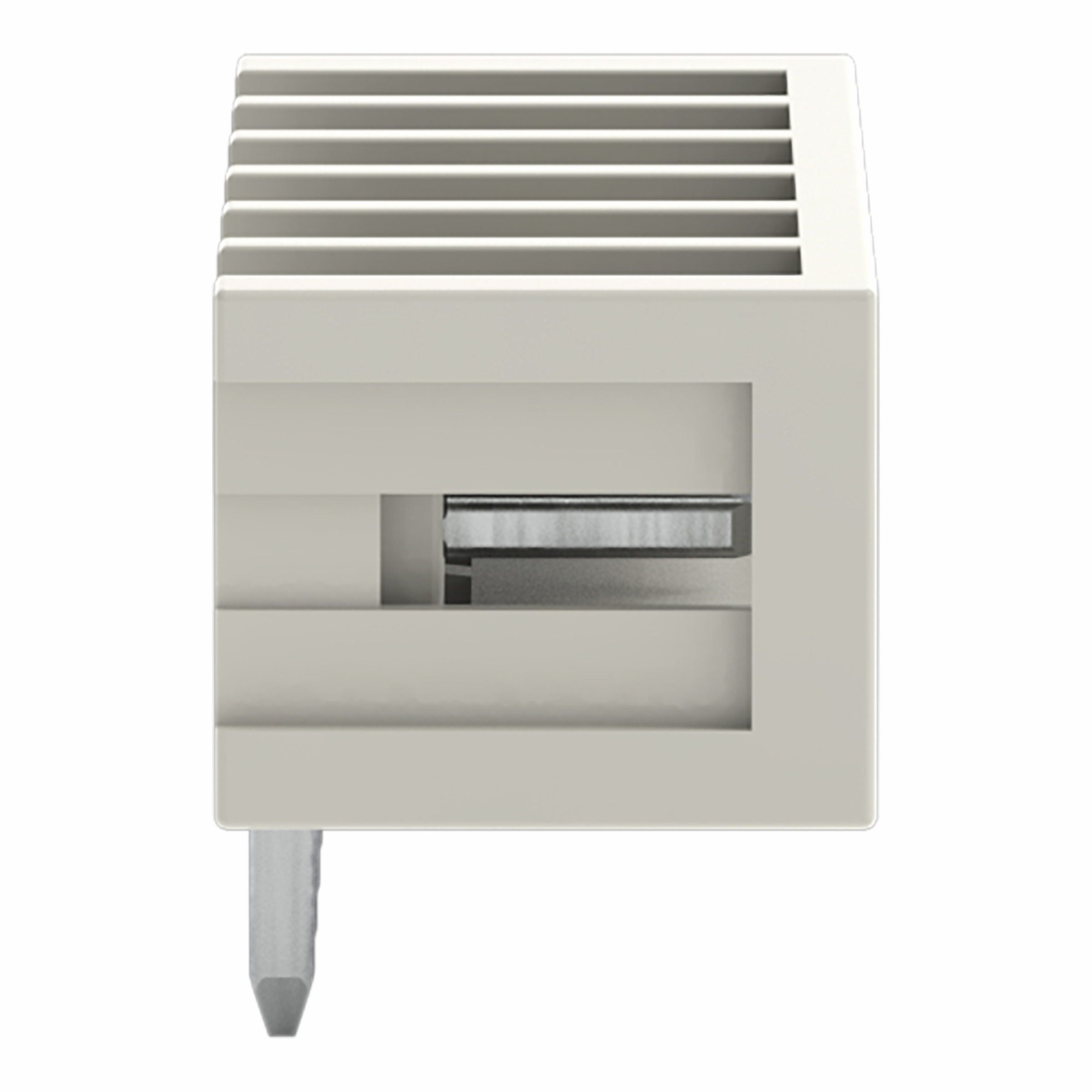

734-162
WAGO Tray pin strip 734 Pin Box Header 1-row angled 2 Pole Pitch3,5mm light gray 160VAC
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
645 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 200 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Pin
- Type
- Tray pin strip
- Connector Contact
- Solder
- Series
- 734
- Colour
- light gray
- Housing material
- Polyamide (PA) 66
- Housing
- 1-row
- Connector Coating
- Tinned
- Specifications
- Box Header
- Number of poles
- 2
- Pitch
- 3.5 mm
- Class of Inflammability
- UL 94 V-0
- Locking
- no
- Alignment
- angled
- Operating Temperature Max.
- 100 °C
- Rated voltage AC
- 160 V AC

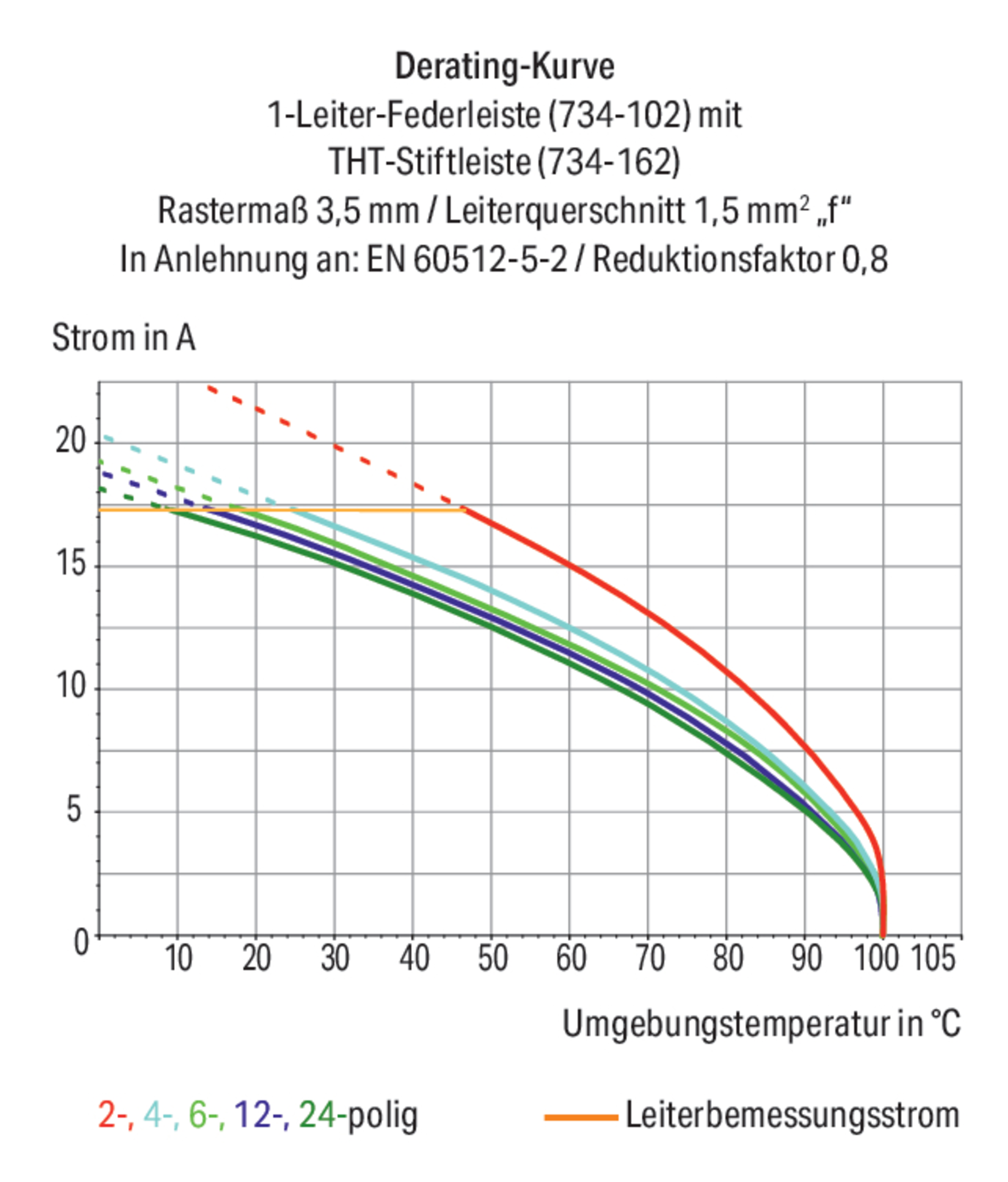

- Rated current
- 10 A
- Operating Temperature Min.
- -60 °C
- RoHS-Conform
