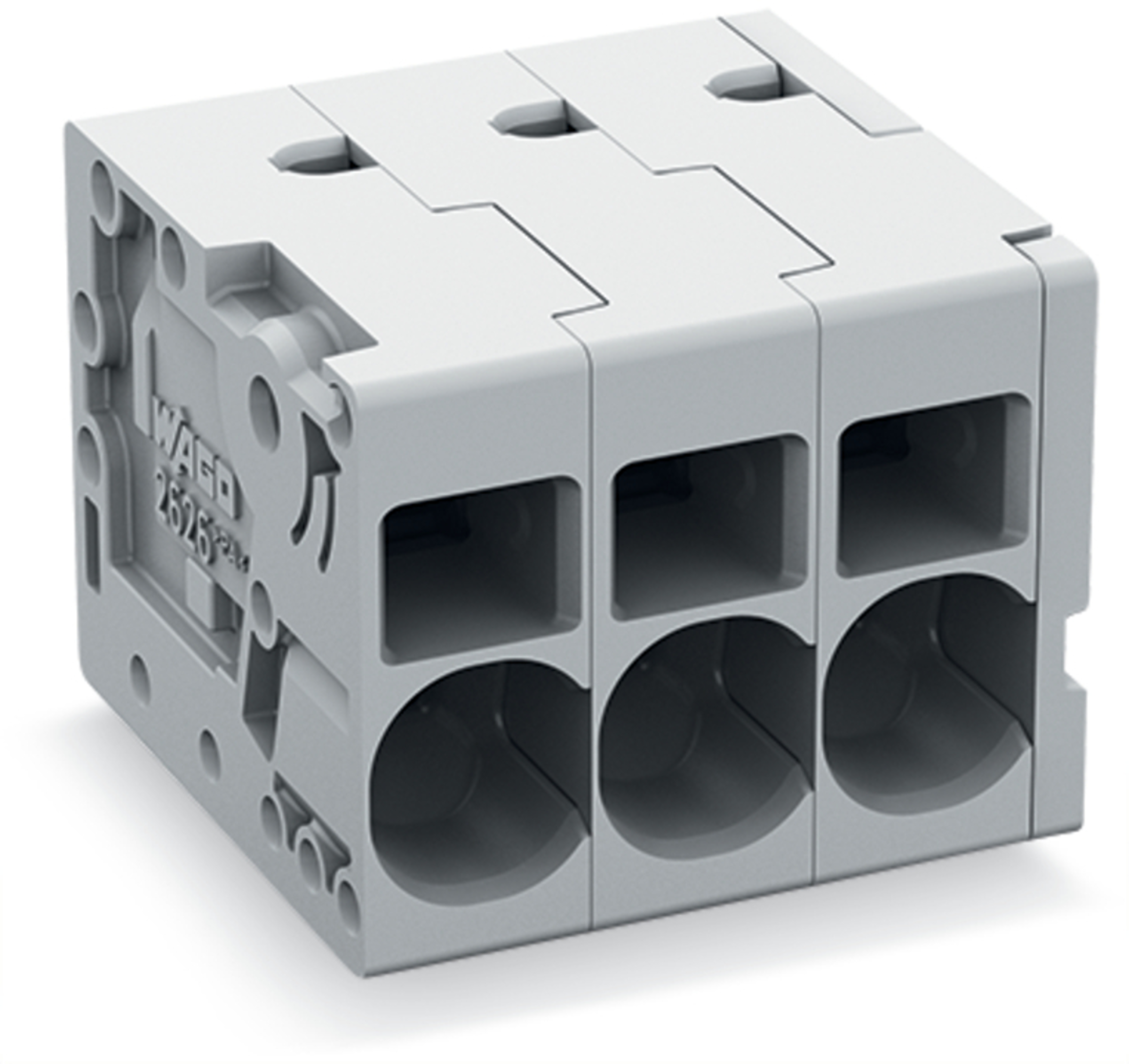

2626-1103/020-000
WAGO Terminal block 2626 horizontal 3 Pole Pitch7,5mm gray Solder 24,3mm 23,6mm 24AWG 8AWG 48A 1.000VAC
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
192 Pcs. in stock
Planned delivery time
Ø 5 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 64 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 4 or multiple of 4)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Terminal block
- Connector Contact
- Solder
- Series
- 2626
- Colour
- gray
- Housing material
- Polyamide (PA) 66
- Design
- Push-in Cage clamp
- Number of poles
- 3
- Standards
- C 22.2
C 22.2 No. 158
EN 60947-7-4
IEC 60947-7-4
UL 1059 - Pitch
- 7.5 mm
- Class of Inflammability
- UL 94 V-0
- Locking
- no
- Alignment
- horizontal
- Operating Temperature Max.
- 105 °C
- Rated voltage AC
- 1,000 V AC
- Rated current
- 48 A
- Operating Temperature Min.
- -60 °C
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Width
- 24.3 mm
- Dimension: Height
- 23.6 mm
- Dimension: Depth
- 24.2 mm
- Pitch
- 7.5 mm
- Weight
- 12 g
- Stripping length, min.
- 11 mm
- Stripping length, max.
- 13 mm
- Conductor cross-section (AWG), min.
- 24 AWG
- Conductor cross-section (AWG), max.
- 8 AWG
- Nominal cross-section, solid, min.
- 0.2 mm²
- Nominal cross-section, solid, max.
- 10 mm²
- Nominal cross-section finely stranded, min.
- 0.2 mm²
- Nominal cross-section finely stranded, max.
- 10 mm²
Operating conditions
- Operating Temperature Min.
- -60 °C
- Operating Temperature Max.
- 105 °C
Technical Features
- Rated current
- 48 A
- Rated voltage AC
- 1,000 V AC
Mechanical Features
- Drilling Dimensions
- 2 mm
- Housing material
- Polyamide (PA) 66
Safety/Certifications
- Approvals
- CSA
- IEC
- KEMA/KEUR
- cURus
- Standards
- C 22.2
- C 22.2 No. 158
- EN 60947-7-4
- IEC 60947-7-4
- UL 1059
- Class of Inflammability
- UL 94 V-0
