2273-203

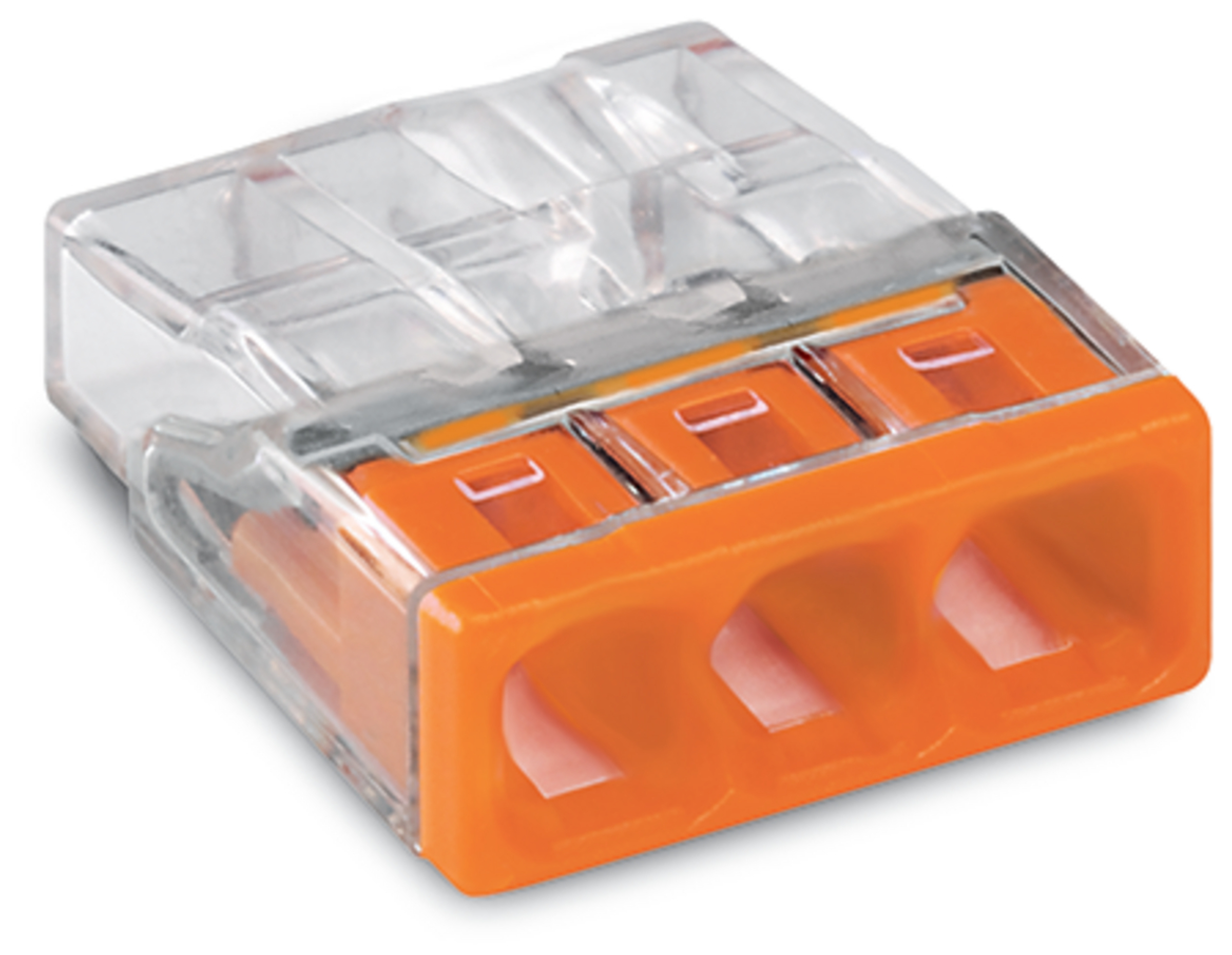

WAGO Connecting terminal 2273 PUSH WIRE® 3 Pole Polycarbonat (PC) transparent
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
445 Pcs. in stock
Next Stock Receipt
Week 19/2026
300 Pcs.
300 Pcs.
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Connecting terminal
- Series
- 2273
- Colour
- transparent
- Housing material
- Polycarbonat (PC)
- Design
- Push-In
- Number of poles
- 3
- Locking
- no
- Operating Temperature Max.
- 60 °C
- Rated voltage AC
- 450 V AC
- Rated current
- 24 A
- RoHS-Conform
Specifications
Open all

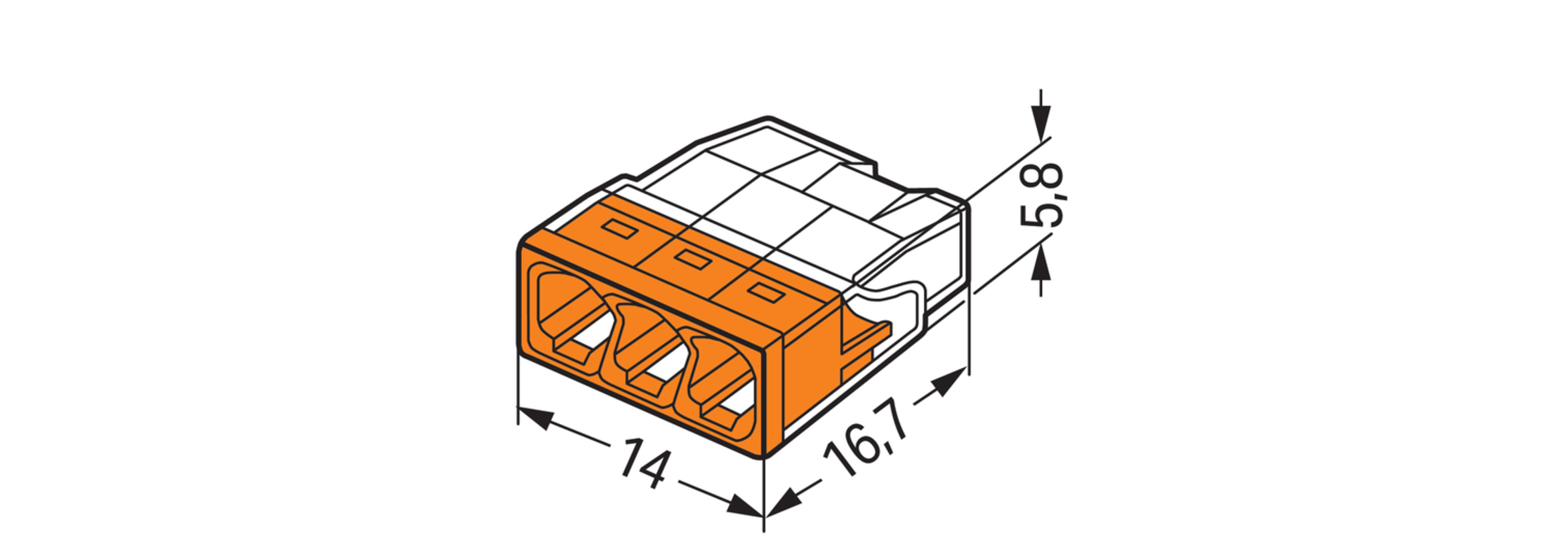

Dimensions and Weights
- Dimension: Length
- 14 mm
- Dimension: Height
- 5.8 mm
- Dimension: Depth
- 16.7 mm
- Stripping length, max.
- 11 mm
- Nominal cross-section, solid, min.
- 0.5 mm²
- Nominal cross-section, solid, max.
- 2.5 mm²
Operating conditions
- Operating Temperature Max.
- 60 °C
Technical Features
- Rated current
- 24 A
- Rated voltage AC
- 450 V AC
Mechanical Features
- Housing material
- Polycarbonat (PC)
