221-615

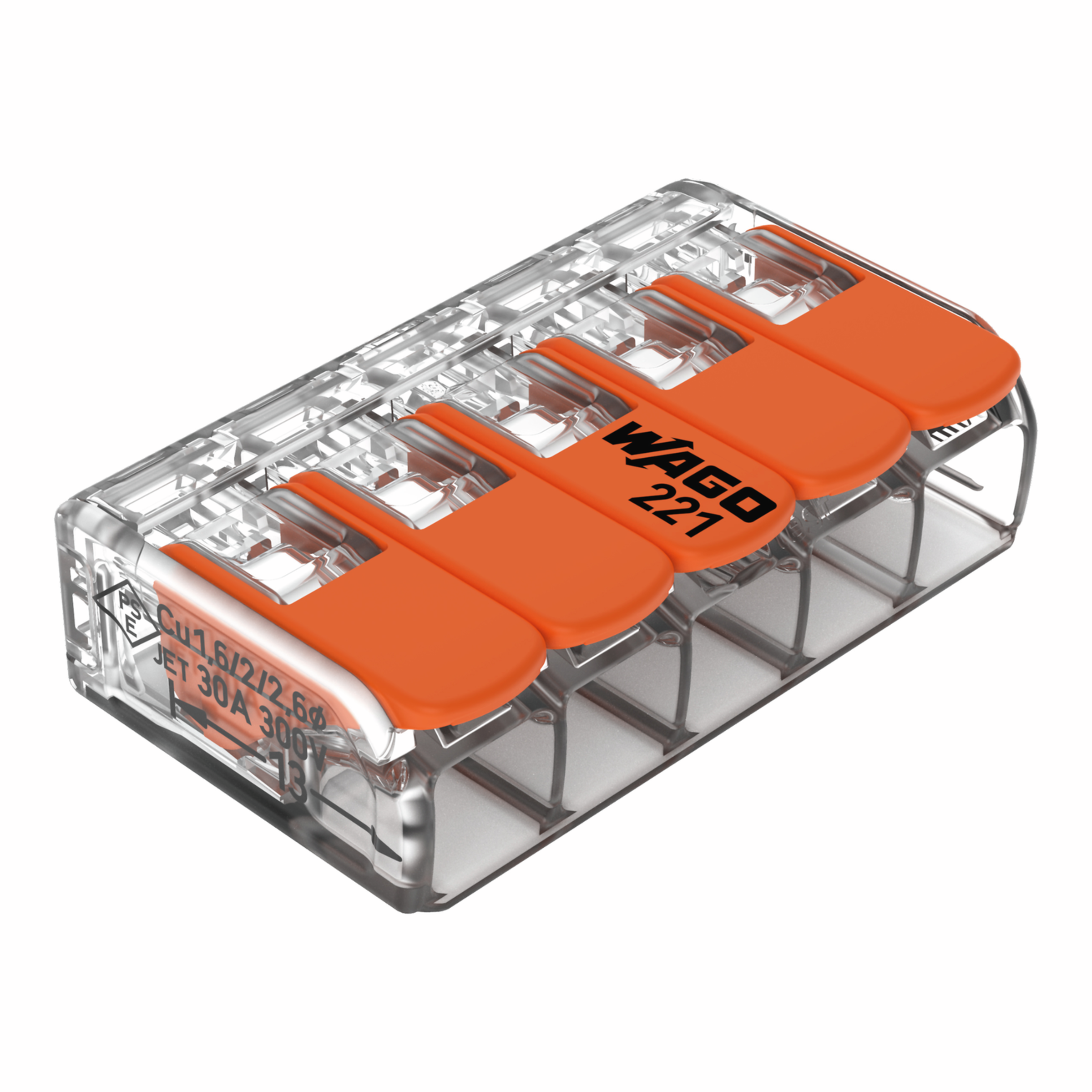

WAGO Connecting terminal 221 CAGE CLAMP® 5 Pole Polycarbonat (PC) transparent Cage Clamp
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
95 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 150 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Connecting terminal
- Connector Contact
- Cage Clamp
- Series
- 221
- Colour
- transparent
- Housing material
- Polycarbonat (PC)
- Housing
- 1-row
- Design
- Spring force principle
- Number of poles
- 5
- Standards
- EN 60998
IEC 60998
UL 467
UL 486C - Class of Inflammability
- UL 94 V-2
- Locking
- no
- Operating Temperature Max.
- 85 °C
- Rated voltage AC
- 450 V AC
- Rated current
- 41 A
- RoHS-Conform
Specifications
Open all

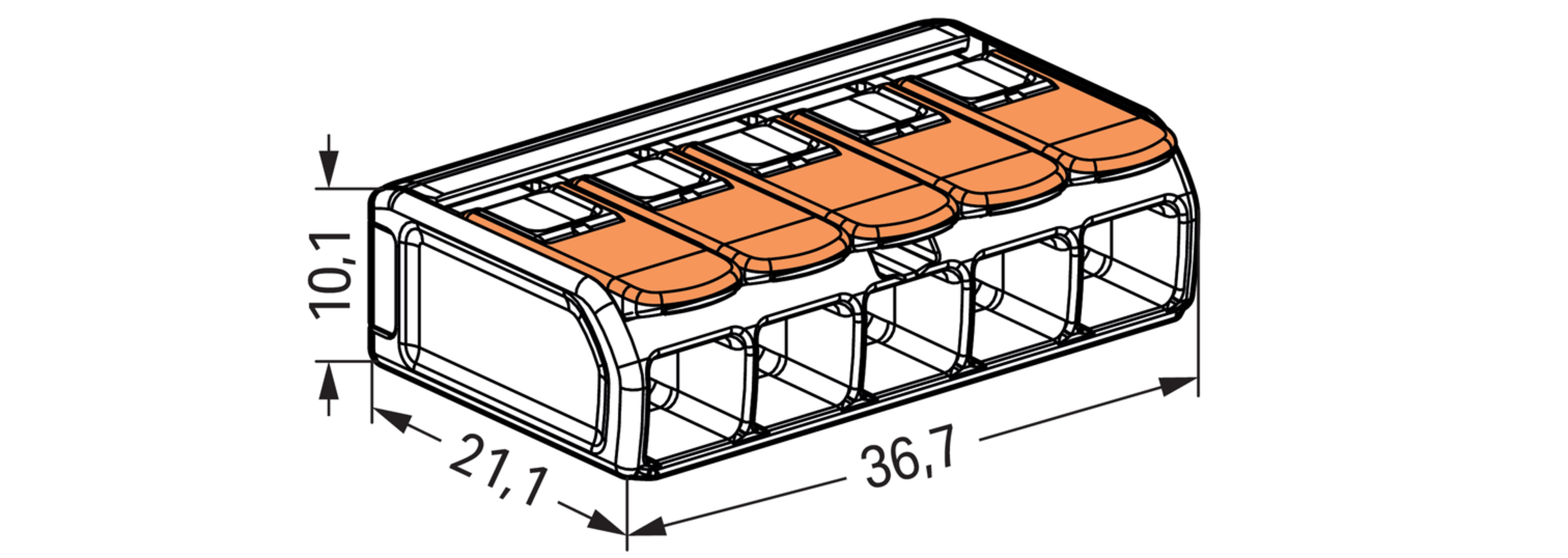

Dimensions and Weights
- Dimension: Width
- 36.7 mm
- Dimension: Height
- 10.1 mm
- Dimension: Depth
- 21.1 mm
- Weight
- 7.1 g
- Stripping length, min.
- 12 mm
- Stripping length, max.
- 14 mm
- Nominal cross-section, solid, min.
- 0.5 mm²
- Nominal cross-section, solid, max.
- 6 mm²
- Nominal cross-section finely stranded, min.
- 0.5 mm²
- Nominal cross-section finely stranded, max.
- 6 mm²
Operating conditions
- Operating Temperature Max.
- 85 °C
Technical Features
- Rated current
- 41 A
- Rated voltage AC
- 450 V AC
Mechanical Features
- Housing material
- Polycarbonat (PC)
Safety/Certifications
- Approvals
- CB
- ENEC 05
- cULus
- Standards
- EN 60998
- IEC 60998
- UL 467
- UL 486C
- Class of Inflammability
- UL 94 V-2
Documents
221.pdf
WAGO Änderungsmitteilung - Serie 221.pdf
