2092-1102/002-000

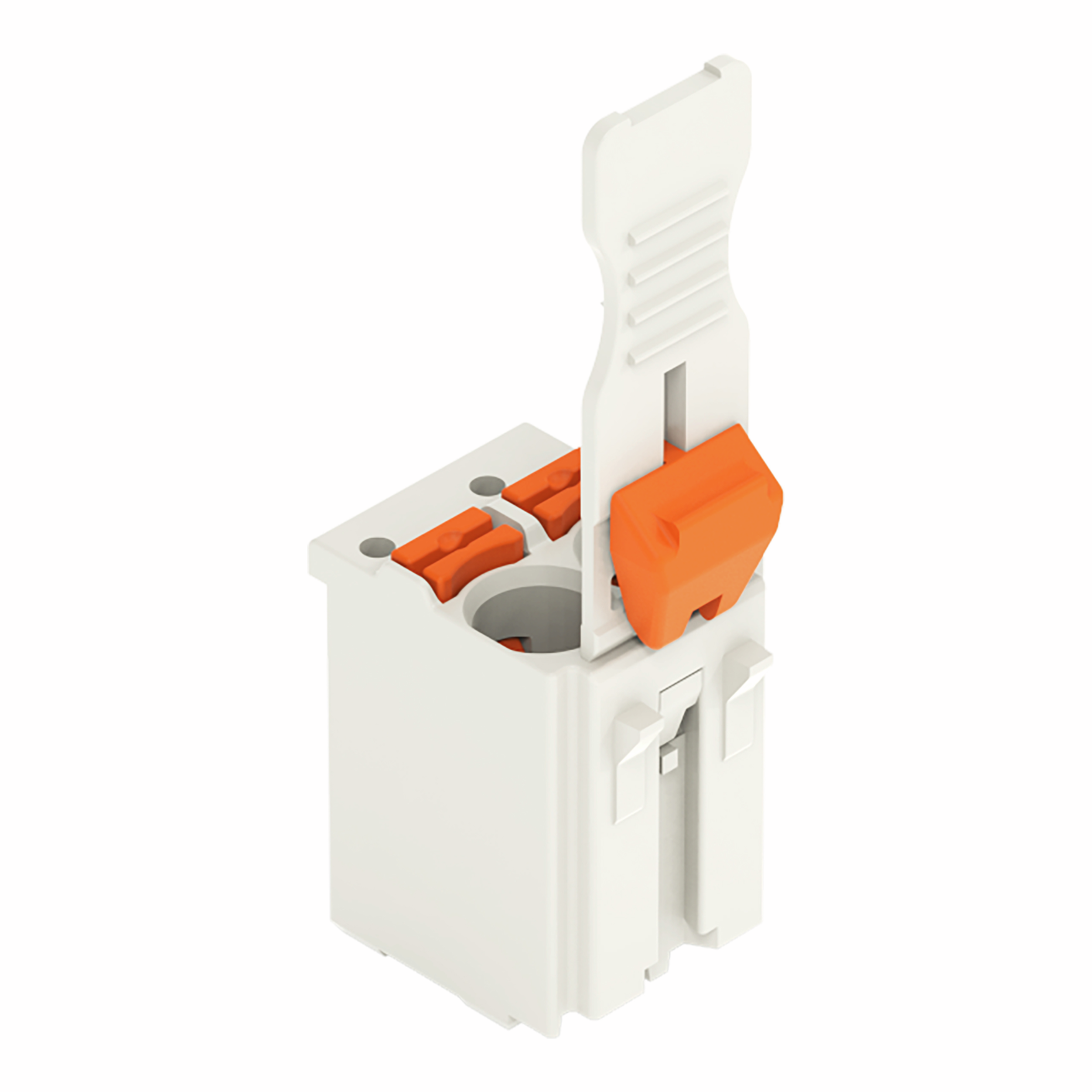

WAGO Female connector 2092 Spring Header Latching lug 1-row straight 2 Pole Pitch5mm light gray 320VAC

2092-1102/002-0002092-1102/002-0002092-1102/002-000
Manufacturer Part No.
2092-1102/002-000
Schukat Part No.
2092-1102/002-000
Manufacturer
WAGO
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

1.100 Pcs. in stock

Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Contact Type
Spring
Type
Female connector
Connector Contact
Cage clamp
Series
2092
Colour
light gray
Housing material
Polyphthalamid (PPA) GF
Housing
1-row
Design
Header
Number of poles
2
Pitch
5 mm
Class of Inflammability
UL 94 V-0
Locking
yes
Alignment
straight
Locking Type
Latching lug
Operating Temperature Max.
100 °C
Rated voltage AC
320 V AC
Rated current
16 A
Operating Temperature Min.
-60 °C
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • WAGO
Product Family
  • CAGE CLAMP®|picoMAX®
Type
  • Female connector
Series
  • 2092
Product group
  • L9962
Housing
  • 1-row
Contact Type
  • Spring
Connector Contact
  • Cage clamp
Number of poles
  • 2
Strain Relief
  • no
Alignment
  • straight
Design
  • Header
Protective conductor
Colour
  • light gray
Locking
  • yes
Locking Type
  • Latching lug

Dimensions and Weights

Pitch
  • 5 mm
Conductor cross-section (AWG), min.
  • 24 AWG
Conductor cross-section (AWG), max.
  • 12 AWG
Nominal cross-section, solid, min.
  • 0.2 mm²
Nominal cross-section, solid, max.
  • 2.5 mm²
Nominal cross-section finely stranded, min.
  • 0.2 mm²
Nominal cross-section finely stranded, max.
  • 2.5 mm²

Operating conditions

Operating Temperature Min.
  • -60 °C
Operating Temperature Max.
  • 100 °C

Technical Features

Rated current
  • 16 A
Rated voltage AC
  • 320 V AC
Test voltage
  • 4,000 V AC

Mechanical Features

Housing material
  • Polyphthalamid (PPA) GF
Contact Surface Input
  • verzinnt

Safety/Certifications

Class of Inflammability
  • UL 94 V-0
