2091-1108/002-000

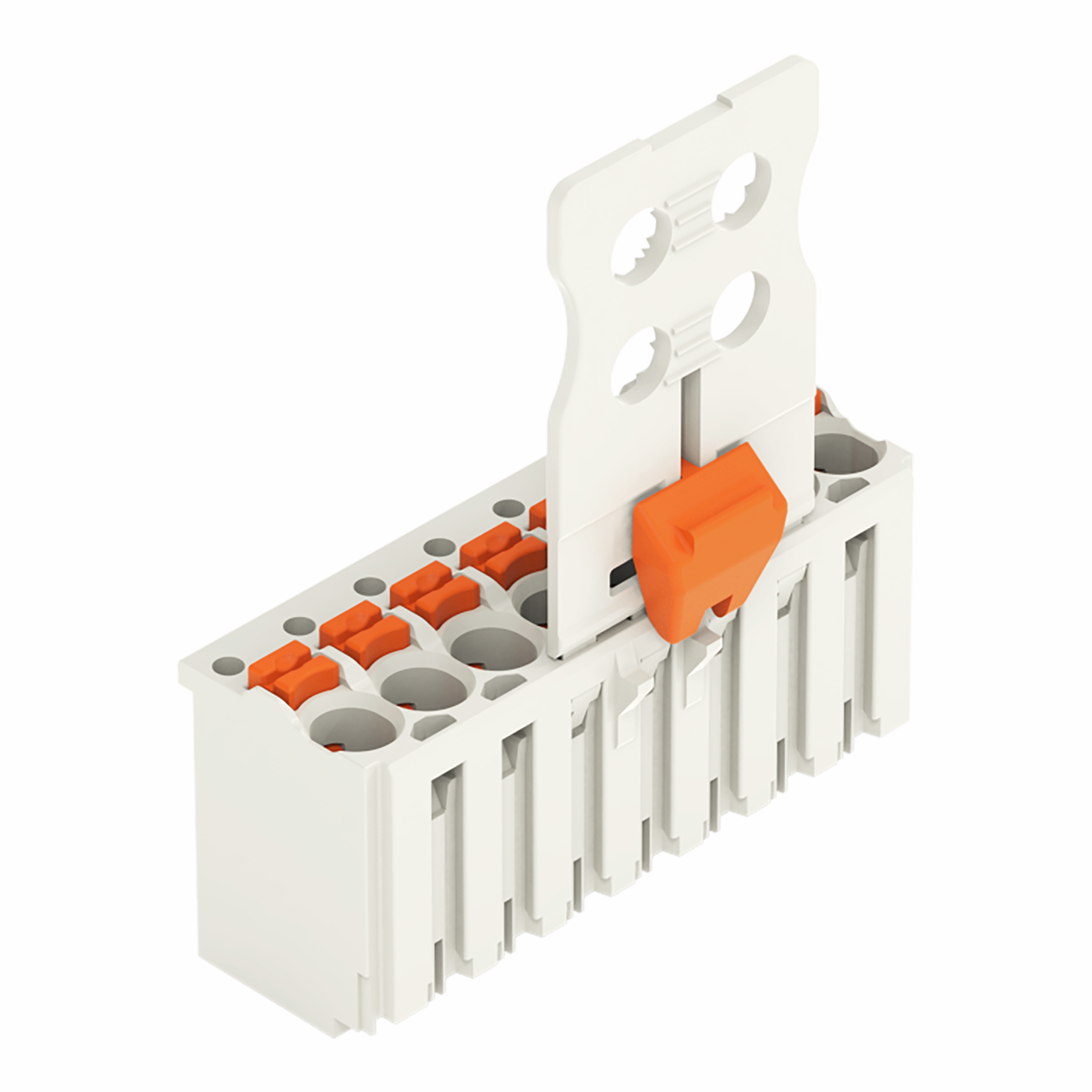

WAGO PCB connector 2091 Spring Header Latching lug 1-row vertical 8 Pole Pitch3,5mm light gray 160VAC
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
750 Pcs. in stock
Planned delivery time
Ø 7 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Spring
- Type
- PCB connector
- Connector Contact
- Cage clamp
- Series
- 2091
- Colour
- light gray
- Housing material
- Polyphthalamid (PPA) GF
- Housing
- 1-row
- Design
- Header
- Number of poles
- 8
- Pitch
- 3.5 mm
- Class of Inflammability
- UL 94 V-0
- Locking
- yes
- Alignment
- vertical
- Locking Type
- Latching lug
- Operating Temperature Max.
- 100 °C
- Rated voltage AC
- 160 V AC
- Rated current
- 10 A
- Operating Temperature Min.
- -60 °C
- RoHS-Conform
Specifications
Open all

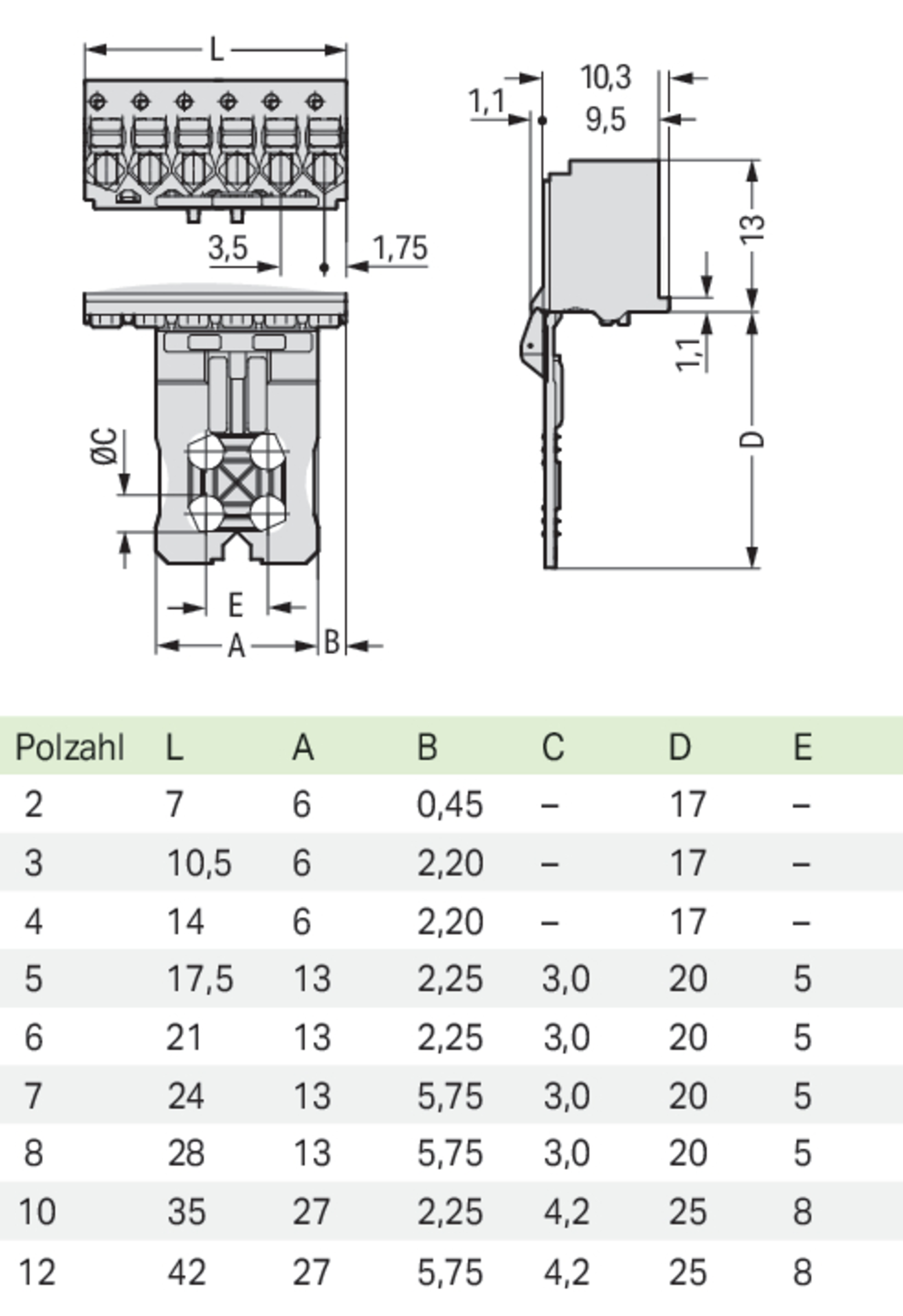

Dimensions and Weights
- Dimension: Length
- 28 mm
- Pitch
- 3.5 mm
- Stripping length, min.
- 8 mm
- Stripping length, max.
- 9 mm
- Conductor cross-section (AWG), min.
- 24 AWG
- Conductor cross-section (AWG), max.
- 14 AWG
- Nominal cross-section, solid, min.
- 0.2 mm²
- Nominal cross-section, solid, max.
- 1.5 mm²
- Nominal cross-section finely stranded, min.
- 0.2 mm²
- Nominal cross-section finely stranded, max.
- 1.5 mm²
Operating conditions
- Operating Temperature Min.
- -60 °C
- Operating Temperature Max.
- 100 °C
Technical Features
- Rated current
- 10 A
- Rated voltage AC
- 160 V AC
- Test voltage
- 2,500 V AC
Mechanical Features
- Housing material
- Polyphthalamid (PPA) GF
- Contact Surface Input
- verzinnt
Safety/Certifications
- Class of Inflammability
- UL 94 V-0
