2075-381/997-404

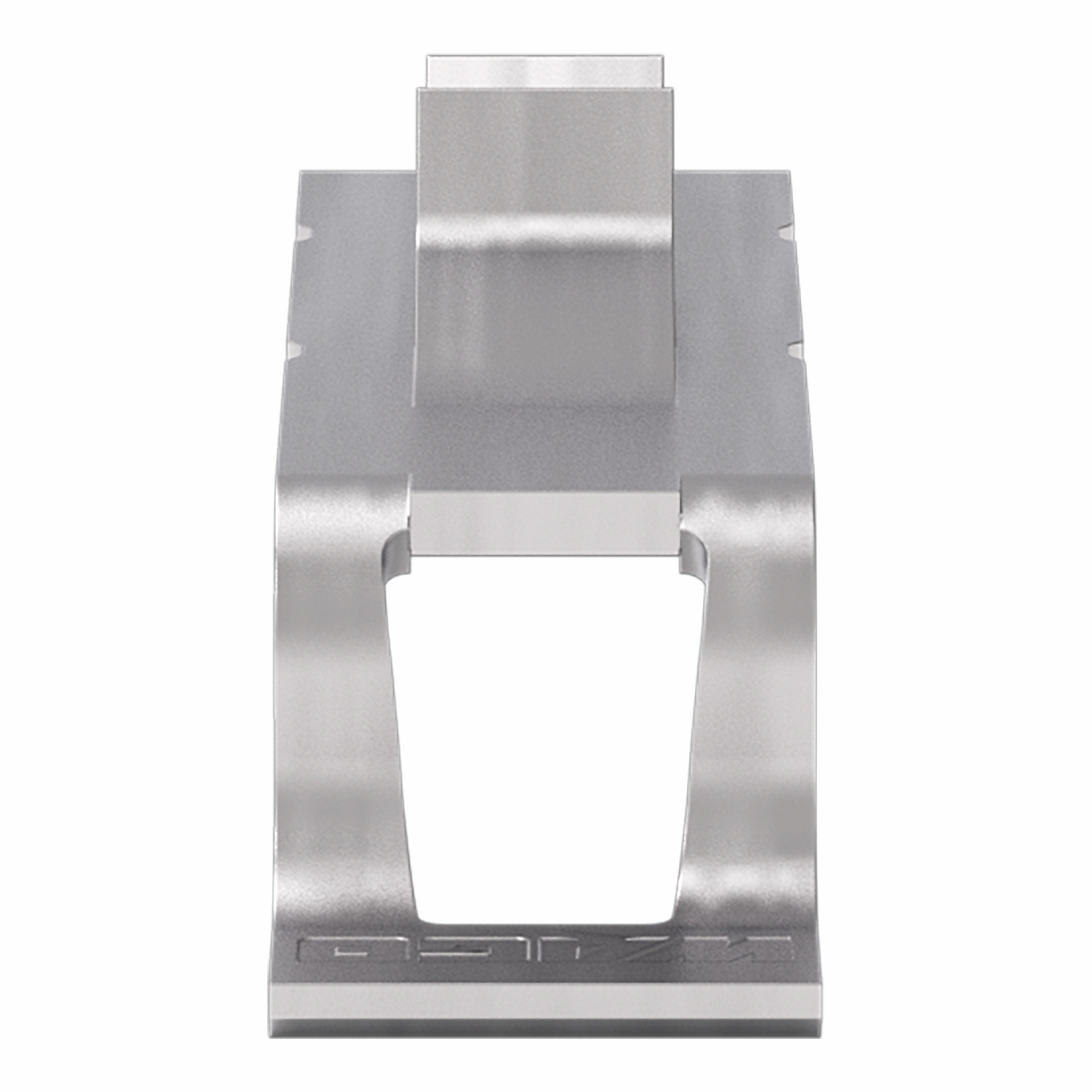

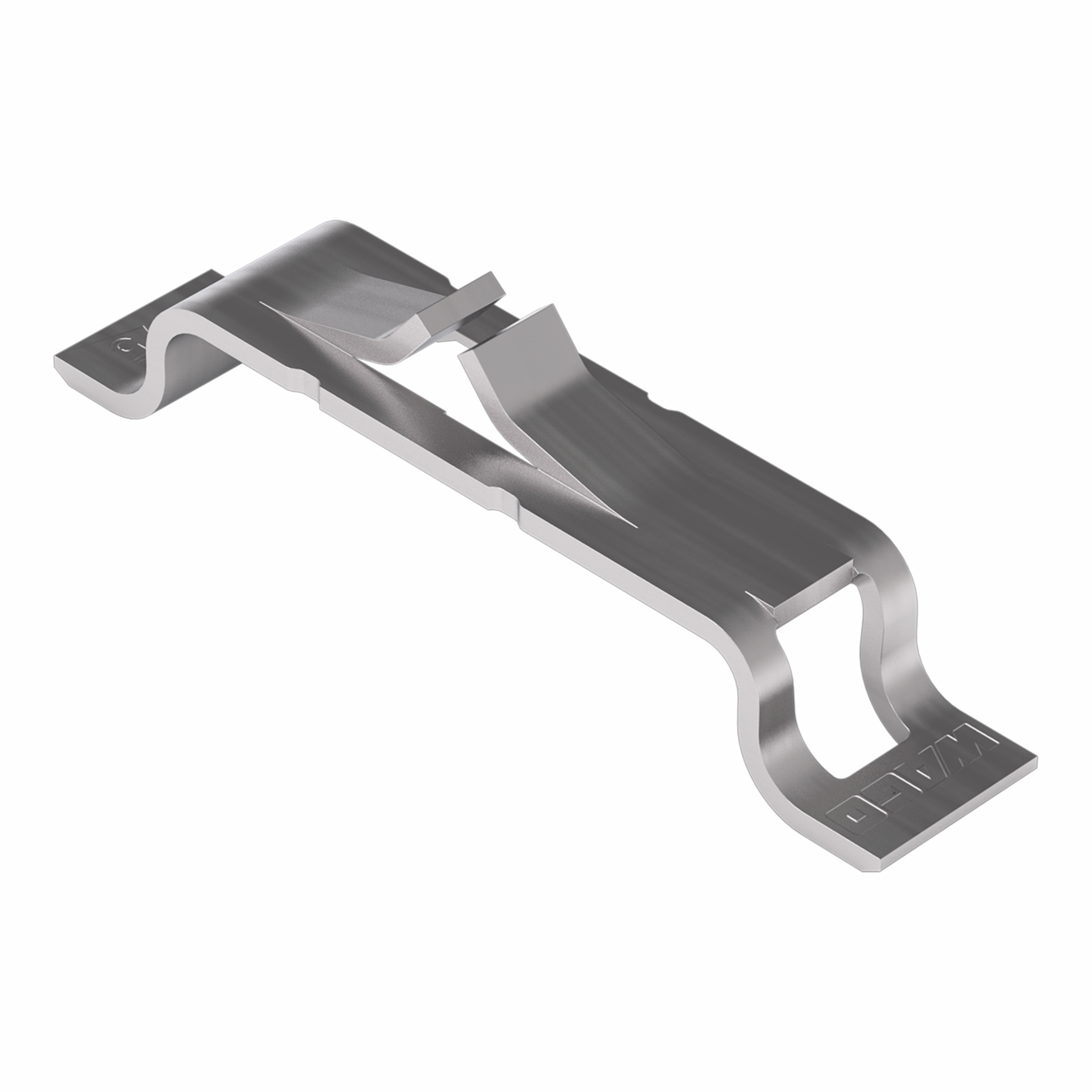

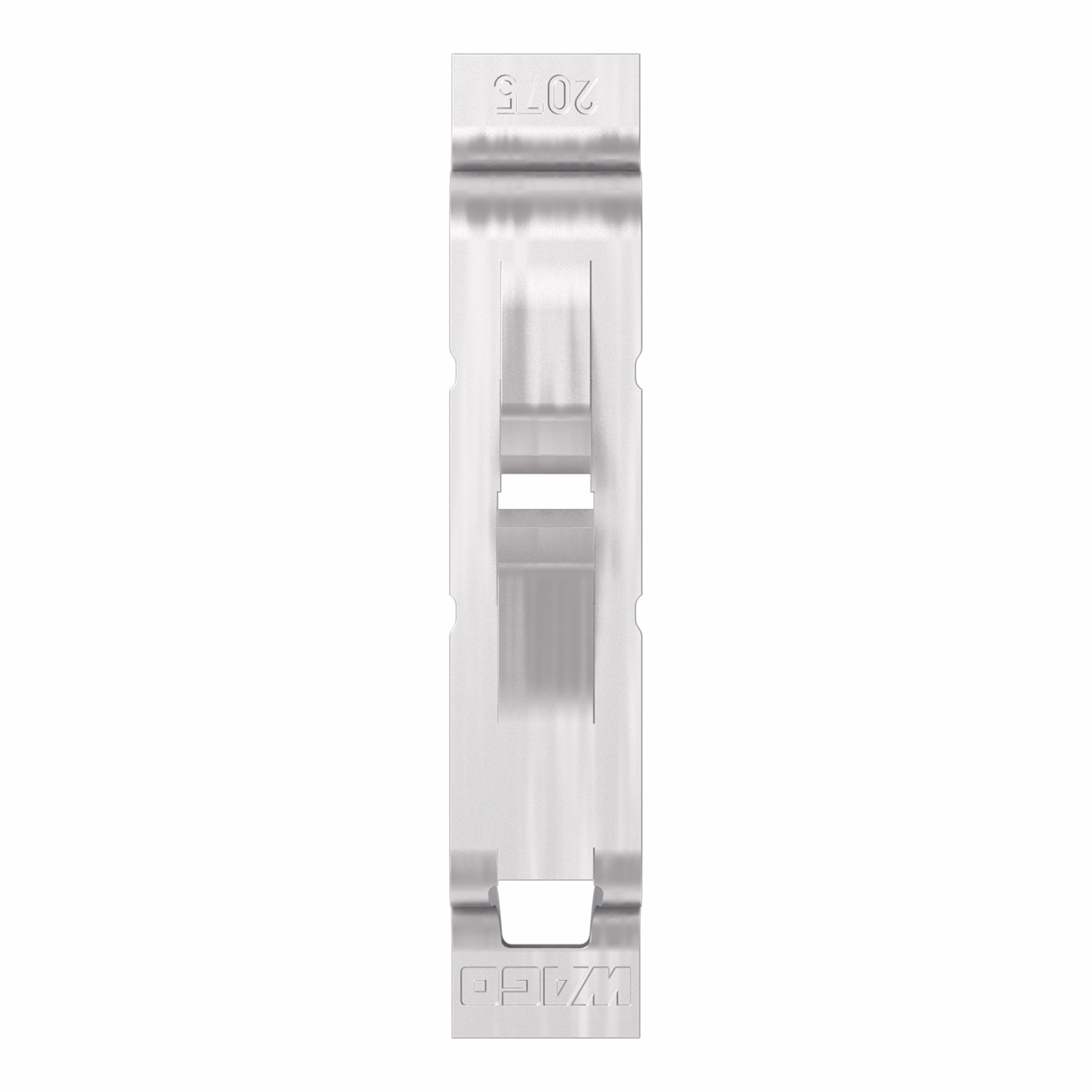

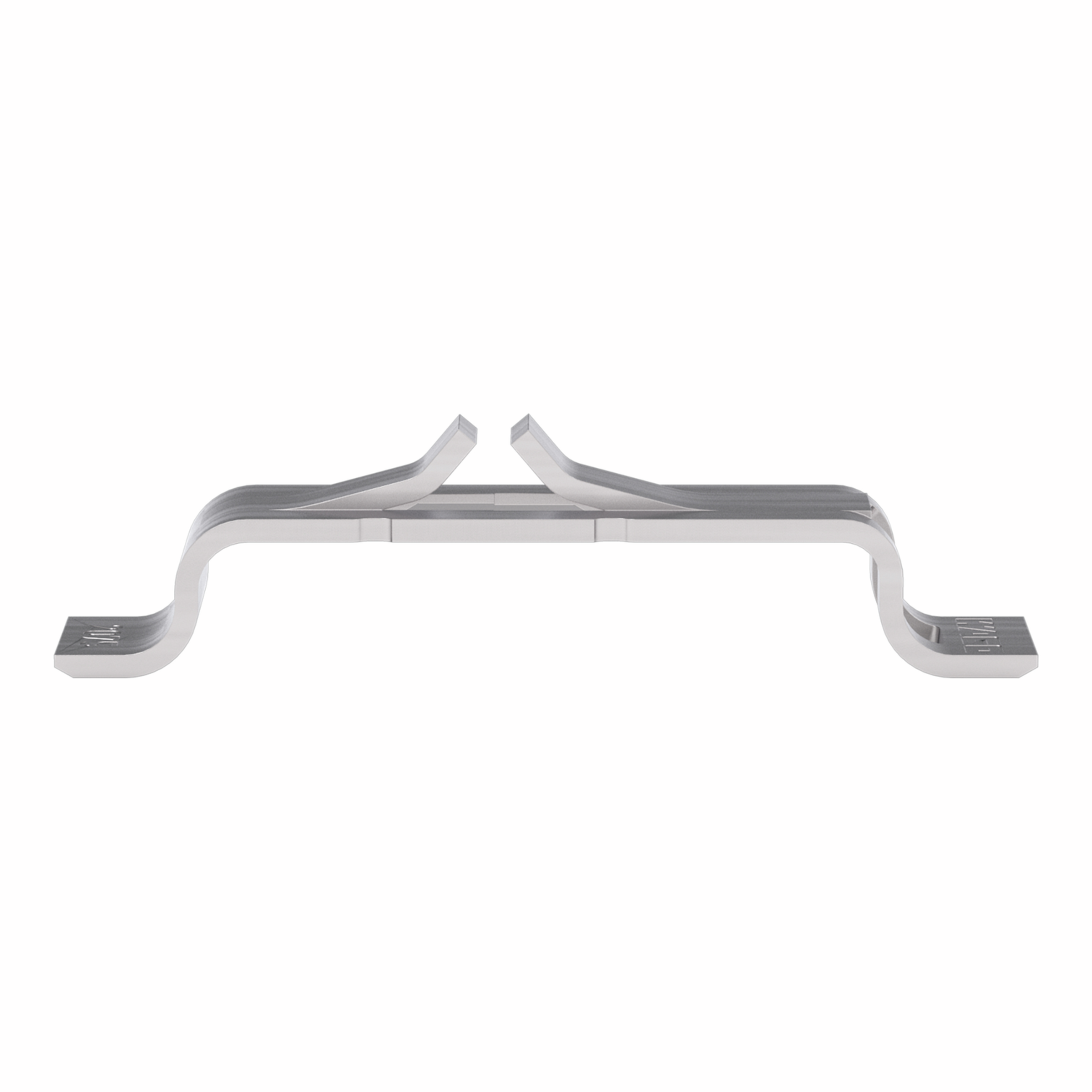

WAGO Terminal block 2075 90° 1 Pole Pitch3mm SMD 3mm 3,9mm 20AWG 18AWG 9A 500VAC

2075-381/997-4042075-381/997-4042075-381/997-4042075-381/997-404
Manufacturer Part No.
2075-381/997-404
Schukat Part No.
2075-381/997-404
Manufacturer
WAGO
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

1.500 Pcs. in stock

Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 2000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Terminal block
Connector Contact
SMD
Series
2075
Design
Push wire
Number of poles
1
Standards
EN 60998
IEC 60998
UL 1977
Pitch
3 mm
Class of Inflammability
UL 94 V-0
Locking
no
Alignment
90°
Operating Temperature Max.
105 °C
Rated voltage AC
500 V AC
Rated current
9 A
Operating Temperature Min.
-60 °C
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • WAGO
Product Family
  • PUSH WIRE®
Type
  • Terminal block
Series
  • 2075
Product group
  • F9213
Actuation
  • without actuating lever
Connector Contact
  • SMD
Suitable cables
  • solid
Number of poles
  • 1
Alignment
  • 90°
Design
  • Push wire
Protective conductor
Locking
  • no

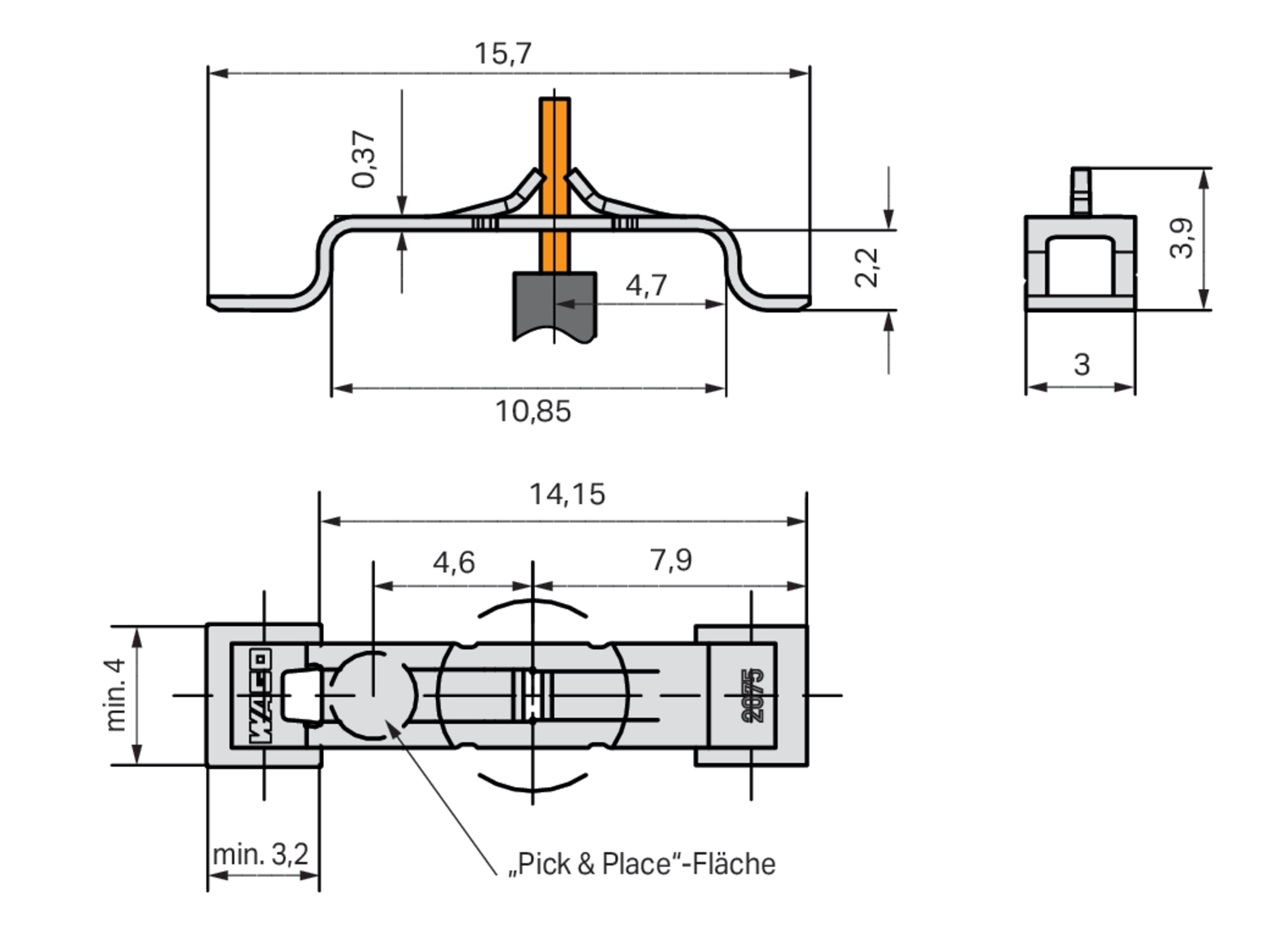

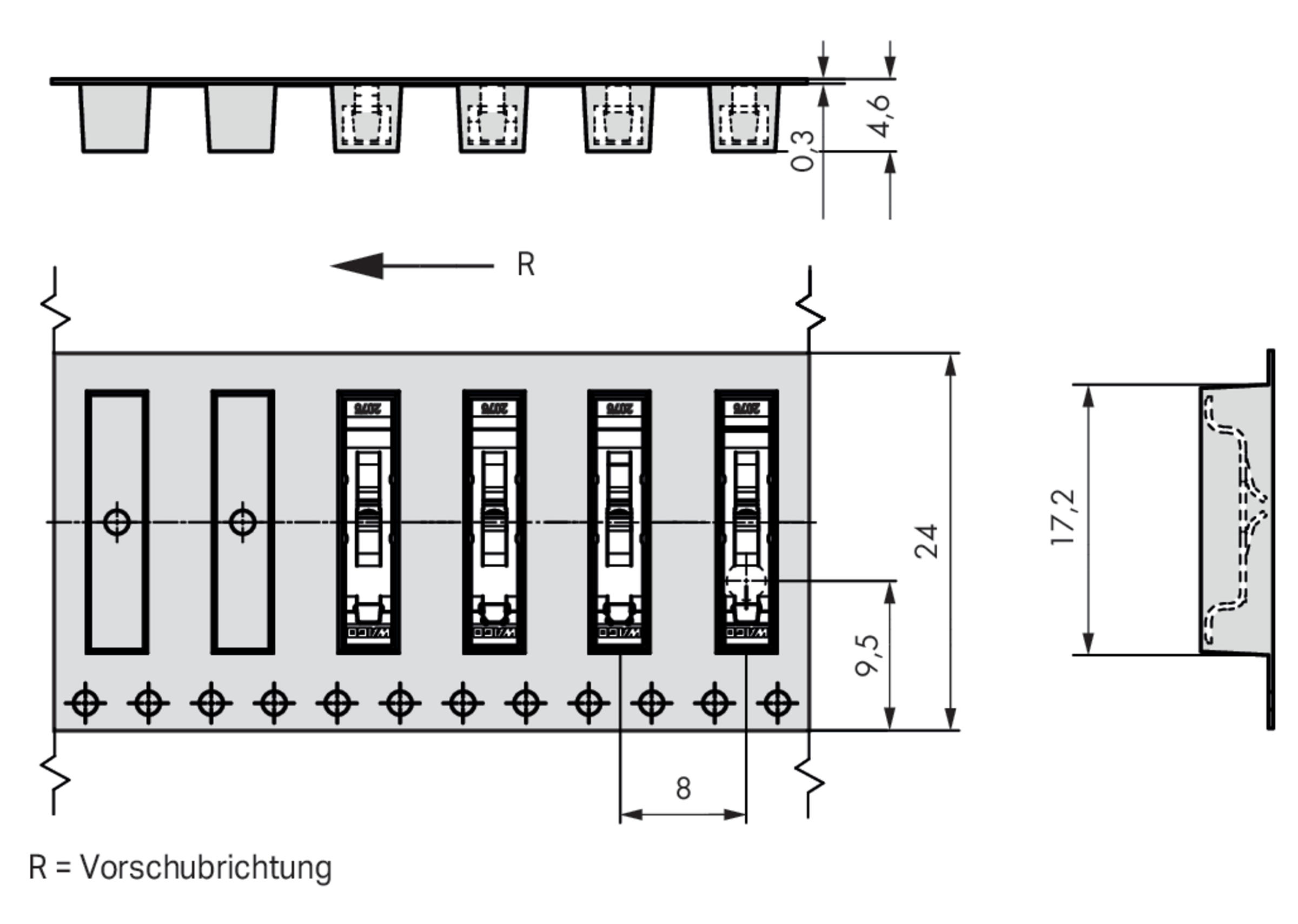

Dimensions and Weights

Dimension: Width
  • 3 mm
Dimension: Height
  • 3.9 mm
Dimension: Depth
  • 17.5 mm
Pitch
  • 3 mm
Weight
  • 0.2 g
Stripping length, max.
  • 3.7 mm
Conductor cross-section (AWG), min.
  • 20 AWG
Conductor cross-section (AWG), max.
  • 18 AWG
Nominal cross-section, solid, min.
  • 0.34 mm²
Nominal cross-section, solid, max.
  • 0.75 mm²

Operating conditions

Operating Temperature Min.
  • -60 °C
Operating Temperature Max.
  • 105 °C

Technical Features

Rated current
  • 9 A
Rated voltage AC
  • 500 V AC

Safety/Certifications

Approvals
  • CB
  • KEMA/KEUR
  • cURus
Standards
  • EN 60998
  • IEC 60998
  • UL 1977
Class of Inflammability
  • UL 94 V-0
