2065-101/998-403

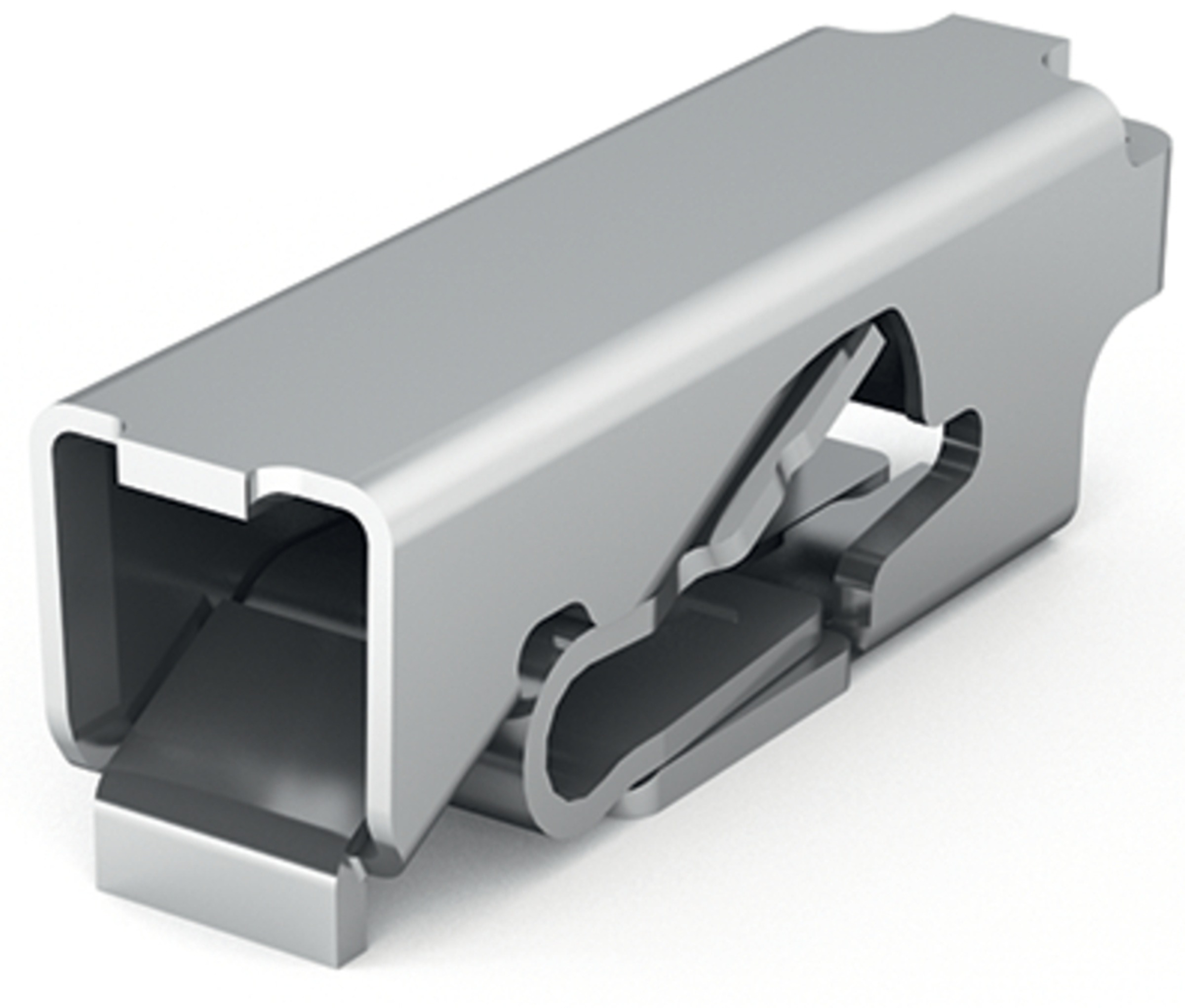

WAGO Terminal block 2065 horizontal 1 Pole Pitch6mm SMD 2,3mm 2,7mm 24AWG 18AWG 9A 320VAC
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
840 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 2650 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Terminal block
- Connector Contact
- SMD
- Series
- 2065
- Design
- Push wire
- Number of poles
- 1
- Standards
- EN 60947-7-4
EN 60998
IEC 60998
UL 1977 - Pitch
- 6 mm
- Locking
- no
- Alignment
- horizontal
- Operating Temperature Max.
- 120 °C
- Rated voltage AC
- 320 V AC
- Rated current
- 9 A
- Operating Temperature Min.
- -60 °C
- RoHS-Conform
Specifications
Open all

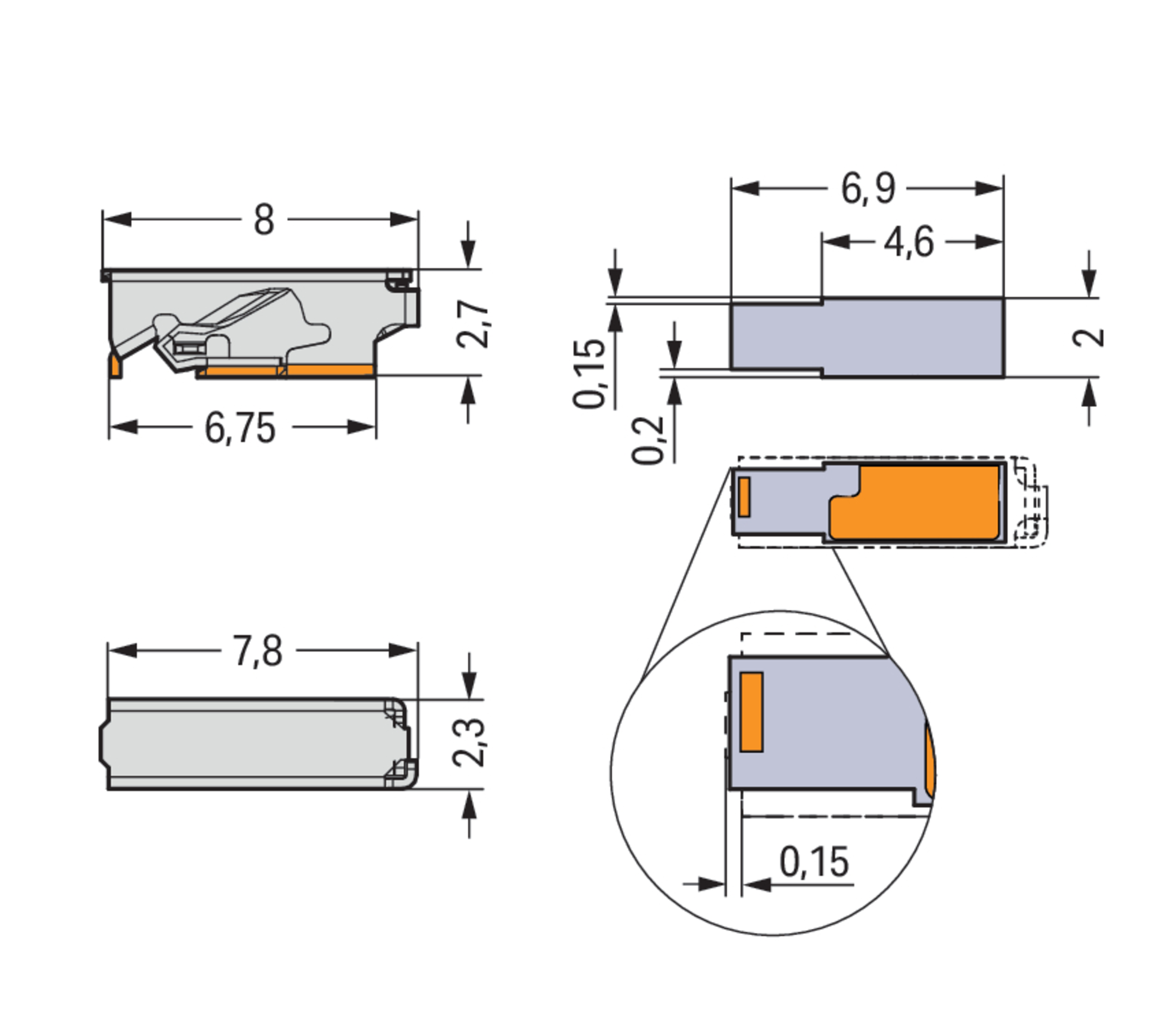

Dimensions and Weights
- Dimension: Width
- 2.3 mm
- Dimension: Height
- 2.7 mm
- Dimension: Depth
- 8 mm
- Pitch
- 6 mm
- Weight
- 0.1 g
- Stripping length, min.
- 7.5 mm
- Stripping length, max.
- 9.5 mm
- Conductor cross-section (AWG), min.
- 24 AWG
- Conductor cross-section (AWG), max.
- 18 AWG
- Nominal cross-section, solid, min.
- 0.2 mm²
- Nominal cross-section, solid, max.
- 0.75 mm²
Operating conditions
- Operating Temperature Min.
- -60 °C
- Operating Temperature Max.
- 120 °C
Technical Features
- Rated current
- 9 A
- Rated voltage AC
- 320 V AC
Safety/Certifications
- Approvals
- CB
- KEMA/KEUR
- cURus
- Standards
- EN 60947-7-4
- EN 60998
- IEC 60998
- UL 1977
