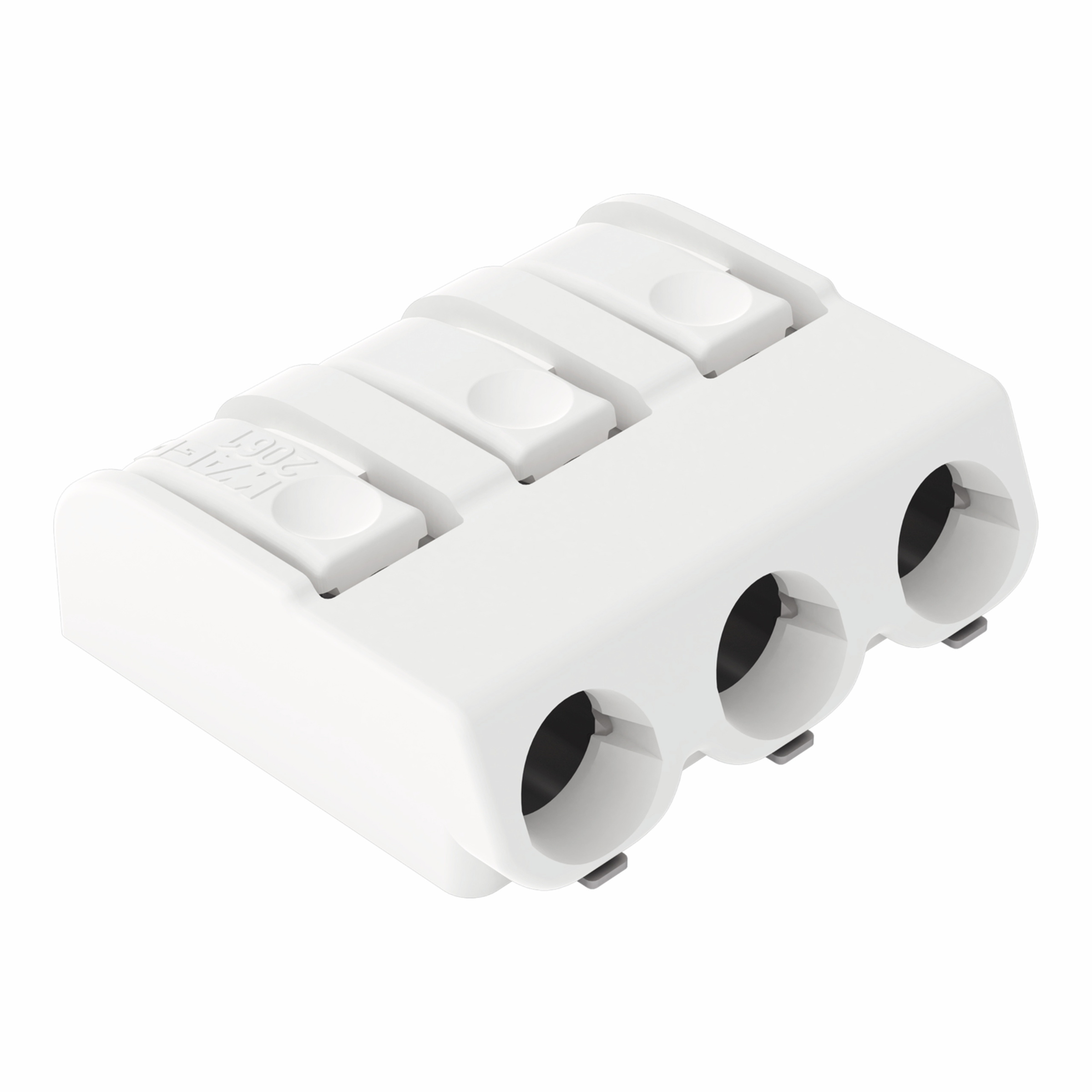

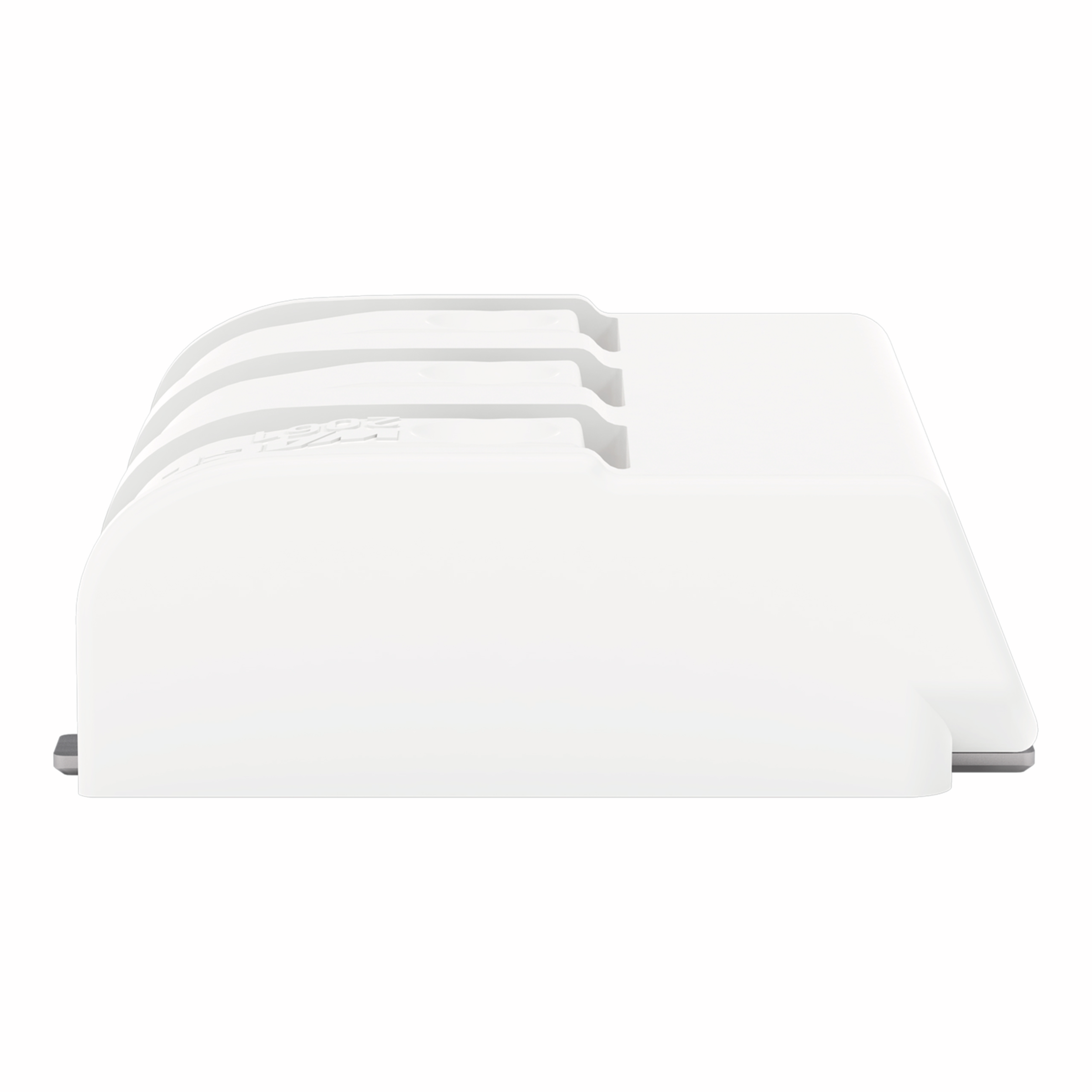

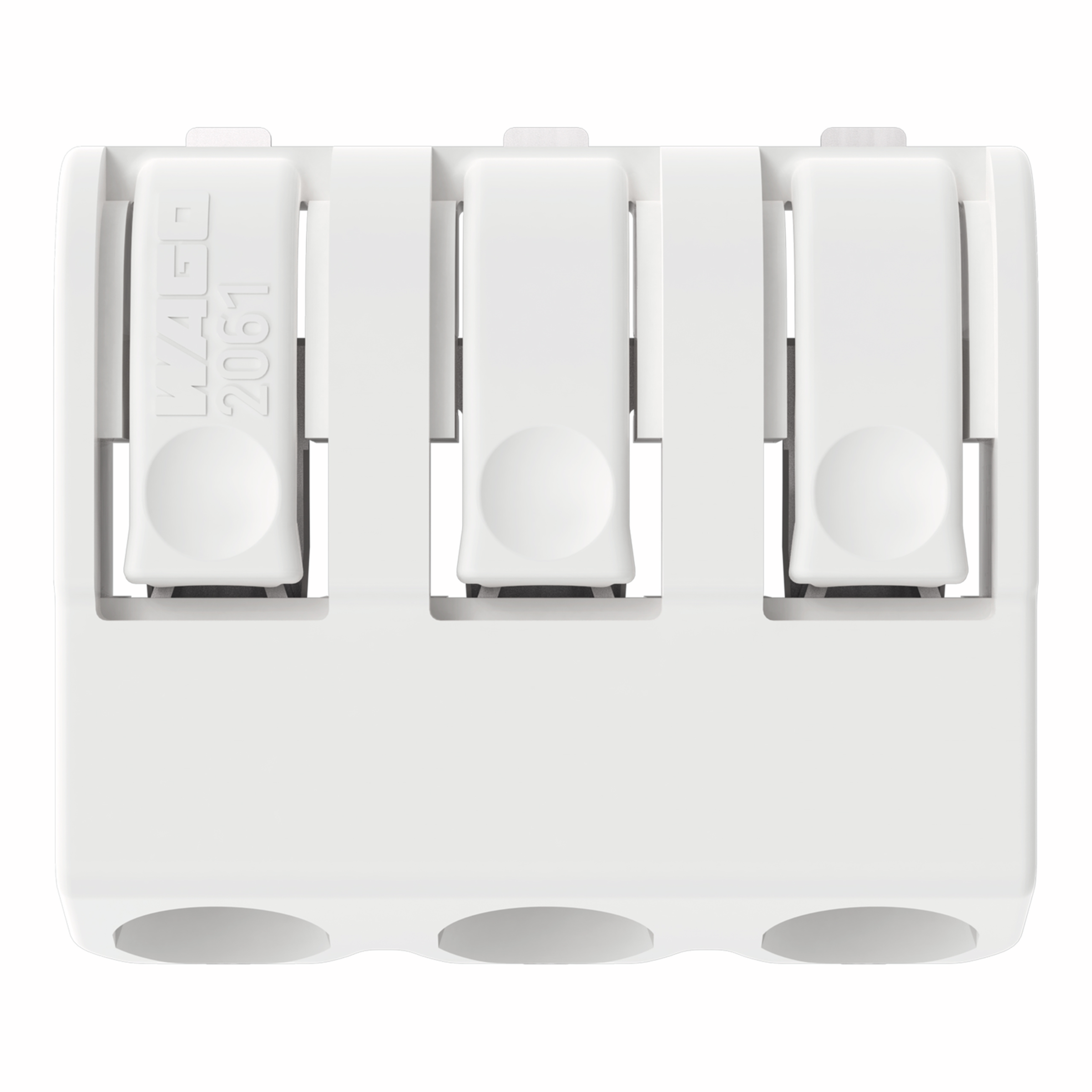

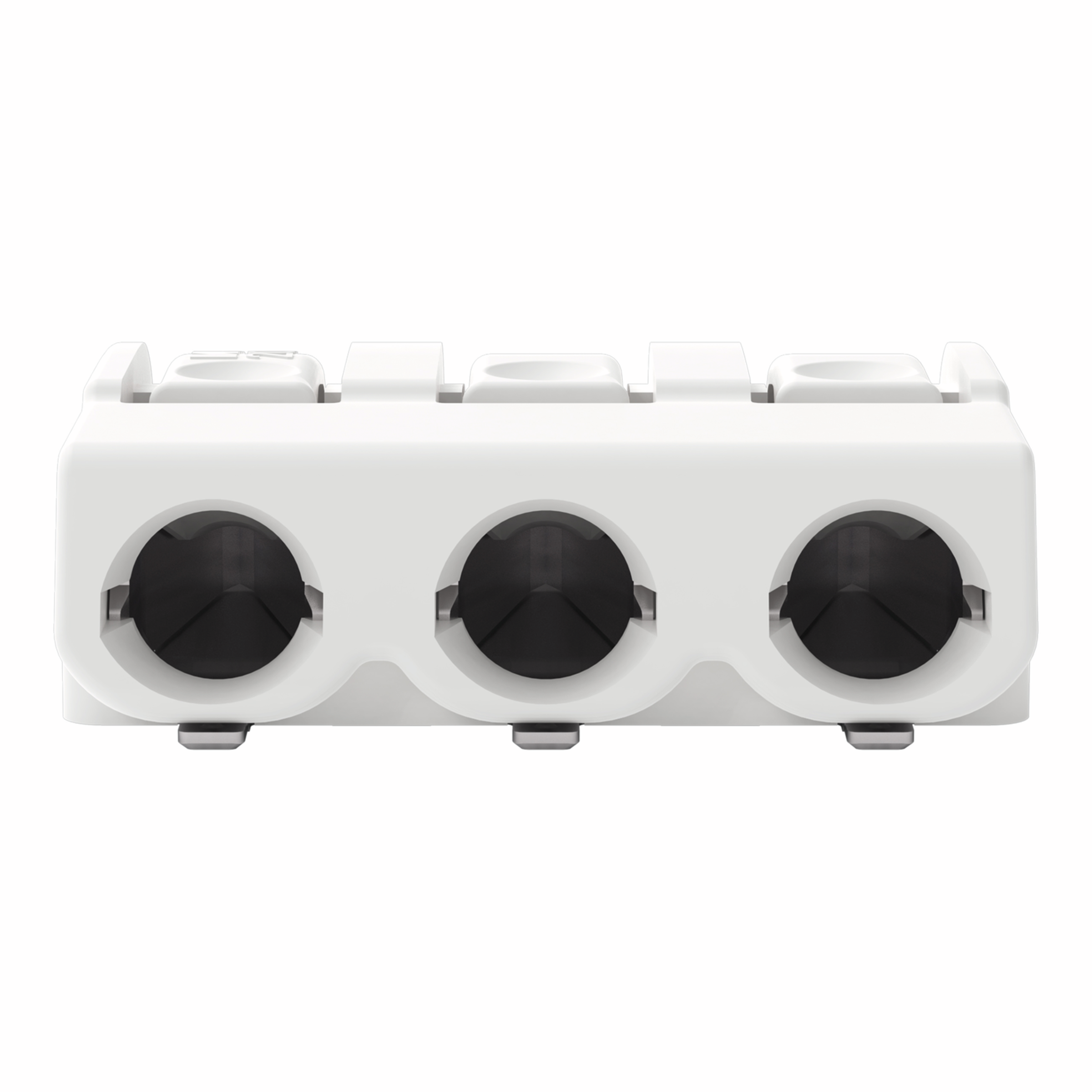

2061-603/998-404
WAGO Terminal block 2061 horizontal 3 Pole Pitch6mm white SMD 17,7mm 5,6mm 20AWG 16AWG 17,5A 320VAC
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
190 Pcs. in stock
Next Stock Receipt
Week 19/2026
450 Pcs.
450 Pcs.
Planned delivery time
Ø 6 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 900 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Terminal block
- Connector Contact
- SMD
- Series
- 2061
- Colour
- white
- Housing material
- Polyphthalamid (PPA) GF
- Design
- Push-in Cage clamp
- Number of poles
- 3
- Standards
- EN 60838
EN 60947-7-4
UL 1059 - Pitch
- 6 mm
- Class of Inflammability
- UL 94 V-0
- Locking
- no
- Alignment
- horizontal
- Operating Temperature Max.
- 105 °C
- Rated voltage AC
- 320 V AC
- Rated current
- 17.5 A
- Operating Temperature Min.
- -60 °C
- RoHS-Conform
Specifications
Open all

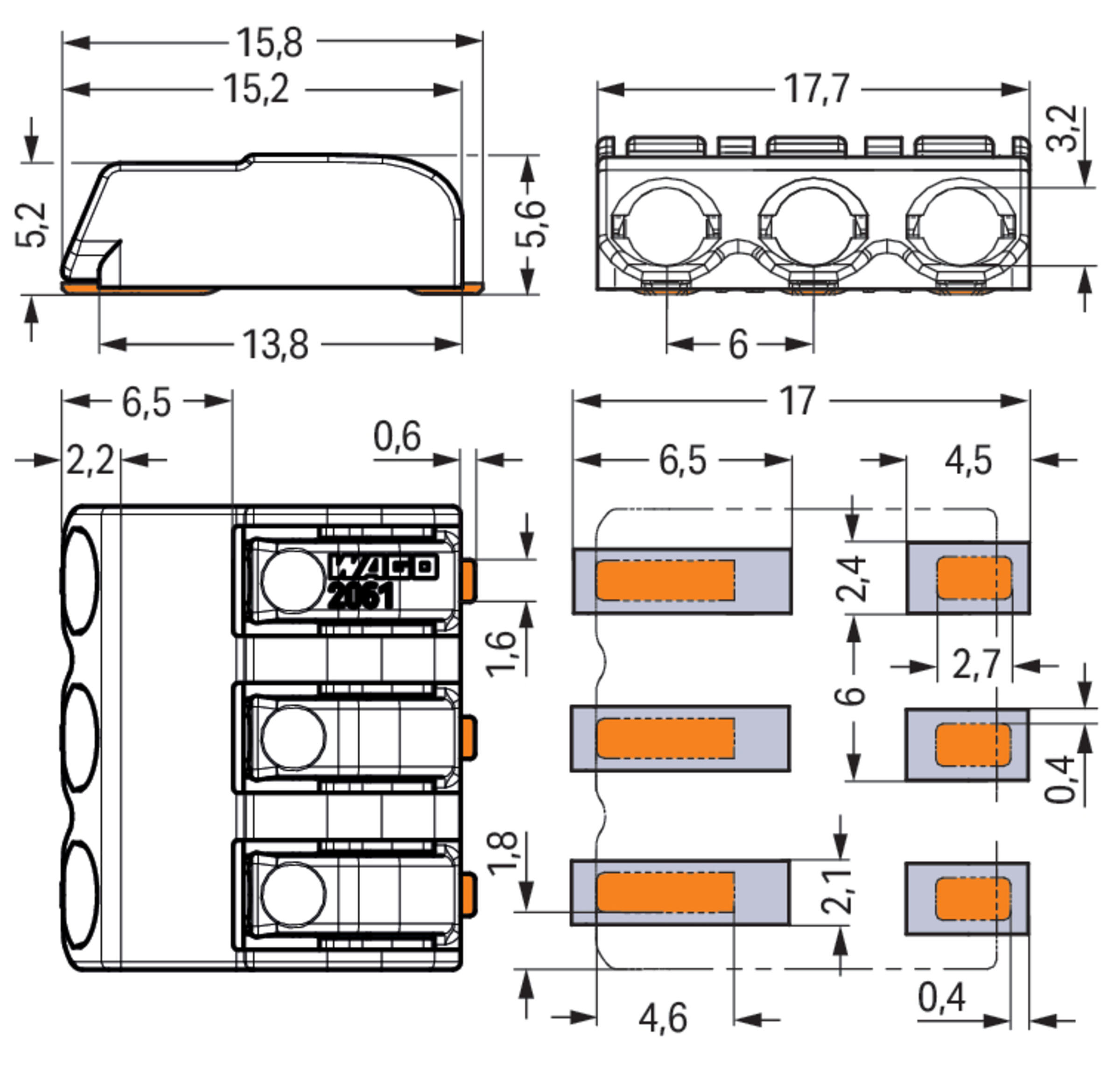

Dimensions and Weights
- Dimension: Width
- 17.7 mm
- Dimension: Height
- 5.6 mm
- Dimension: Depth
- 15.8 mm
- Pitch
- 6 mm
- Weight
- 1.6 g
- Stripping length, min.
- 7 mm
- Stripping length, max.
- 10 mm
- Conductor cross-section (AWG), min.
- 20 AWG
- Conductor cross-section (AWG), max.
- 16 AWG
- Nominal cross-section, solid, min.
- 0.5 mm²
- Nominal cross-section, solid, max.
- 1.5 mm²
- Nominal cross-section finely stranded, min.
- 0.5 mm²
- Nominal cross-section finely stranded, max.
- 1.5 mm²
Operating conditions
- Operating Temperature Min.
- -60 °C
- Operating Temperature Max.
- 105 °C
Technical Features
- Rated current
- 17.5 A
- Rated voltage AC
- 320 V AC
Mechanical Features
- Housing material
- Polyphthalamid (PPA) GF
- Contact Surface Input
- verzinnt
Safety/Certifications
- Approvals
- CCA
- KEMA/KEUR
- cURus
- Standards
- EN 60838
- EN 60947-7-4
- UL 1059
- Class of Inflammability
- UL 94 V-0
