2060-903
WAGO Connecting element 2060 vertical 3 Pole Pitch4mm 9mm 13mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 01.12.2020
Discontinued by manufacturer without replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 375 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 15 or multiple of 15)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Connecting element
- Series
- 2060
- Number of poles
- 3
- Pitch
- 4 mm
- Locking
- no
- Alignment
- vertical
- Operating Temperature Max.
- 105 °C
- Operating Temperature Min.
- -60 °C
- RoHS-Conform
Specifications
Open all

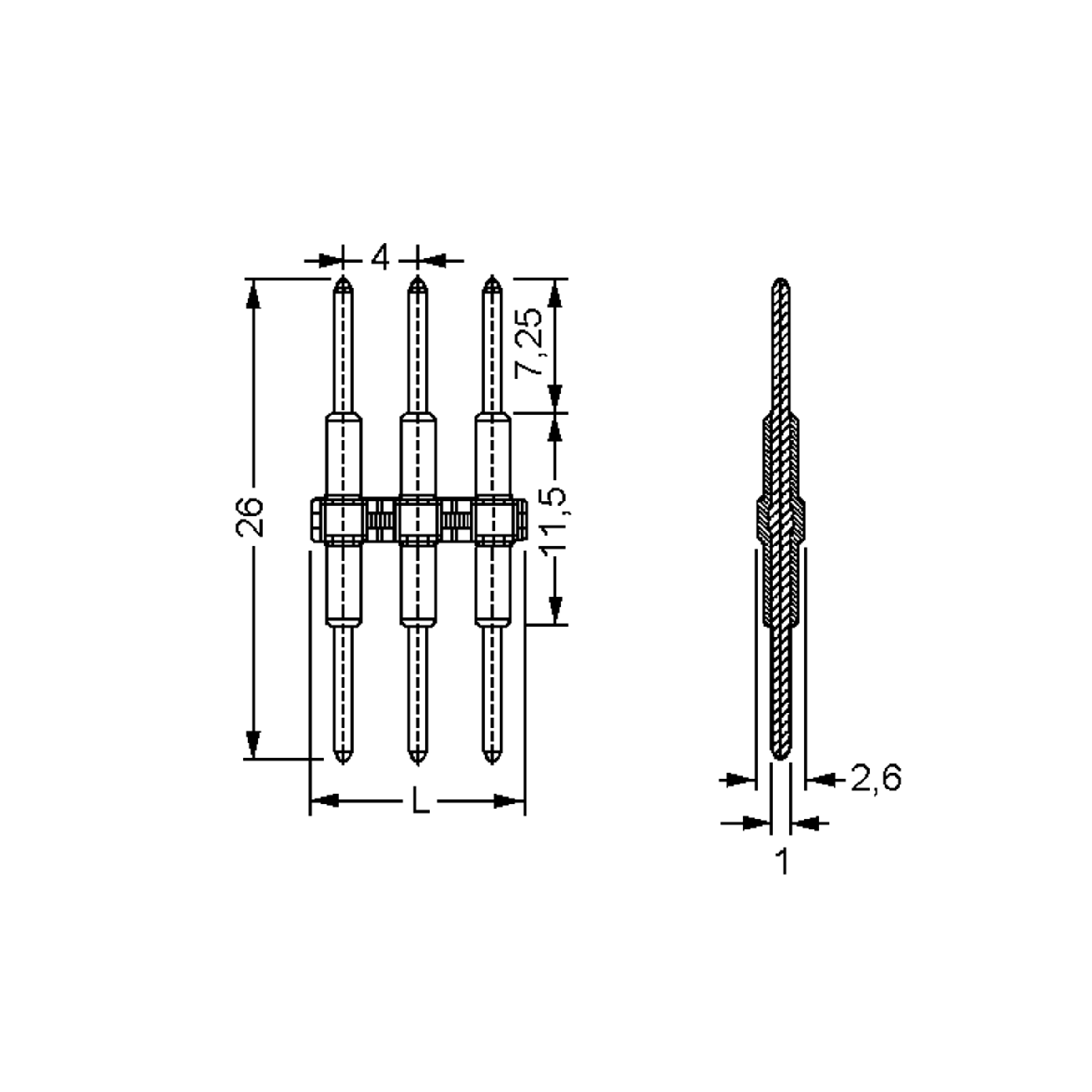

Dimensions and Weights
- Dimension: Width
- 9 mm
- Dimension: Height
- 13 mm
- Dimension: Depth
- 2.6 mm
- Pitch
- 4 mm
- Stripping length, min.
- 7 mm
- Stripping length, max.
- 9 mm
- Nominal cross-section, solid, min.
- 0.2 mm²
- Nominal cross-section, solid, max.
- 0.75 mm²
- Nominal cross-section finely stranded, min.
- 0.2 mm²
- Nominal cross-section finely stranded, max.
- 0.75 mm²
Operating conditions
- Operating Temperature Min.
- -60 °C
- Operating Temperature Max.
- 105 °C
