Results (906)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Type | Contact Type | Design | Locking Type | Housing | Alignment | Number of poles | Pitch | Contact Surface Input | Housing material | Colour | Connector Contact | Strain Relief | Conductor cross-section, min. | Conductor cross-section (AWG), min. | Conductor cross-section, max. | Conductor cross-section (AWG), max. | Rated current | Operating Temperature Min. | Operating Temperature Max. | Test voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

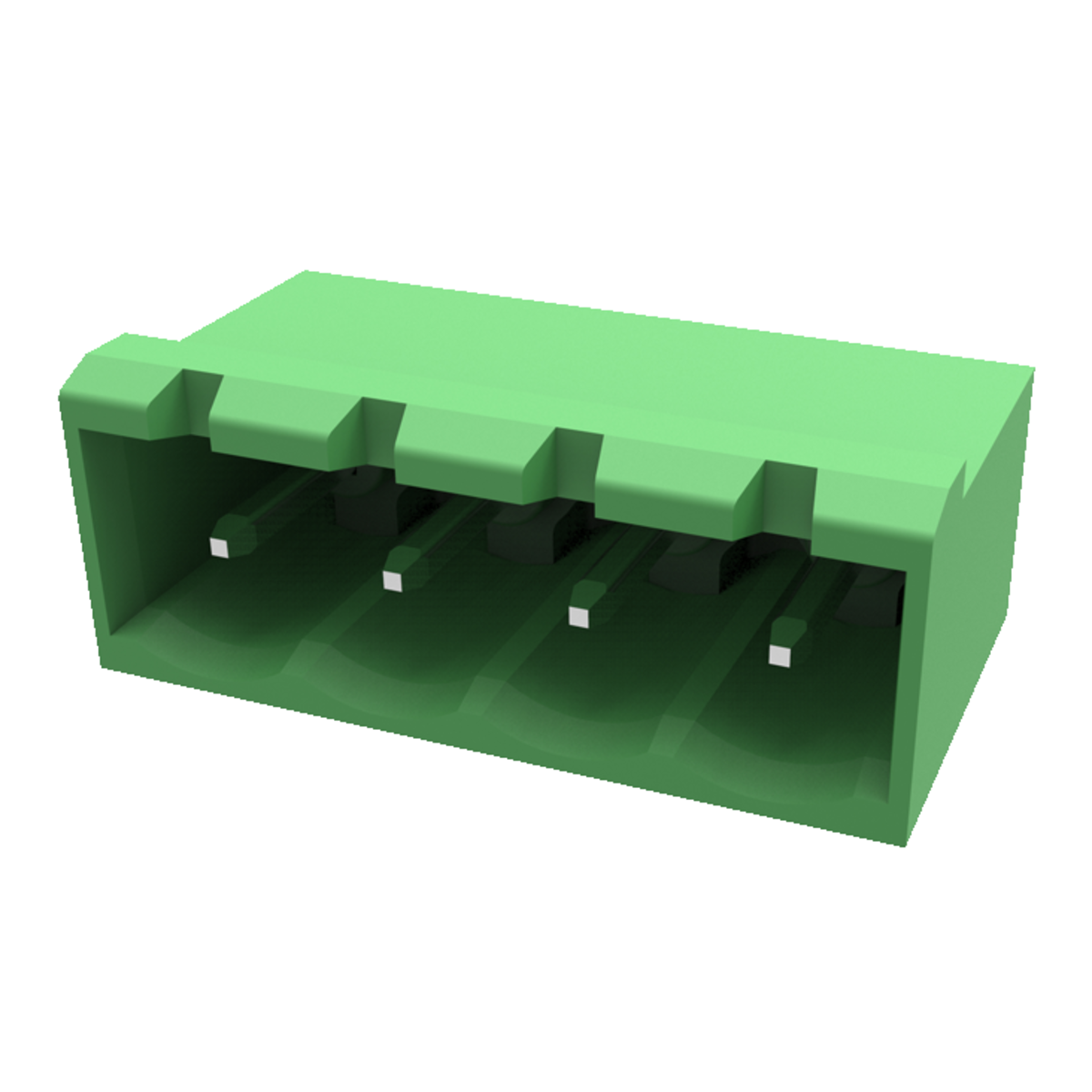

776 |  | Manufacturers Part No. 2EDGRC-5.0-04P-14-100A(H)(2EDGRC-5.0-04P-14) DEGSON Tray pin strip 2EDGRC-5.0 Pin Box Header 1-row 90° 4 Pole Pitch5,08mm green verzinnt | Customer Part No. Customer Project No. | 190 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 10 or mul. of 10) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | 90° | 4 | 5.08 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 20.0 A | -40.0 °C | 105.0 °C | ||||||||||||
777 | | Manufacturers Part No. 2EDGRC-5.0-05P-14-100A(H)(2EDGRC-5.0-05P-14) DEGSON Tray pin strip 2EDGRC-5.0 Pin Box Header 1-row 90° 5 Pole Pitch5,08mm green verzinnt | Customer Part No. Customer Project No. | 760 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | 90° | 5 | 5.08 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 20.0 A | -40.0 °C | 105.0 °C | ||||||||||||
778 | | Manufacturers Part No. 2EDGRC-5.0-07P-14-100A(H)(2EDGRC-5.0-07P) DEGSON Tray pin strip 2EDGRC-5.0 Pin Box Header 1-row 90° 7 Pole Pitch5,08mm green verzinnt | Customer Part No. Customer Project No. | 1.120 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | 90° | 7 | 5.08 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 20.0 A | -40.0 °C | 105.0 °C | ||||||||||||
779 | | Manufacturers Part No. AK4551/2KD-3.5-GRÜN(AK4551-2) PTR HARTMANN PCB connector AK4551 Spring Header Latching lug 1-row straight 2 Pole Pitch3,5mm green 160VAC | Customer Part No. Customer Project No. | 340 Pcs. Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | PCB connector | Spring | Header | Latching lug | 1-row | straight | 2 | 3.5 mm | Polyamide (PA) 66 | green | Push-In | no | 26.0 AWG | 16.0 AWG | 10.0 A | -40.0 °C | 105.0 °C | 2500.0 V AC | ||||||||
780 | | Manufacturers Part No. AK4551/3KD-3.5-GRÜN(AK4551-3) PTR HARTMANN PCB connector AK4551 Spring Header Latching lug 1-row straight 3 Pole Pitch3,5mm green 160VAC | Customer Part No. Customer Project No. | 420 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | PCB connector | Spring | Header | Latching lug | 1-row | straight | 3 | 3.5 mm | Polyamide (PA) 66 | green | Push-In | no | 26.0 AWG | 16.0 AWG | 10.0 A | -40.0 °C | 105.0 °C | 2500.0 V AC | ||||||||
781 | | Manufacturers Part No. AK4551/4KD-3.5-GRÜN(AK4551-4) PTR HARTMANN PCB connector AK4551 Spring Header Latching lug 1-row straight 4 Pole Pitch3,5mm green 160VAC | Customer Part No. Customer Project No. | 1.230 Pcs. Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | PCB connector | Spring | Header | Latching lug | 1-row | straight | 4 | 3.5 mm | Polyamide (PA) 66 | green | Push-In | no | 26.0 AWG | 16.0 AWG | 10.0 A | -40.0 °C | 105.0 °C | 2500.0 V AC | ||||||||
782 | | Manufacturers Part No. AK4551/5KD-3.5-GRÜN(AK4551-5) PTR HARTMANN PCB connector AK4551 Spring Header Latching lug 1-row straight 5 Pole Pitch3,5mm green 160VAC | Customer Part No. Customer Project No. | 1.400 Pcs. Planned Delivery Time Ø 9 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | PCB connector | Spring | Header | Latching lug | 1-row | straight | 5 | 3.5 mm | Polyamide (PA) 66 | green | Push-In | no | 26.0 AWG | 16.0 AWG | 10.0 A | -40.0 °C | 105.0 °C | 2500.0 V AC | ||||||||
783 | | Manufacturers Part No. AK4551/6KD-3.5-GRÜN(AK4551-6) PTR HARTMANN PCB connector AK4551 Spring Header Latching lug 1-row straight 6 Pole Pitch3,5mm green 160VAC | Customer Part No. Customer Project No. | 130 Pcs. Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | PCB connector | Spring | Header | Latching lug | 1-row | straight | 6 | 3.5 mm | Polyamide (PA) 66 | green | Push-In | no | 26.0 AWG | 16.0 AWG | 10.0 A | -40.0 °C | 105.0 °C | 2500.0 V AC | ||||||||
784 | | Manufacturers Part No. AK4551/8KD-3.5-GRÜN(AK4551-8) PTR HARTMANN PCB connector AK4551 Spring Header Latching lug 1-row straight 8 Pole Pitch3,5mm green 160VAC | Customer Part No. Customer Project No. | 590 Pcs. Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | PCB connector | Spring | Header | Latching lug | 1-row | straight | 8 | 3.5 mm | Polyamide (PA) 66 | green | Push-In | no | 26.0 AWG | 16.0 AWG | 10.0 A | -40.0 °C | 105.0 °C | 2500.0 V AC | ||||||||
785 | | Manufacturers Part No. AK4551/10KD-3.5-GRÜN(AK4551-10) PTR HARTMANN PCB connector AK4551 Spring Header Latching lug 1-row straight 10 Pole Pitch3,5mm green 160VAC | Customer Part No. Customer Project No. | 130 Pcs. Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | PCB connector | Spring | Header | Latching lug | 1-row | straight | 10 | 3.5 mm | Polyamide (PA) 66 | green | Push-In | no | 26.0 AWG | 16.0 AWG | 10.0 A | -40.0 °C | 105.0 °C | 2500.0 V AC | ||||||||
786 | | Manufacturers Part No. AK1550/2-3.5-GRUEN(AK1550/2) PTR HARTMANN PCB connector AK1550 Spring Header Latching lug 1-row straight 2 Pole Pitch3,5mm green 160VAC TOP | Customer Part No. Customer Project No. | 8.520 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | PCB connector | Spring | Header | Latching lug | 1-row | straight | 2 | 3.5 mm | Polyamide (PA) 66 | green | Screw-cage clamp | no | 28.0 AWG | 16.0 AWG | 8.0 A | -40.0 °C | 105.0 °C | 2500.0 V AC | ||||||||
787 | | Manufacturers Part No. AK1550/3-3.5-GRUEN(AK1550/3) PTR HARTMANN PCB connector AK1550 Spring Header Latching lug 1-row straight 3 Pole Pitch3,5mm green 160VAC TOP | Customer Part No. Customer Project No. | 3.840 Pcs. Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | PCB connector | Spring | Header | Latching lug | 1-row | straight | 3 | 3.5 mm | Polyamide (PA) 66 | green | Screw-cage clamp | no | 28.0 AWG | 16.0 AWG | 8.0 A | -40.0 °C | 105.0 °C | 2500.0 V AC | ||||||||
788 | | Manufacturers Part No. AK1550/4-3.5-GRUEN(AK1550/4) PTR HARTMANN PCB connector AK1550 Spring Header Latching lug 1-row straight 4 Pole Pitch3,5mm green 160VAC TOP | Customer Part No. Customer Project No. | 4.110 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | PCB connector | Spring | Header | Latching lug | 1-row | straight | 4 | 3.5 mm | Polyamide (PA) 66 | green | Screw-cage clamp | no | 28.0 AWG | 16.0 AWG | 8.0 A | -40.0 °C | 105.0 °C | 2500.0 V AC | ||||||||
789 | | Manufacturers Part No. AK1550/5-3.5-GRUEN(AK1550/5) PTR HARTMANN PCB connector AK1550 Spring Header Latching lug 1-row straight 5 Pole Pitch3,5mm green 160VAC | Customer Part No. Customer Project No. | 540 Pcs. Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | PCB connector | Spring | Header | Latching lug | 1-row | straight | 5 | 3.5 mm | Polyamide (PA) 66 | green | Screw-cage clamp | no | 28.0 AWG | 16.0 AWG | 8.0 A | -40.0 °C | 105.0 °C | 2500.0 V AC | ||||||||
790 | | Manufacturers Part No. AK1550/6-3.5-GRUEN(AK1550/6) PTR HARTMANN PCB connector AK1550 Spring Header Latching lug 1-row straight 6 Pole Pitch3,5mm green 160VAC | Customer Part No. Customer Project No. | 490 Pcs. Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | PCB connector | Spring | Header | Latching lug | 1-row | straight | 6 | 3.5 mm | Polyamide (PA) 66 | green | Screw-cage clamp | no | 28.0 AWG | 16.0 AWG | 8.0 A | -40.0 °C | 105.0 °C | 2500.0 V AC | ||||||||
791 | | Manufacturers Part No. AK1550/8-3.5-GRUEN(AK1550/8) PTR HARTMANN PCB connector AK1550 Spring Header Latching lug 1-row straight 8 Pole Pitch3,5mm green 160VAC | Customer Part No. Customer Project No. | 460 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | PCB connector | Spring | Header | Latching lug | 1-row | straight | 8 | 3.5 mm | Polyamide (PA) 66 | green | Screw-cage clamp | no | 28.0 AWG | 16.0 AWG | 8.0 A | -40.0 °C | 105.0 °C | 2500.0 V AC | ||||||||
792 | | Manufacturers Part No. AK1550/10-3.5-GRUEN(AK1550/10) PTR HARTMANN PCB connector AK1550 Spring Header Latching lug 1-row straight 10 Pole Pitch3,5mm green 160VAC | Customer Part No. Customer Project No. | 500 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | PCB connector | Spring | Header | Latching lug | 1-row | straight | 10 | 3.5 mm | Polyamide (PA) 66 | green | Screw-cage clamp | no | 28.0 AWG | 16.0 AWG | 8.0 A | -40.0 °C | 105.0 °C | 2500.0 V AC | ||||||||
793 | | Manufacturers Part No. AK1550/12-3.5-GRUEN(AK1550/12) PTR HARTMANN PCB connector AK1550 Spring Header Latching lug 1-row straight 12 Pole Pitch3,5mm green 160VAC | Customer Part No. Customer Project No. | 120 Pcs. Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | PCB connector | Spring | Header | Latching lug | 1-row | straight | 12 | 3.5 mm | Polyamide (PA) 66 | green | Screw-cage clamp | no | 28.0 AWG | 16.0 AWG | 8.0 A | -40.0 °C | 105.0 °C | 2500.0 V AC | ||||||||
794 | | Manufacturers Part No. AK1550/16-3.5-GRUEN(AK1550/16) PTR HARTMANN PCB connector AK1550 Spring Header Latching lug 1-row straight 16 Pole Pitch3,5mm green 160VAC | Customer Part No. Customer Project No. | 300 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | PCB connector | Spring | Header | Latching lug | 1-row | straight | 16 | 3.5 mm | Polyamide (PA) 66 | green | Screw-cage clamp | no | 28.0 AWG | 16.0 AWG | 8.0 A | -40.0 °C | 105.0 °C | 2500.0 V AC | ||||||||
795 | | Manufacturers Part No. STL1550/2G-3.5-V-GRUEN(STL1550WV2) PTR HARTMANN Tray pin strip STL1550 Pin Box Header 1-row vertical 2 Pole Pitch3,5mm green | Customer Part No. Customer Project No. | 2.690 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | Pin | Box Header | 1-row | vertical | 2 | 3.5 mm | Polyamide (PA) 66 | green | Solder | 10.0 A | -30.0 °C | 105.0 °C | |||||||||||||
796 | | Manufacturers Part No. STL1550/3G-3.5-V-GRUEN(STL1550WV3) PTR HARTMANN Tray pin strip STL1550 Pin Box Header 1-row vertical 3 Pole Pitch3,5mm green | Customer Part No. Customer Project No. | 6.840 Pcs. Planned Delivery Time Ø 7 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | Pin | Box Header | 1-row | vertical | 3 | 3.5 mm | Polyamide (PA) 66 | green | Solder | 10.0 A | -30.0 °C | 105.0 °C | |||||||||||||
797 | | Manufacturers Part No. STL1550/4G-3.5-V-GRUEN(STL1550WV4) PTR HARTMANN Tray pin strip STL1550 Pin Box Header 1-row vertical 4 Pole Pitch3,5mm green | Customer Part No. Customer Project No. | 2.630 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | Pin | Box Header | 1-row | vertical | 4 | 3.5 mm | Polyamide (PA) 66 | green | Solder | 10.0 A | -30.0 °C | 105.0 °C | |||||||||||||
798 | | Manufacturers Part No. STL1550/5G-3.5-V-GRUEN(STL1550WV5) PTR HARTMANN Tray pin strip STL1550 Pin Box Header 1-row vertical 5 Pole Pitch3,5mm green | Customer Part No. Customer Project No. | 550 Pcs. Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | Pin | Box Header | 1-row | vertical | 5 | 3.5 mm | Polyamide (PA) 66 | green | Solder | 10.0 A | -30.0 °C | 105.0 °C | |||||||||||||
799 | | Manufacturers Part No. STL1550/6G-3.5-V-GRUEN(STL1550WV6) PTR HARTMANN Tray pin strip STL1550 Pin Box Header 1-row vertical 6 Pole Pitch3,5mm green | Customer Part No. Customer Project No. | 1.420 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | Pin | Box Header | 1-row | vertical | 6 | 3.5 mm | Polyamide (PA) 66 | green | Solder | 10.0 A | -30.0 °C | 105.0 °C | |||||||||||||
800 | | Manufacturers Part No. STL1550/8G-3.5-V-GRUEN(STL1550WV8) PTR HARTMANN Tray pin strip STL1550 Pin Box Header 1-row vertical 8 Pole Pitch3,5mm green | Customer Part No. Customer Project No. | 760 Pcs. Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | Pin | Box Header | 1-row | vertical | 8 | 3.5 mm | Polyamide (PA) 66 | green | Solder | 10.0 A | -30.0 °C | 105.0 °C |
