M40020.00.65

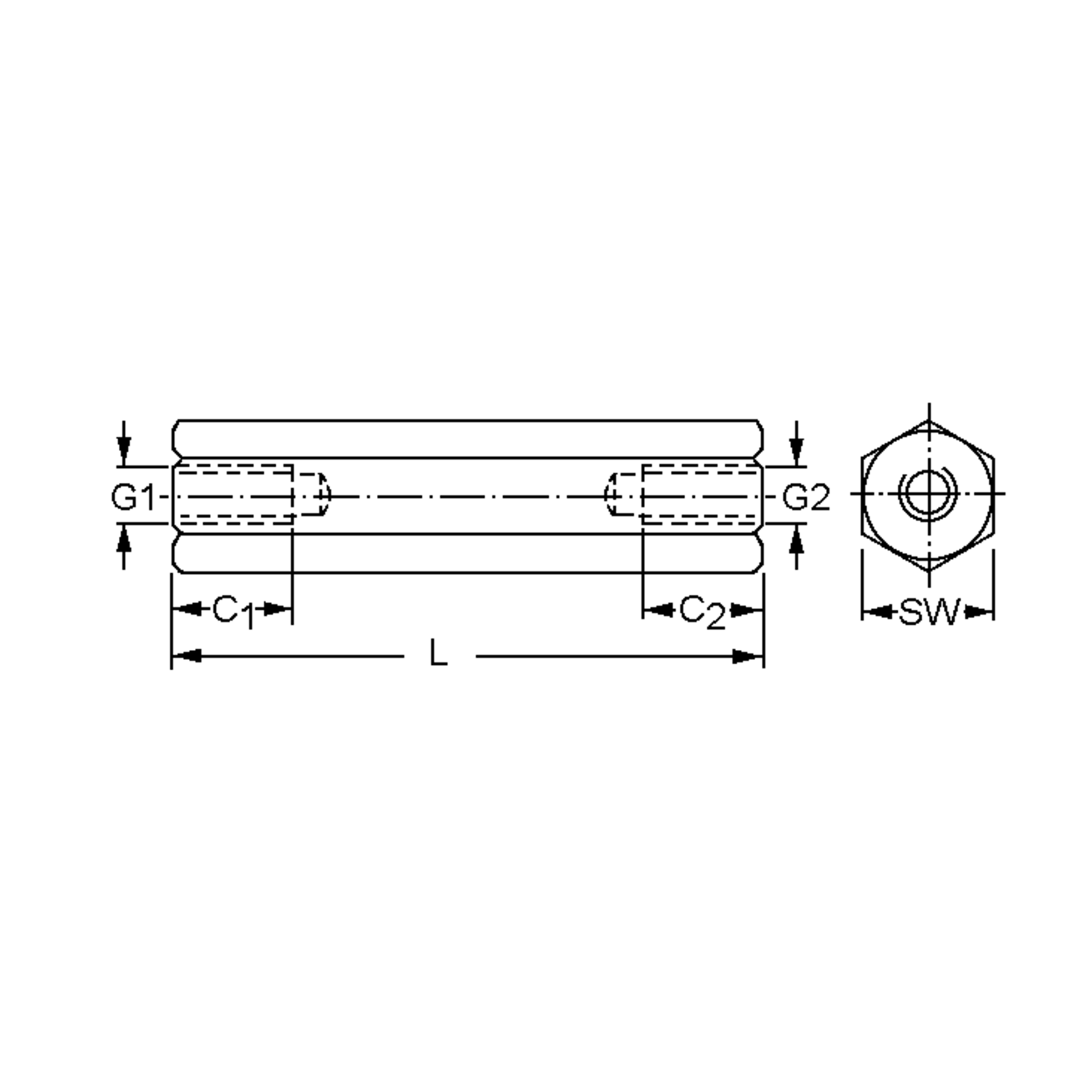

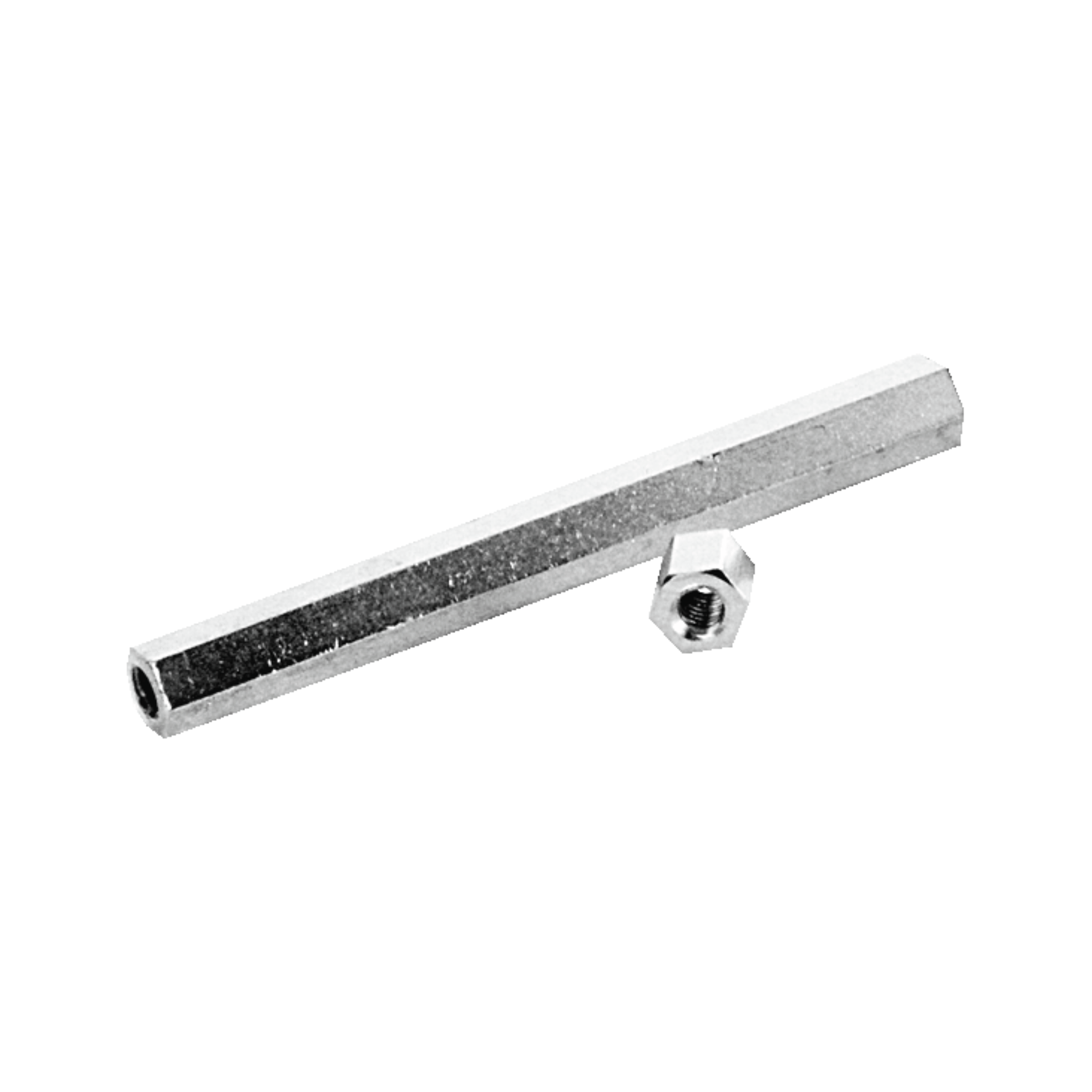

Vogt DI7M Brass, nickel plated spacer bolt Internal/internal thread silver SW7mm 20mm

Manufacturer Part No.
M40020.00.65
Schukat Part No.
DI7M4X20
Manufacturer
Vogt
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

7.500 Pcs. in stock

Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Series
DI7M
Type
spacer bolt
Material
Brass, nickel plated
Colour
silver
Dimension: Length
20 mm
Key Width
7 mm
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Vogt
Design
  • hexagon
Structure
  • Internal/internal thread
Thread 1
  • Internal thread M4
Thread 2
  • Internal thread M4
Series
  • DI7M
Material
  • Brass, nickel plated
Type
  • spacer bolt
Product group
  • G8263 Spacers Brass M4 2x Inside Thread
Colour
  • silver

Dimensions and weights

Key Width
  • 7 mm
Dimension: Length
  • 20 mm
