470408.00050

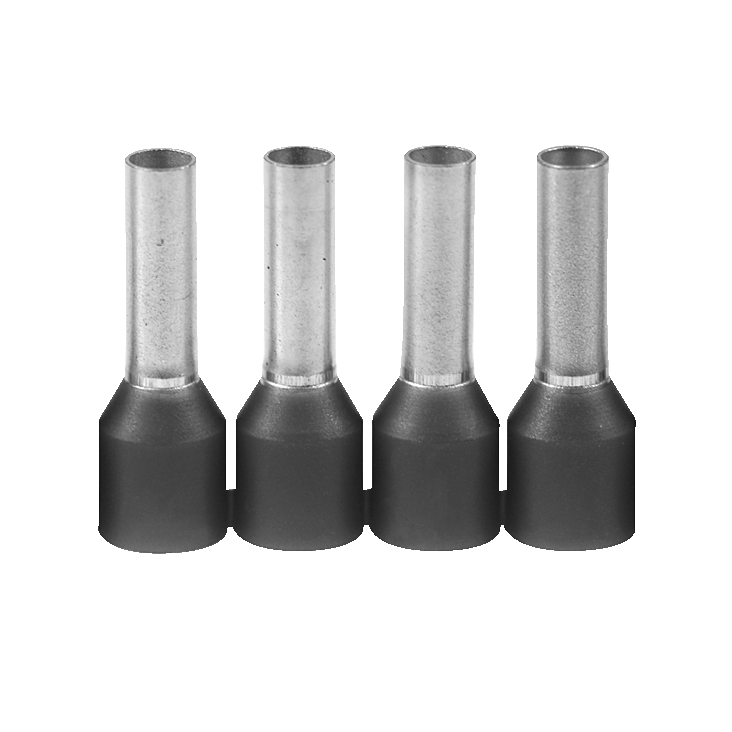

Vogt Wire end ferrule 470 1 Pole straight black verzinnt 1,7mm 1,5mm²
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
2.000 Pcs. in stock
Planned delivery time
Ø 3 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1000 or multiple of 1000)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Wire end ferrule
- Connector Contact
- Crimp
- Series
- 470
- Colour
- black
- Housing material
- Polypropylen (PP)
- Design
- Contacts
- Number of poles
- 1
- Alignment
- straight
- Operating Temperature Max.
- 105 °C
- RoHS-Conform
Specifications
Open all

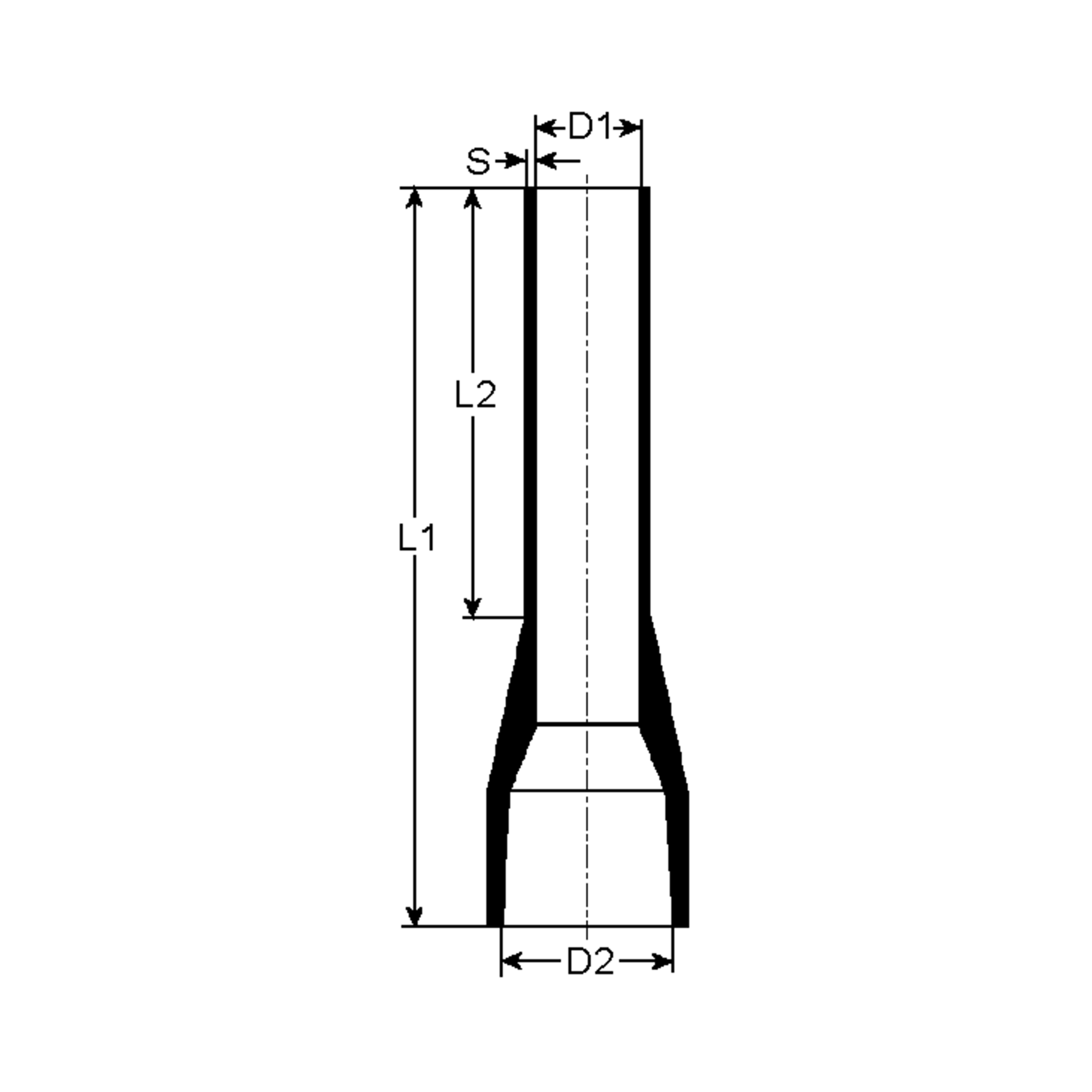

Dimensions and Weights
- Dimension: Length
- 14.5 mm
- Diameter
- 1.7 mm
- Conductor cross-section, max.
- 1.5 mm²
Operating conditions
- Operating Temperature Max.
- 105 °C
Mechanical Features
- Housing material
- Polypropylen (PP)
- Material thickness
- 0.15 mm
- Contact Surface Input
- verzinnt
