3927F

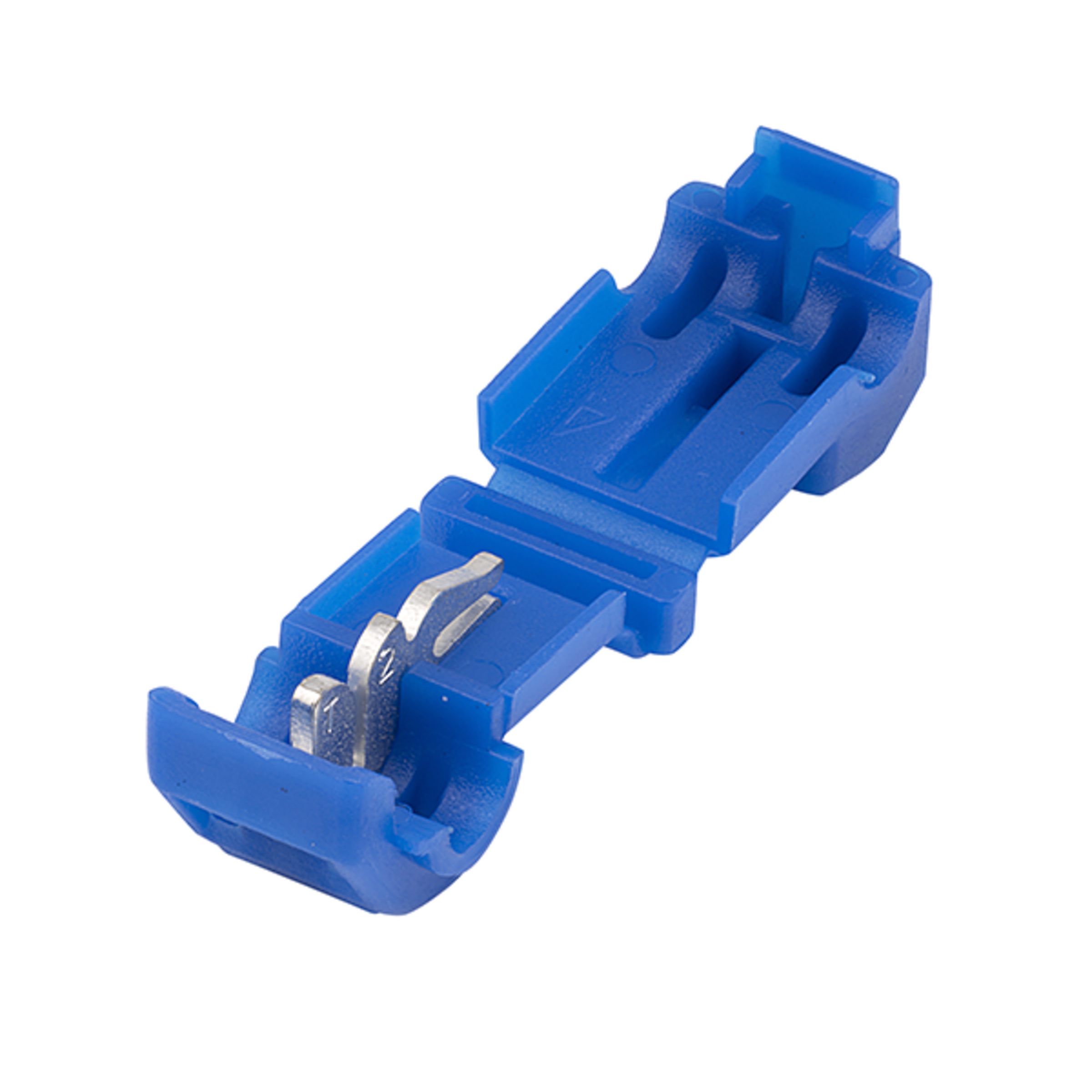

Vogt Junction terminal 392 1 Pole straight blue verzinnt 1,5mm² 2,5mm²
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 250 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 250 or multiple of 250)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Junction terminal
- Connector Contact
- IDC
- Series
- 392
- Colour
- blue
- Housing material
- Polyamide (PA)
- Design
- Contacts
- Number of poles
- 1
- Alignment
- straight
- Operating Temperature Max.
- 105 °C
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Conductor cross-section, min.
- 1.5 mm²
- Conductor cross-section, max.
- 2.5 mm²
Operating conditions
- Operating Temperature Max.
- 105 °C
Technical Features
- Current load, max.
- 15 A
- Voltage, max.
- 600 V
Mechanical Features
- Housing material
- Polyamide (PA)
- Contact Surface Input
- verzinnt
