1055K.68

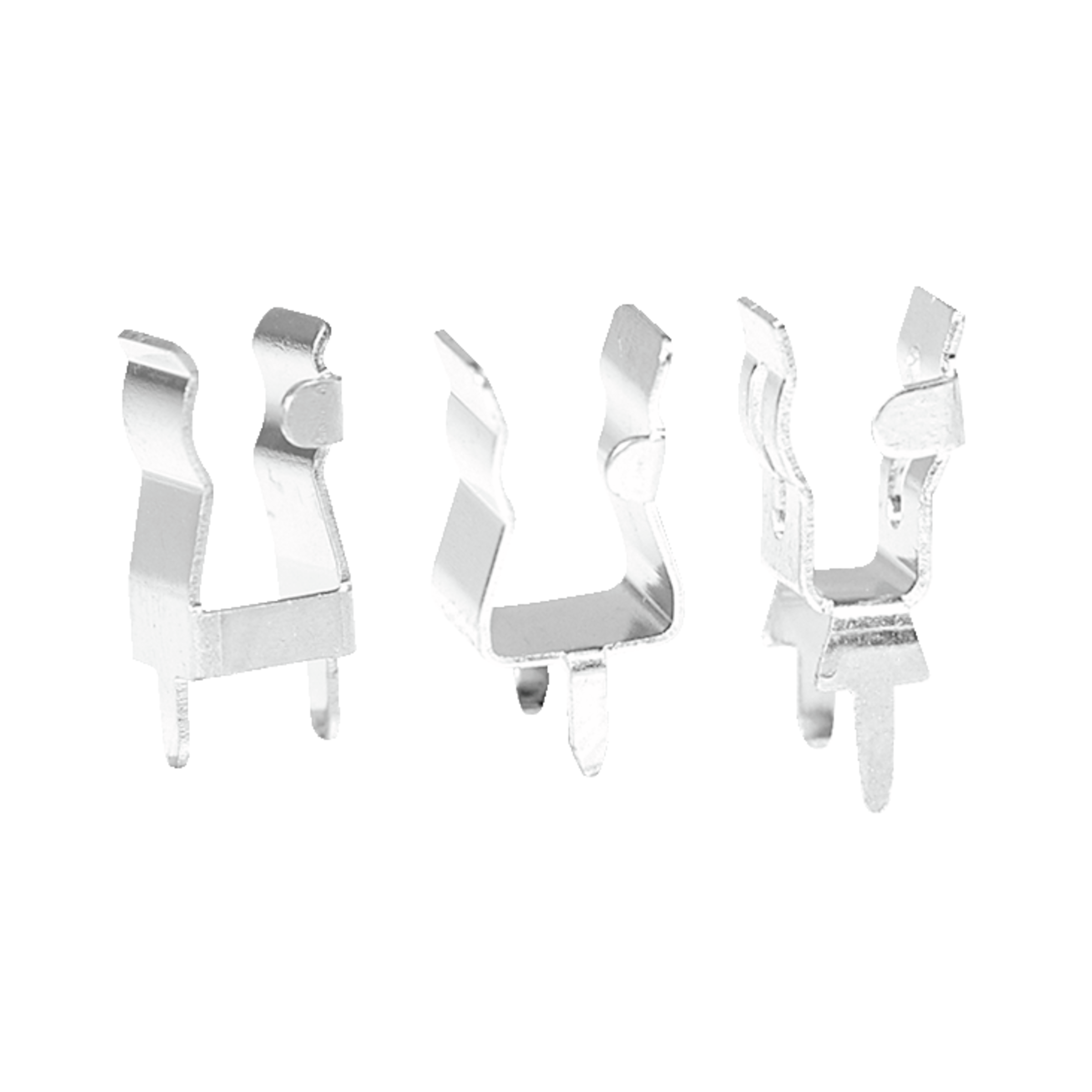

Vogt Fuse holder clips 5x20 for 5x20mm miniature fuses 6A
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 3 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 500 or multiple of 500)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable device fuses and automotive fuses. - Type
- Fuse holder clips 5x20
- Series
- SHH105
- Housing
- open
- Applications
- for 5x20mm miniature fuses
- Rated current
- 6 A
- RoHS-Conform
Specifications
Open all

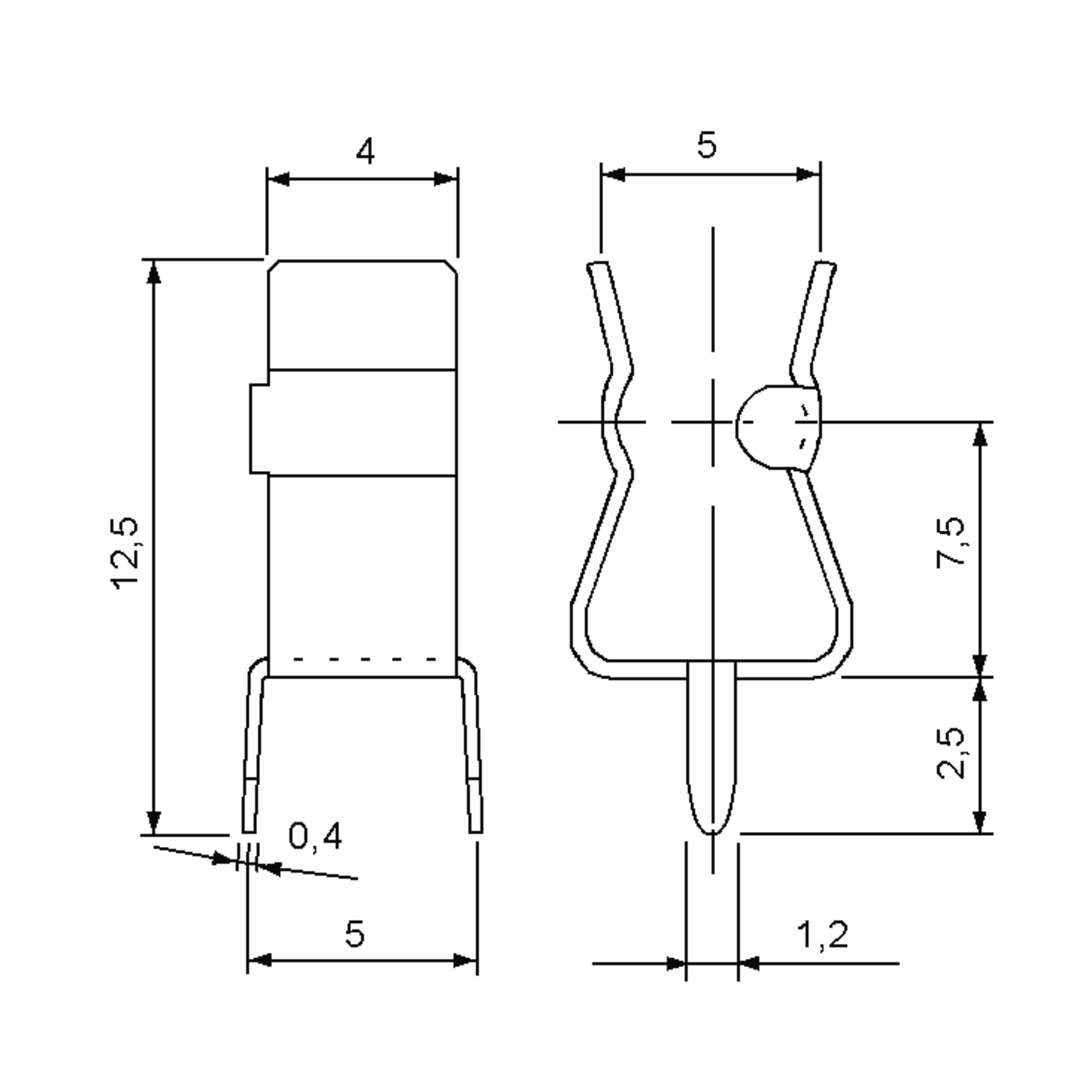

Dimensions and Weights
- Dimension: Length
- 5 mm
- Dimension: Width
- 4 mm
- Dimension: Height
- 12.5 mm
- Pitch
- 5 mm
Technical Features
- Rated current
- 6 A
