ZCM207FKE07-1K5AA

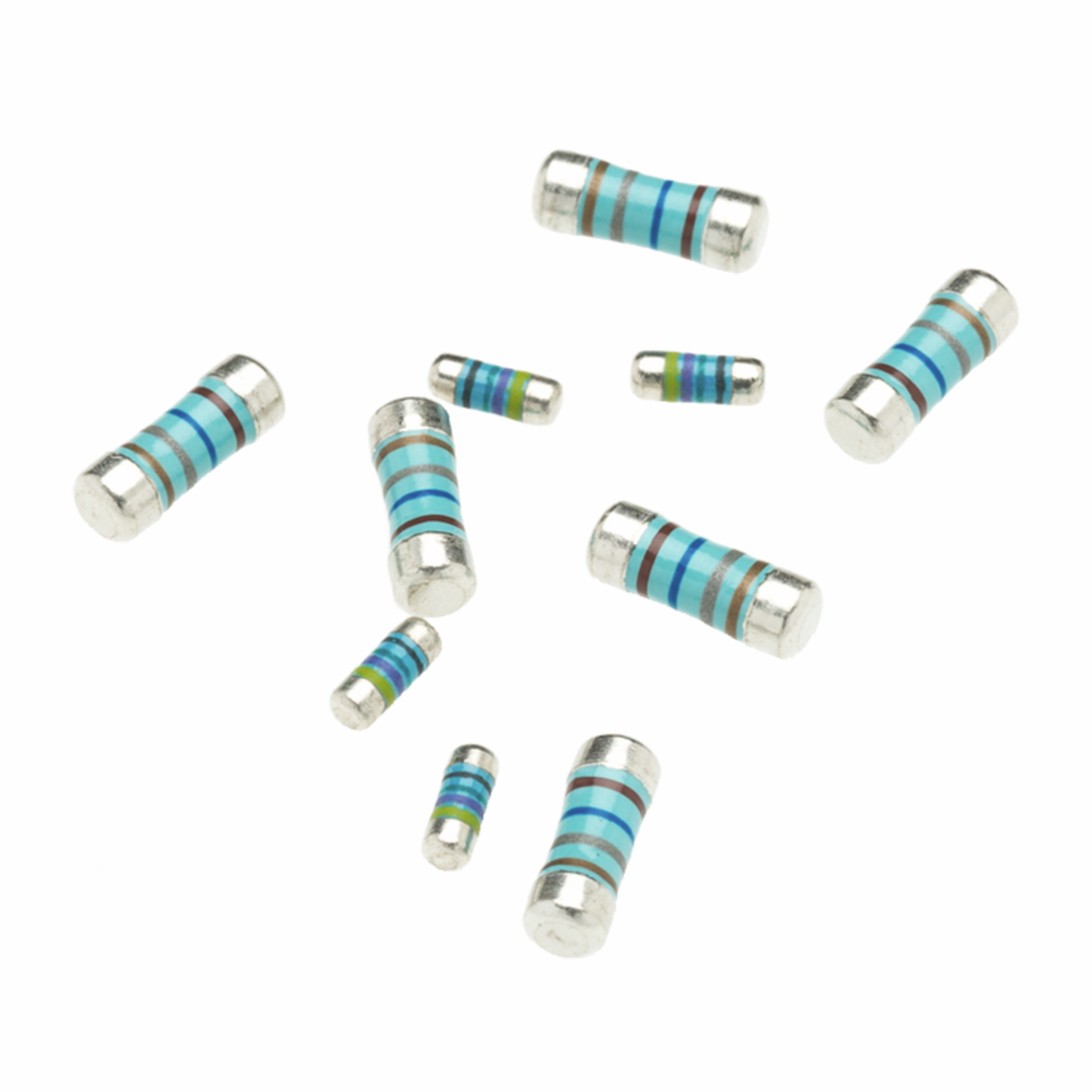

Vitrohm Precision resistor MELF ZCM SMD 0207 1W 1,5kOhm 1% AEC-Q200
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
2.700 Pcs. in stock
Planned delivery time
Ø 25 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Precision resistor MELF
- Series
- ZCM
- Housing
- 0207
- Rated power
- 1 W
- Resistance
- 1,5 kOhm
- Resistance tolerance
- 1 %
- Qualification
- AEC-Q200
- RoHS-Conform
Specifications
Open all

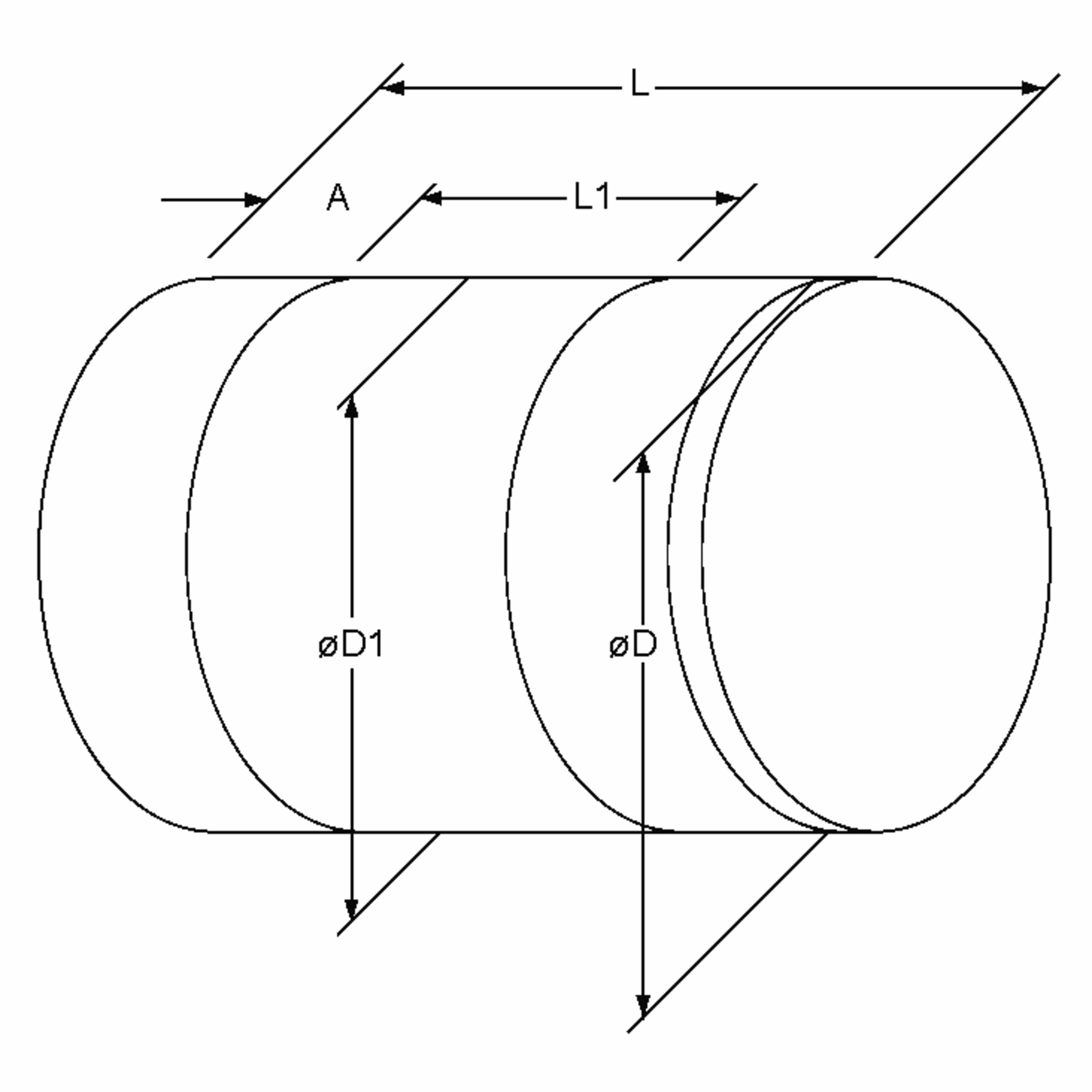

Dimensions and Weights
- Dimension: Length
- 5.8 mm
- Diameter, resistor body
- 2.2 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 155 °C
Technical Features
- Resistance value
- 1.5
- Resistance unit
- kOhm
- Resistance
- 1,5 kOhm
- Resistance tolerance
- 1 %
- Rated power
- 1 W
- Load reduction
- linear from 70°C to 155°C (0W)
- Max. Operating voltage (DC)
- 500 V DC
- Max. Operating voltage (AC)
- 500 V AC
- Temperature coefficient
- 50 ppm/°
- Failure rate
- 0,1 x 10^-9/h
- Climate category
- 55/155/56
Safety/Certifications
- Qualification
- AEC-Q200
