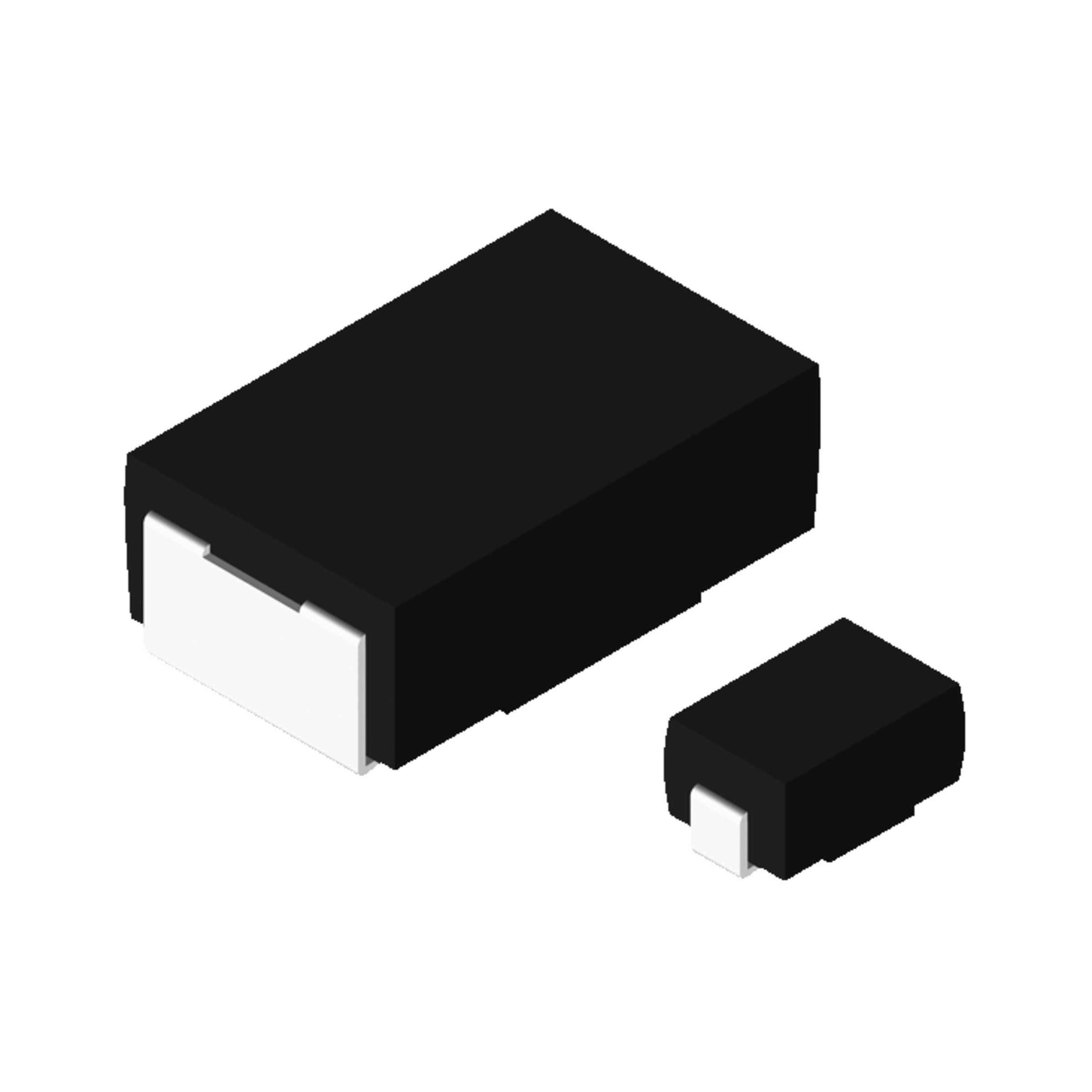

WSR2R3300FEA
Vishay SMD Metal band resistor WSR 4527 2,0W 0,33Ohm 1%
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
3.810 Pcs. in stock
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Resistance value
- 0,33 Ohm
- Resistance tolerance
- 1 %
- Rated power
- 2 W
- Housing
- 4527
- RoHS-Conform
Specifications
Open all

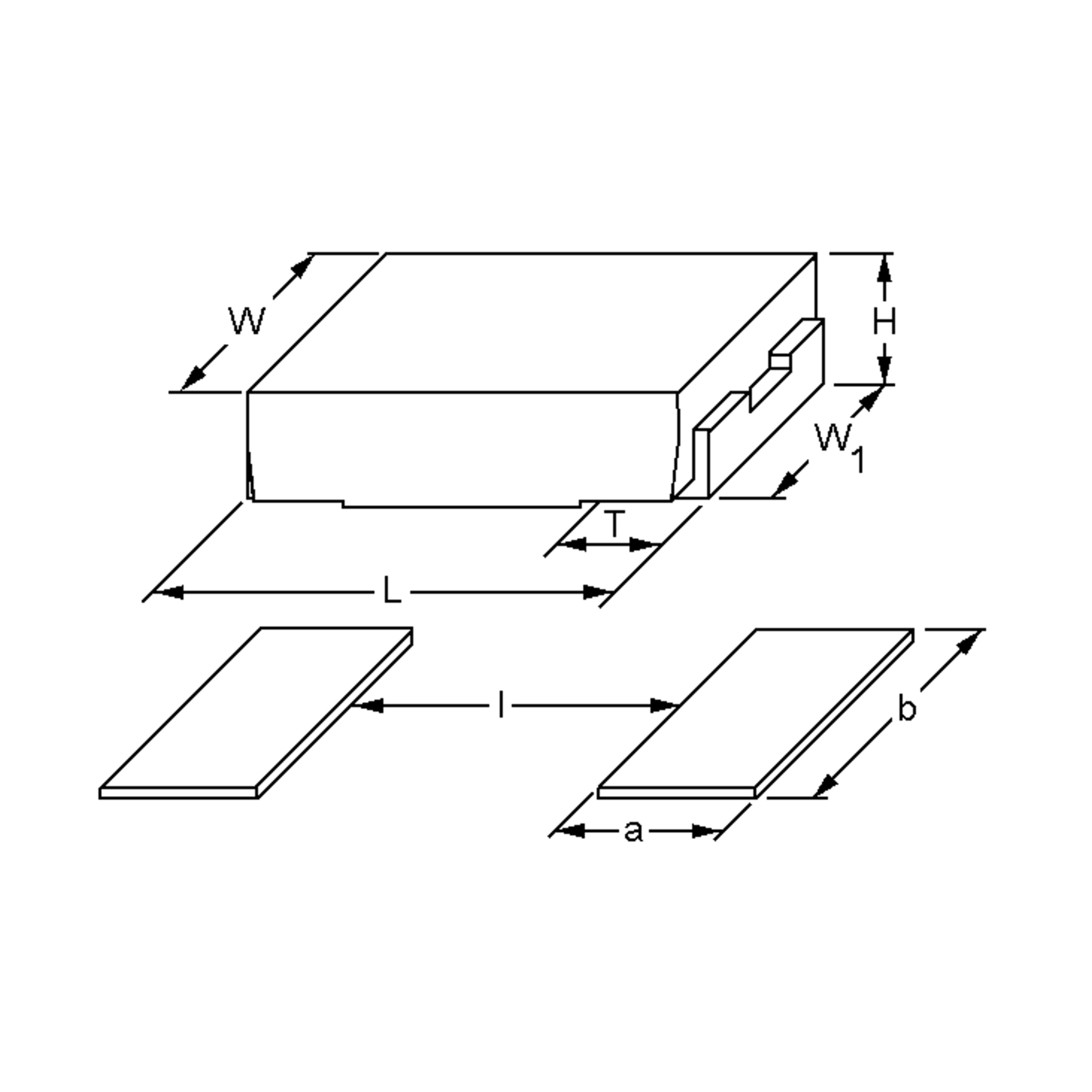

Dimensions and weights
- Dimension: Length
- 0.455 mm
- Dimension: Width
- 0.275 mm
- Dimension: Height
- 0.095 mm
- Weight
- 440 g

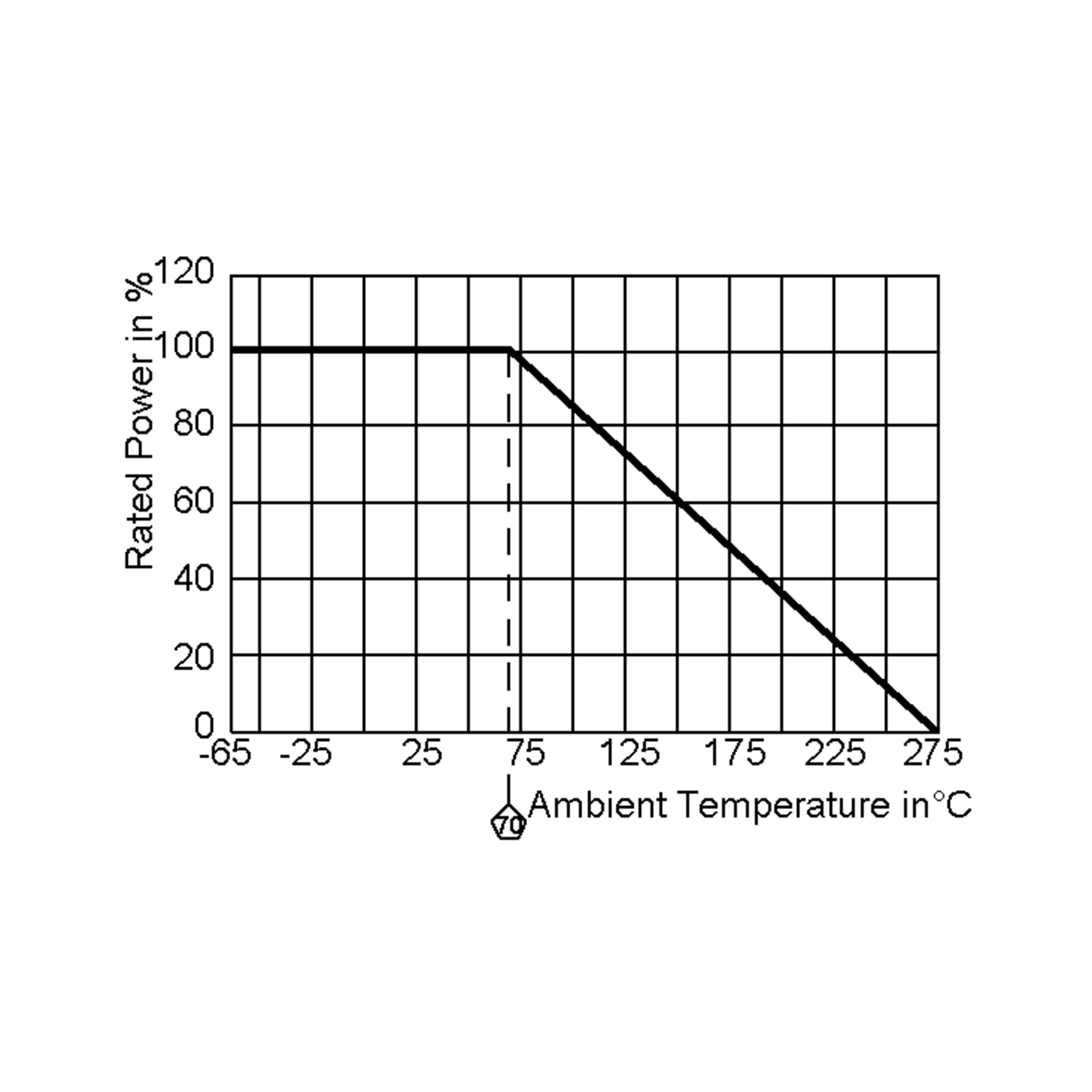

Operating conditions
- Operating Temperature Min.
- -65 °C
- Operating Temperature Max.
- 275 °C
Technical features
- Solderability
- 260°C / 10s
- Resistance value
- 0.33
- Resistance unit
- Ohm
- Resistance value
- 0,33 Ohm
- Resistance tolerance
- 1 %
- Rated power
- 2 W
- Temperature coefficient
- 110 ppm/°
- Insulation resistance
- 100 MOhm
Safety/Certifications
- Standards
- AEC-Q200-qualifiziert
