WSLT2512R0500FEB

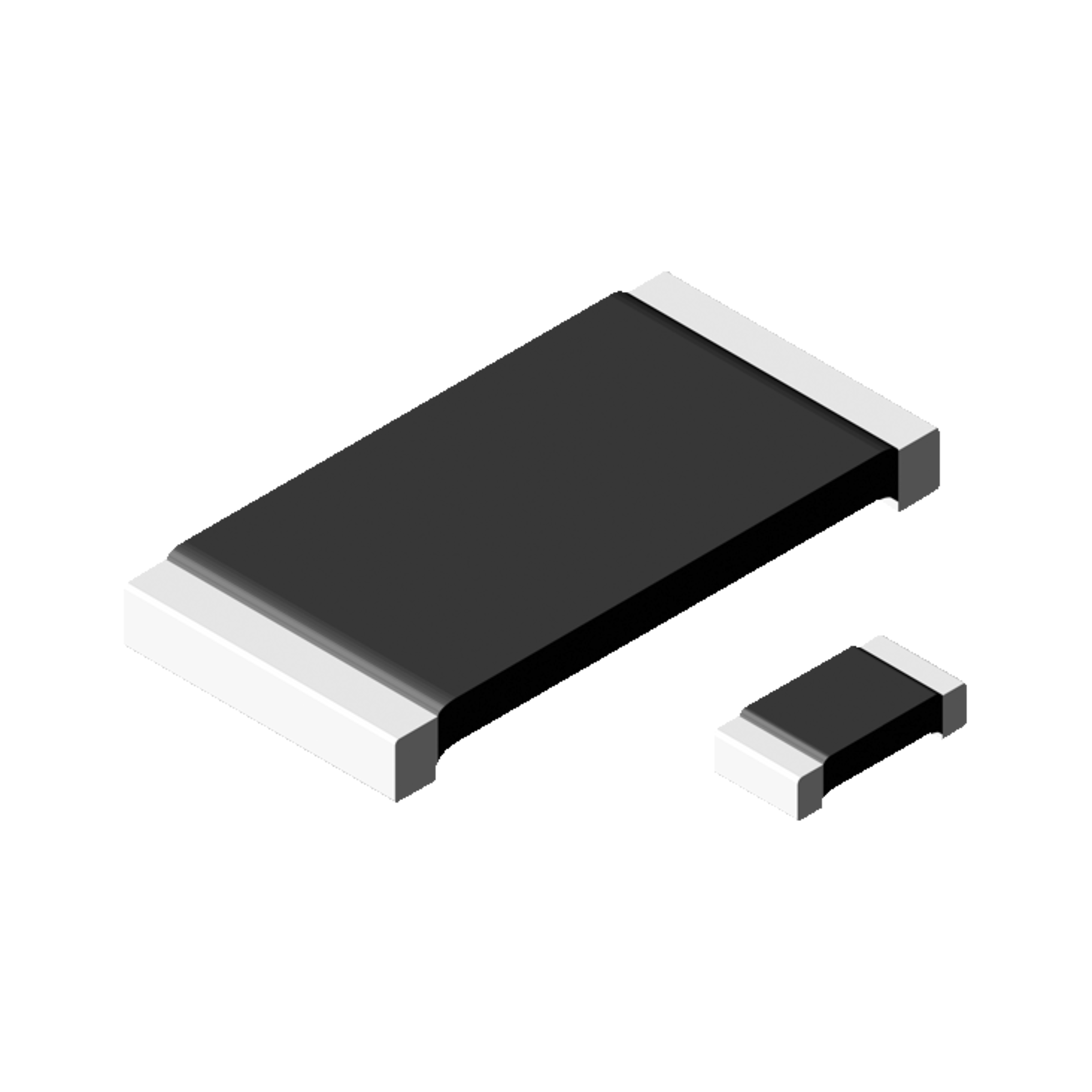

Vishay SMD Metal band resistor WSLT2512 2512 1W 1% AEC-Q200
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 01.12.2021
Abgekündigt durch Hersteller ohne Ersatz
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Resistance
- 0,05 Ohm
- Resistance tolerance
- 1 %
- Rated power
- 1 W
- Operating Temperature Min.
- -65 °C
- Operating Temperature Max.
- 275 °C
- RoHS-Conform
Specifications
Open all

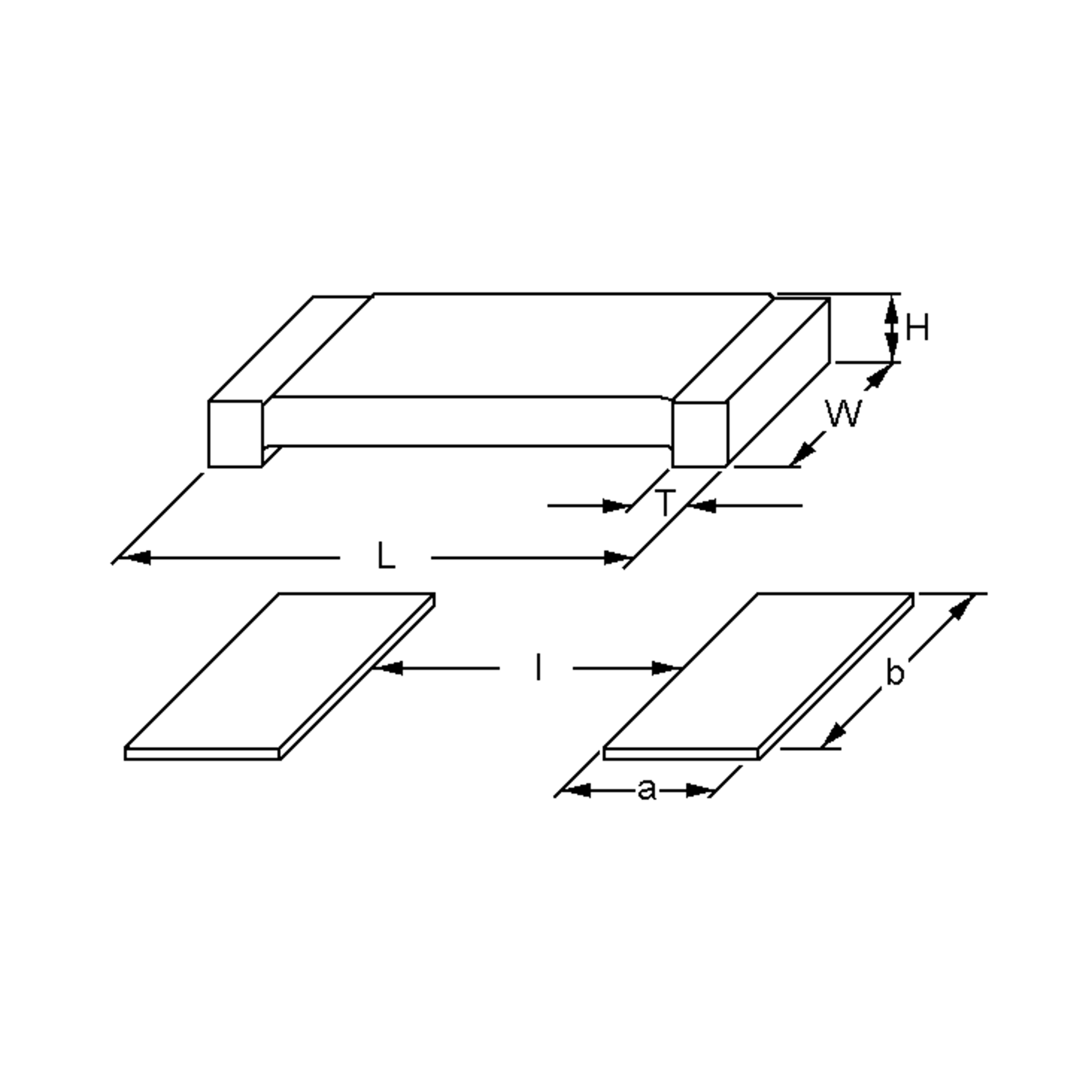

Dimensions and Weights
- Dimension: Length
- 6.35 mm
- Dimension: Width
- 3.18 mm
- Dimension: Height
- 0.635 mm
- Weight
- 63.6 g
Operating conditions
- Operating Temperature Min.
- -65 °C
- Operating Temperature Max.
- 275 °C
Technical Features
- Solderability
- 260°C / 10s
- Resistance
- 0,05 Ohm
- Resistance tolerance
- 1 %
- Rated power
- 1 W
- Temperature coefficient
- 75 ppm/°
Safety/Certifications
- Standards
- AEC-Q200-qualifiziert
