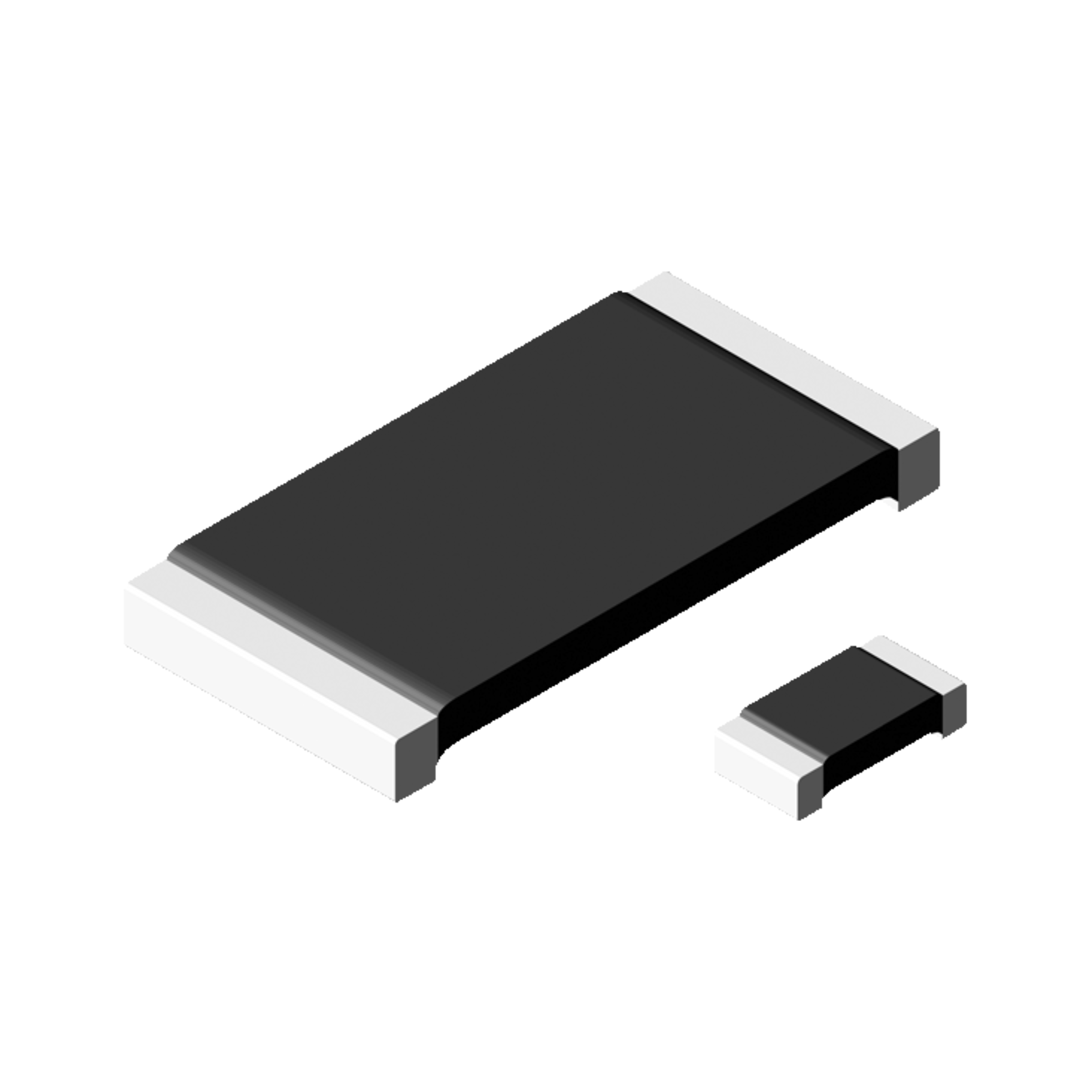

WSL2512R1500FEA
Vishay SMD Metal band resistor WSL2512 2512 1,0W 0,15Ohm 1% AEC-Q200
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
4.100 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 2000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Metal band resistor
- Series
- WSL2512
- Housing
- 2512
- Rated power
- 1 W
- Resistance
- 0,15 Ohm
- Resistance tolerance
- 1 %
- Qualification
- AEC-Q200
- RoHS-Conform
Specifications
Open all

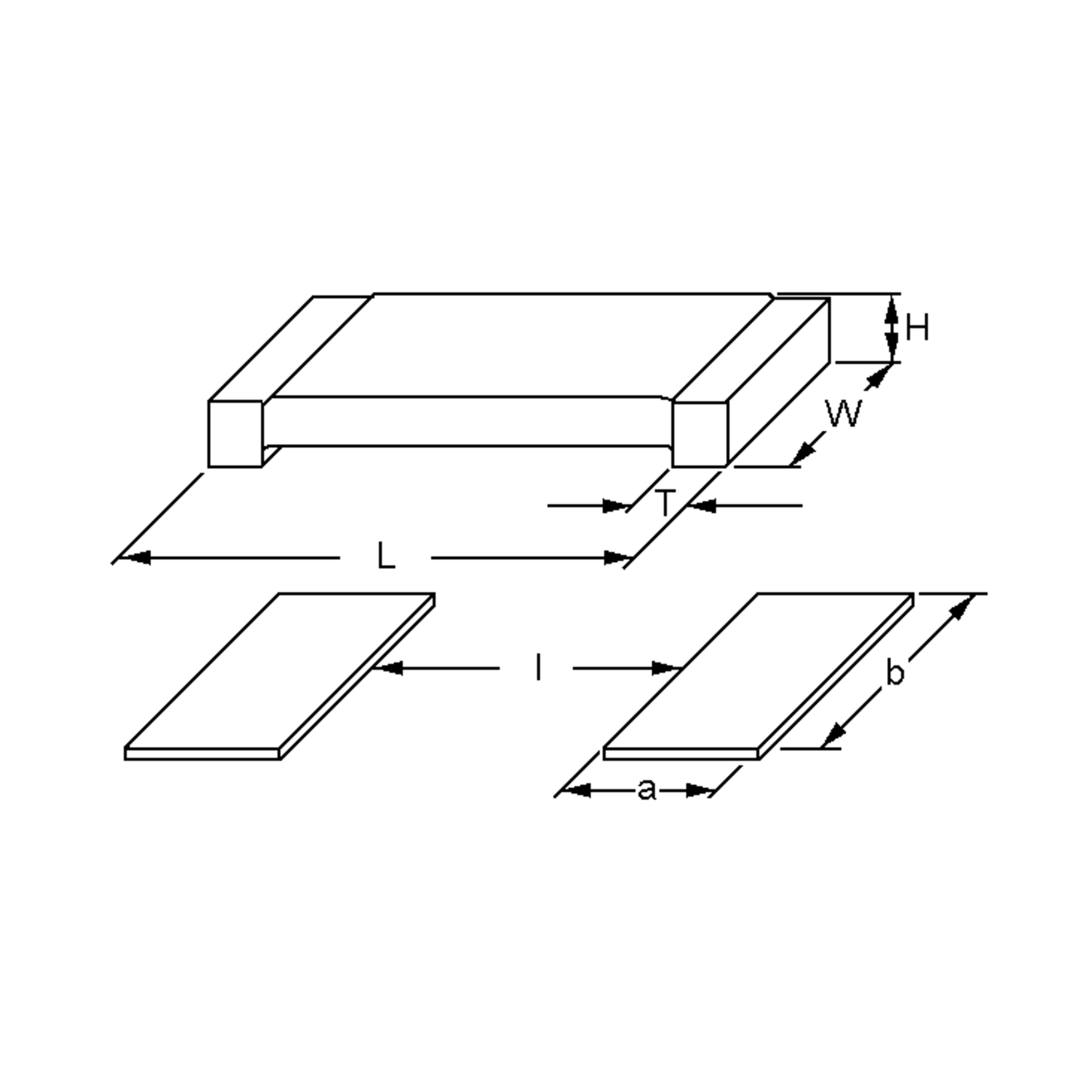

Dimensions and Weights
- Dimension: Length
- 6.35 mm
- Dimension: Width
- 3.18 mm
- Dimension: Height
- 0.635 mm
- Weight
- 0.064 g

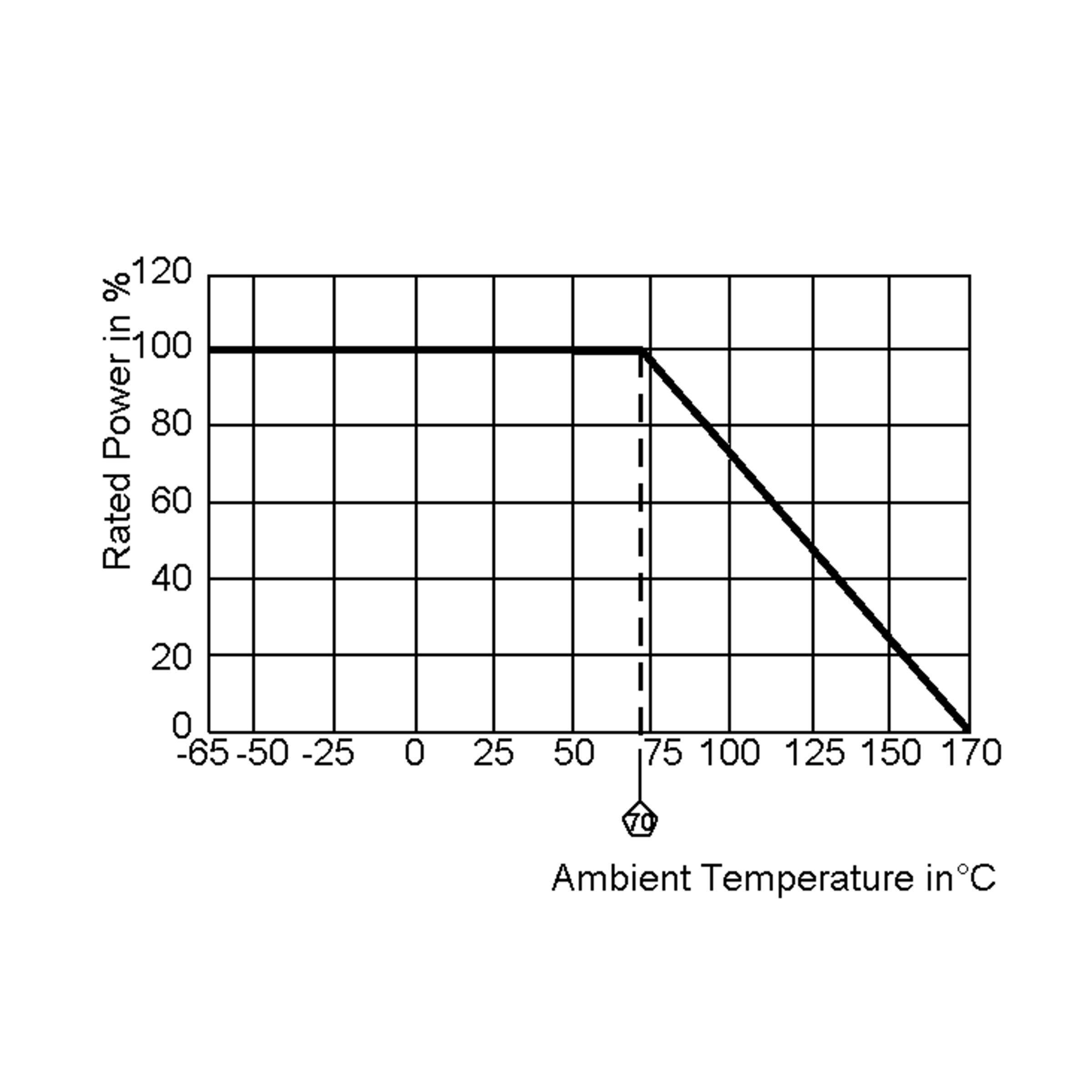

Operating conditions
- Operating Temperature Min.
- -65 °C
- Operating Temperature Max.
- 170 °C
Technical Features
- Solderability
- 260°C / 10s
- Resistance value
- 0.15
- Resistance unit
- Ohm
- Resistance
- 0,15 Ohm
- Resistance tolerance
- 1 %
- Rated power
- 1 W
- Temperature coefficient
- 75 ppm/°
Safety/Certifications
- Qualification
- AEC-Q200
Documents
PCN_DR-00002-2024-REV-0_EN.pdf
PCN_DR-00011-2024-REV-0_EN.pdf
