WSK25122L000FEA

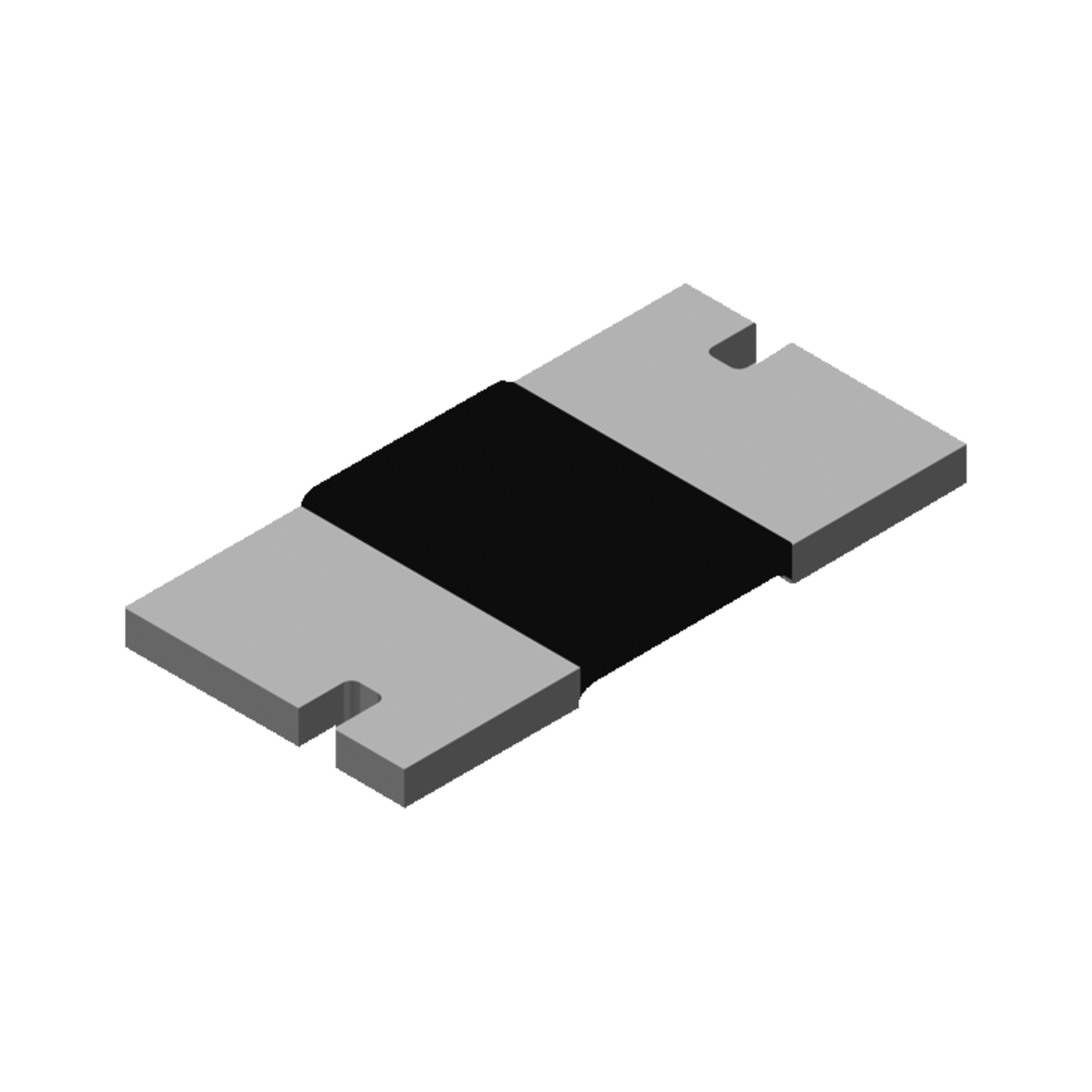

Vishay SMD Metal band resistor WSK2512 2512 1W 0,002Ohm 1% AEC-Q200
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1.940 Pcs. in stock
Planned delivery time
Ø 10 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 2000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Metal band resistor
- Series
- WSK2512
- Housing
- 2512
- Rated power
- 1 W
- Resistance
- 0,002 Ohm
- Resistance tolerance
- 1 %
- Qualification
- AEC-Q200
- RoHS-Conform
Specifications
Open all

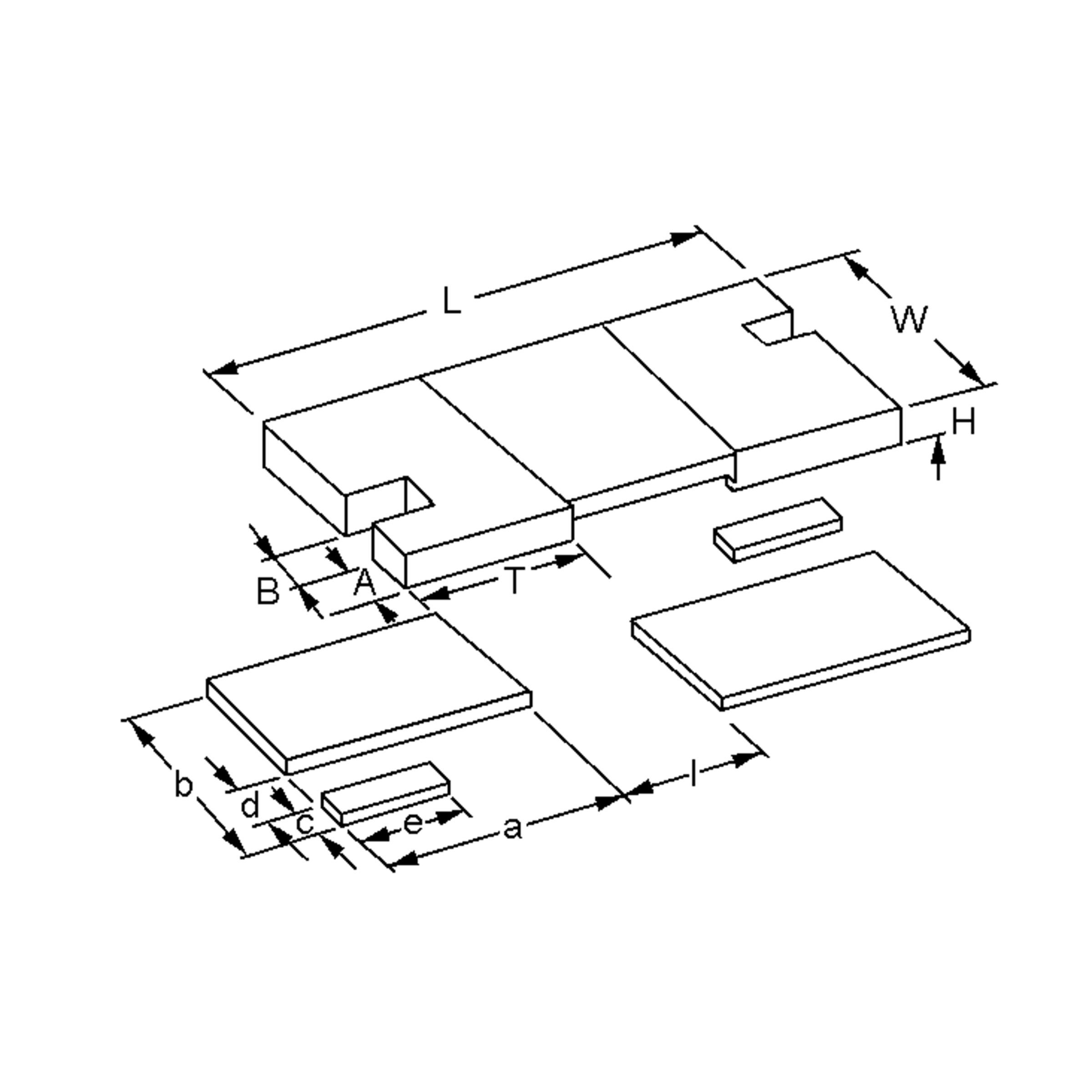

Dimensions and Weights
- Dimension: Length
- 6.35 mm
- Dimension: Width
- 3.18 mm
- Dimension: Height
- 0.635 mm
- Weight
- 63.6 g
Operating conditions
- Operating Temperature Min.
- -65 °C
- Operating Temperature Max.
- 170 °C
Technical Features
- Solderability
- 260 °C / 10 s
- Resistance value
- 0.002
- Resistance unit
- Ohm
- Resistance
- 0,002 Ohm
- Resistance tolerance
- 1 %
- Rated power
- 1 W

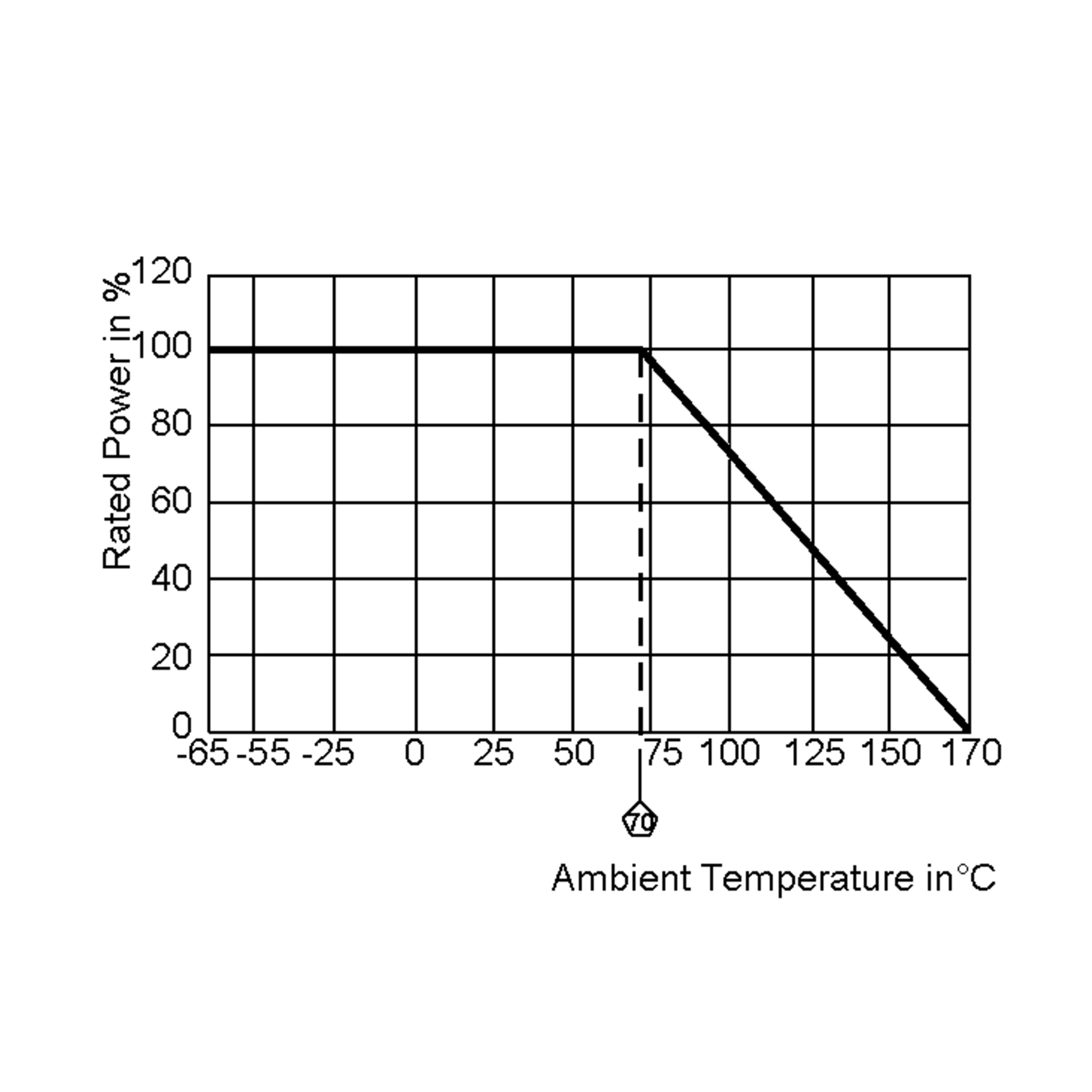

- Load reduction
- linear from 70°C to 170°C (0W)
- Temperature coefficient
- 250 ppm/°
Safety/Certifications
- Qualification
- AEC-Q200
Documents
PCN_DR-00002-2024-REV-0_EN.pdf
Other Products
All Products of the Series
