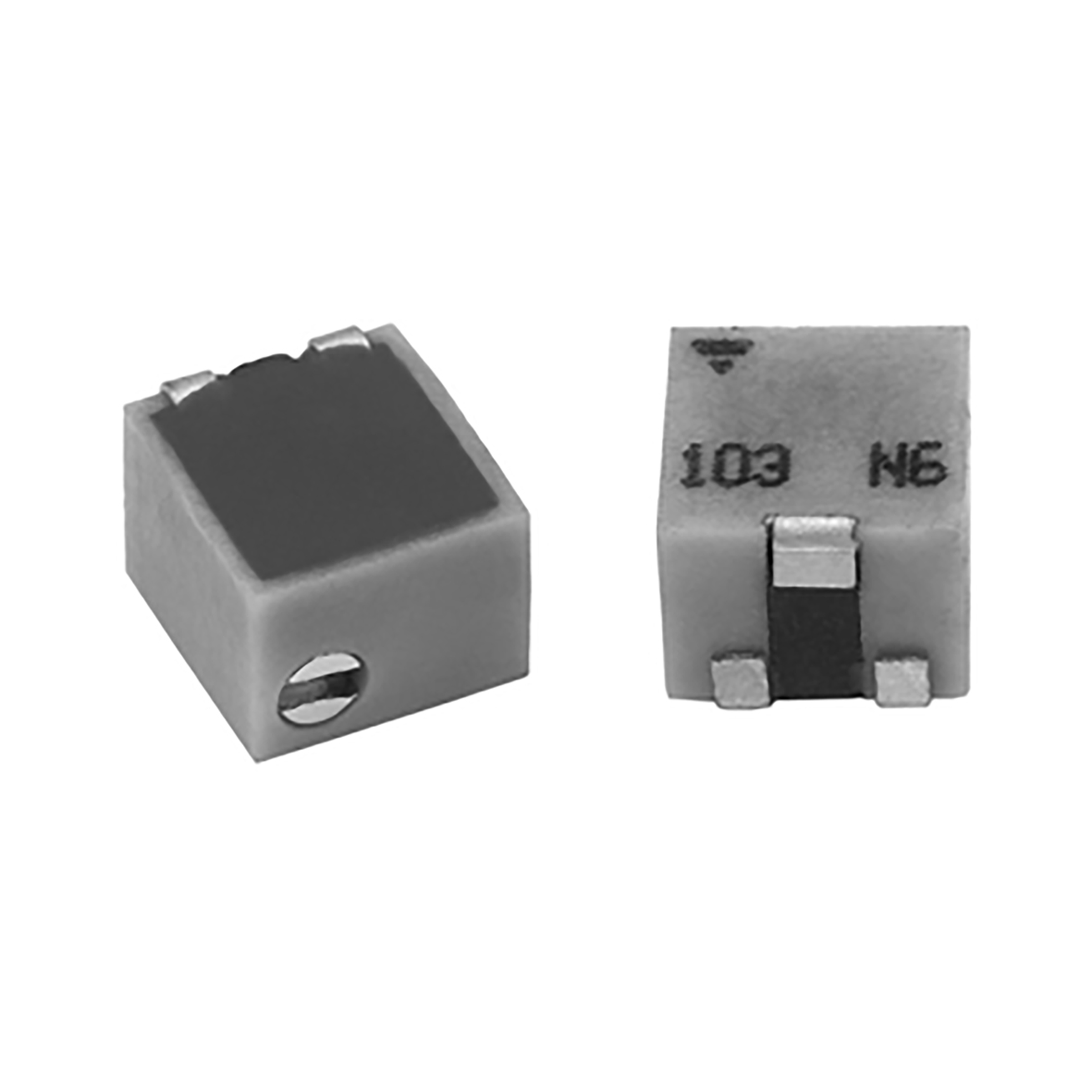

TSM4YJ502KR05
Vishay Cermet spindle trimmer TSM4 vertical 0,25W 5kOhm 10% Actuation from above slot SMD
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
40 Pcs. in stock
Next Stock Receipt
Week 46/2024
250 Pcs.
250 Pcs.
Planned delivery time
Ø 9 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 250 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Resistance value
- 5 kOhm
- Resistance tolerance
- 10 %
- Rated power
- 0.25 W
- Housing
- vertical
- RoHS-Conform
Specifications
Open all

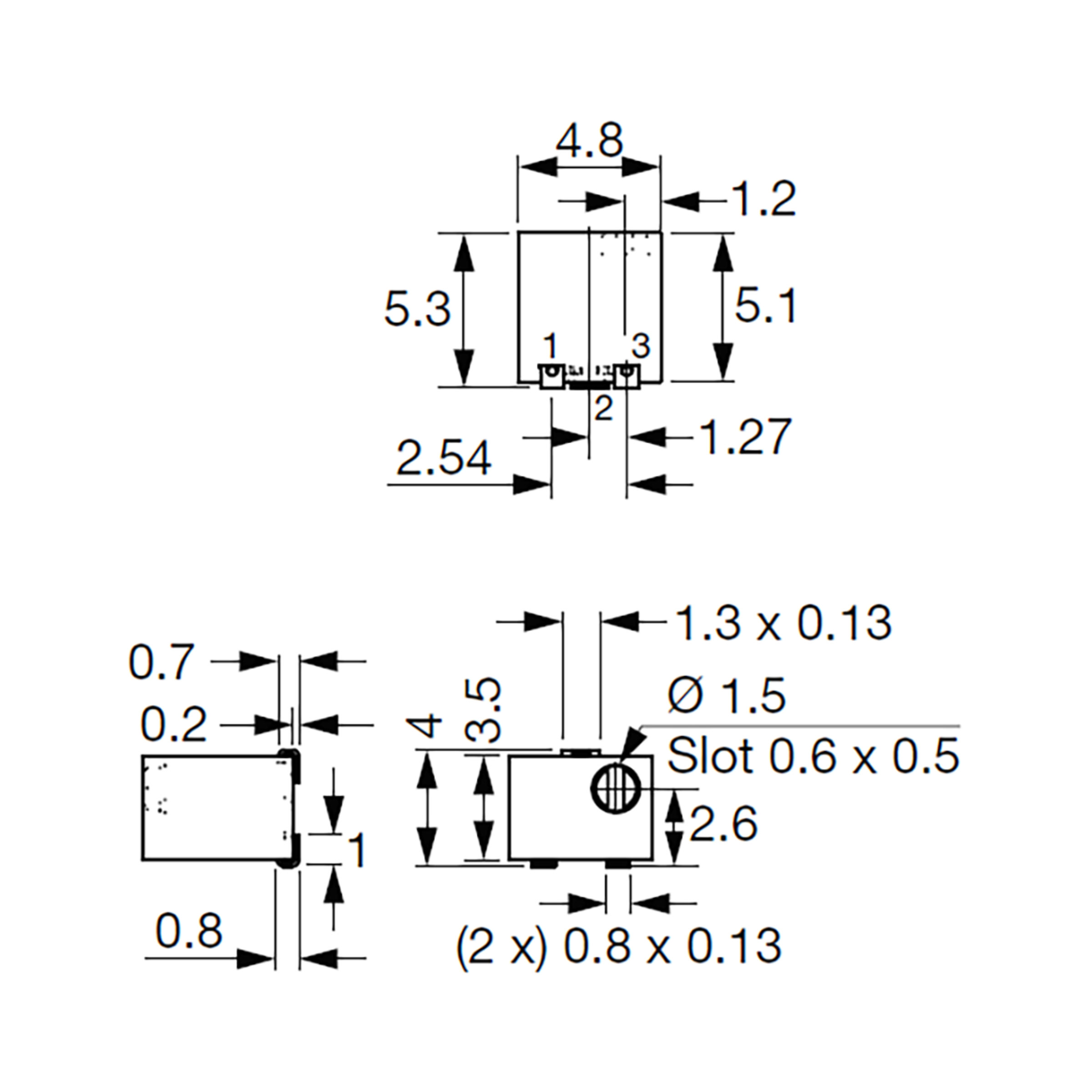

Dimensions and weights
- Dimension: Length
- 4.8 mm
- Dimension: Width
- 3.5 mm
- Dimension: Height
- 5.3 mm
- Weight
- 0.28 g
- Shaft
- slot
Operating conditions
- Operating Temperature Min.
- -65 °C
- Operating Temperature Max.
- 150 °C
Technical features
- Resistance value
- 5
- Resistance unit
- kOhm
- Resistance value
- 5 kOhm
- Resistance tolerance
- 10 %
- Resistance curve
- linear
- Rated power
- 0.25 W
- Max. Operating voltage (DC)
- 35.3 V DC
- Max. Operating voltage (AC)
- 35.3 V AC
- Hold-off Voltage
- 300 V
- Dielectric strength (RMS)
- 600 V
- Through-current, max.
- 7.1 mA
- Temperature coefficient, typ.
- 100 ppm/°
- Insulation resistance
- 100 MOhm
- Service life
- 200 Zyklen
- Climate category
- 55/125/56
Mechanical features
- Actuating force
- 1,8 Ncm
- Actuation
- from above
- travel mechanical
- 15 °
- travel electrical
- 11 °
Safety/Certifications
- Standards
- CECC41000
- Protection Class
- IP67
