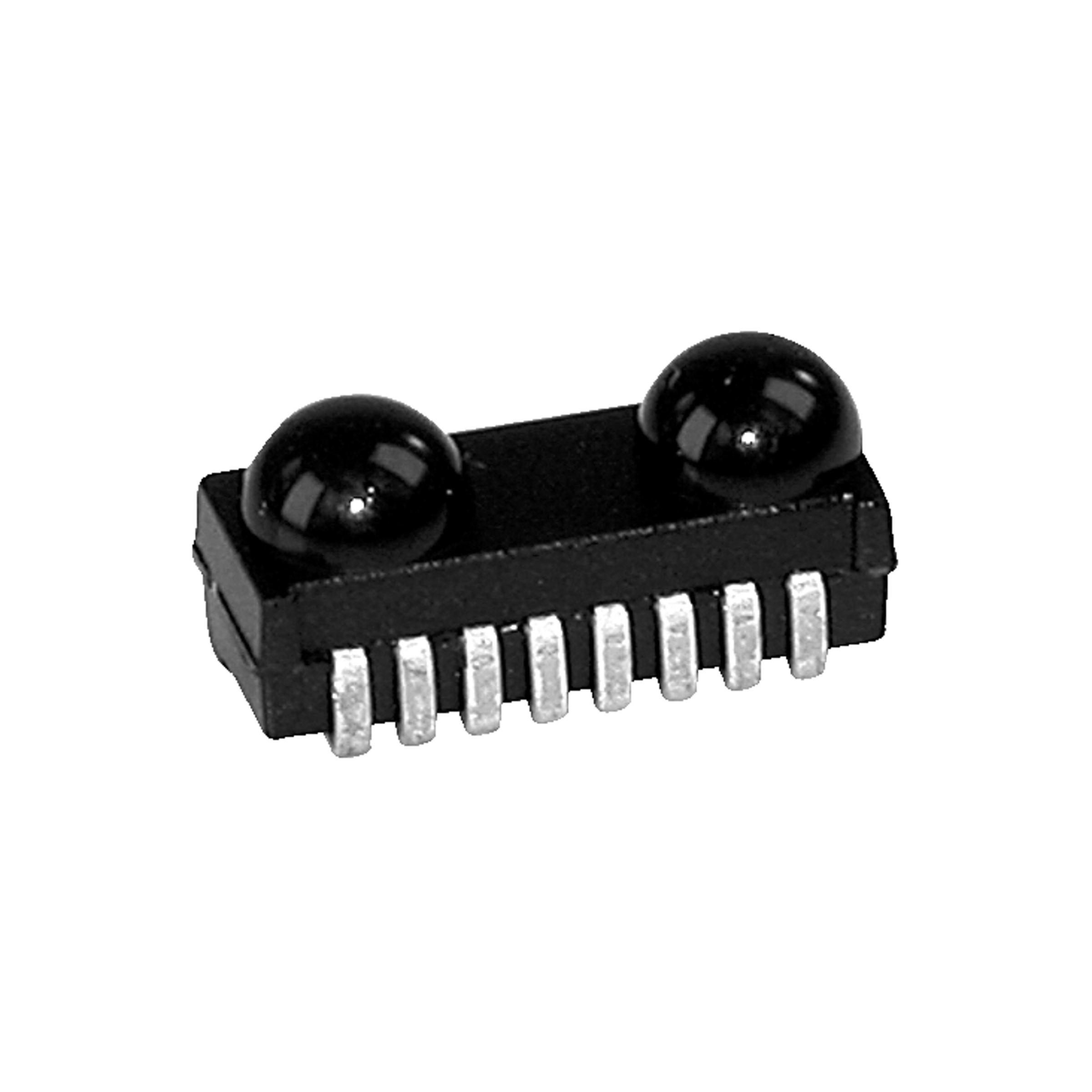

TFDU4101-TR3

Vishay Infrarot Transceiver 115.2 2,5 mA Side View

Manufacturer Part No.
TFDU4101-TR3
Schukat Part No.
TFDU4101
Manufacturer
Vishay
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

1.170 Pcs. in stock

Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Supply Voltage Min.
2.4 V
Supply Voltage Max.
5.5 V
Transmission Speed
115.2
Supply Current Max.
2.5 mA
Manufacturer Package
Side View
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Vishay
Type
  • Infrarot Transceiver
Series
  • TFDU401
Product group
  • X4375 Vishay IrDA Transceivers and Interfaces TFDU_, TOIM_
Packaging
  • Reel
Assembly Type
  • SMD/SMT
Pin Count
  • 8
Manufacturer Package
  • Side View
Features

  • IrDA transceiver for wireless serial (SIR) communication, compatible to IrDA standard, wide supply voltage range (2.4V...5.5V), IrDA data transfer rates up to 115.2kb/s (SIR), low power consumption, BabyFace SMD package, can be equipped for both side view and top view applications

Operating conditions

Operating Temperature Min.
  • -30 °C
Operating Temperature Max.
  • 85 °C
Storage Temperature Min.
  • -30 °C
Storage Temperature Max.
  • 85 °C

Electrical properties

Transmission Speed
  • 115.2
Supply Voltage Min.
  • 2.4 V
Supply Voltage Max.
  • 5.5 V
Supply Current Max.
  • 2.5 mA
