T7YA103MT20
Vishay Cermet trimmer T7 vertical 0,5W 10kOhm 20% Actuation from above arrow slot P5mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
550 Pcs. in stock
Next Stock Receipt
Week 23/2026
200 Pcs.
200 Pcs.
Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable knurled discs and plug-in-axles. - Type
- Cermet trimmer
- Series
- T7
- Housing
- vertical
- Actuation
- from above
- Rotation angle, mechanical
- 300 °
- Rated power
- 0.5 W
- Resistance
- 10 kOhm
- Resistance tolerance
- 20 %
- RoHS-Conform
Specifications
Open all

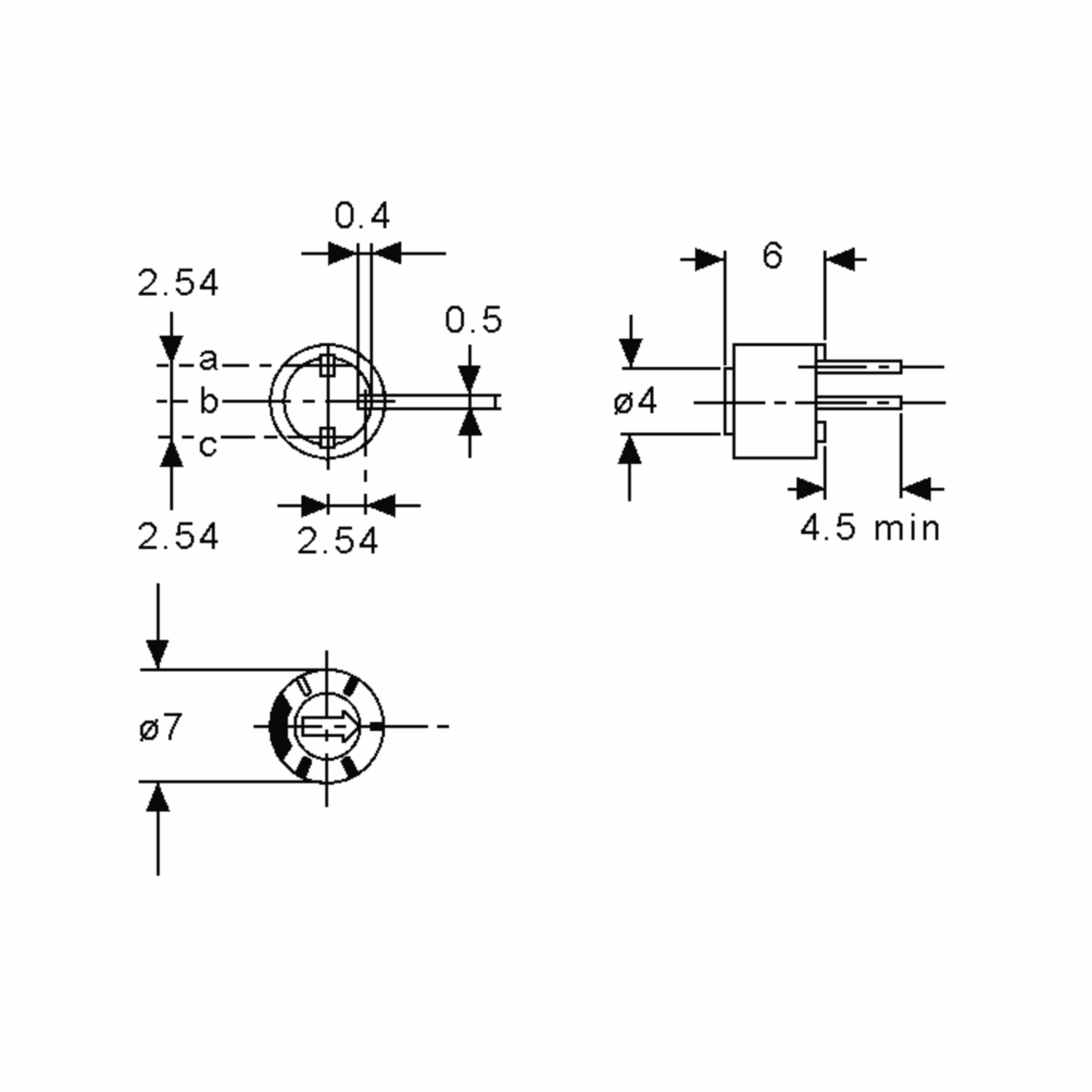

Dimensions and Weights
- Dimension: Height
- 10.5 mm
- Pitch
- 5 mm
- Weight
- 0.5 g
- Diameter, housing
- 7 mm
- Shaft
- arrow slot
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 125 °C
Technical Features
- Resistance value
- 10
- Resistance unit
- kOhm
- Resistance
- 10 kOhm
- Resistance tolerance
- 20 %
- Resistance curve
- linear
- Rated power
- 0.5 W
- Hold-off Voltage
- 250 V
- Temperature coefficient
- 100 ppm/°
- Insulation resistance
- 10^6 MOhm
- Climate category
- 55/100/56
Mechanical Features
- Actuating force
- 1,5 Ncm
- Actuation
- from above
- Rotation angle, mechanical
- 300 °
- Rotation angle, electric
- 270 °
- Impact resistance
- 3 Ncm
Safety/Certifications
- Standards
- CECC 41100
- Protection Class
- IP64
