T55T686M6R3C0070
Vishay Polymer-tantalum capacitor vPolyTan T55 68 µF 20 % 6,3 V SMD
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
3.000 Pcs.
3.000 Pcs.
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 3000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 3000 or multiple of 3000)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Polymer-tantalum capacitor vPolyTan
- Capacity
- 68 µF
- Capacity tolerance
- 20 %
- Rated voltage DC
- 6.3 V
- Assembly Type
- SMD
- Housing
- T
- RoHS-Conform
Specifications
Open all

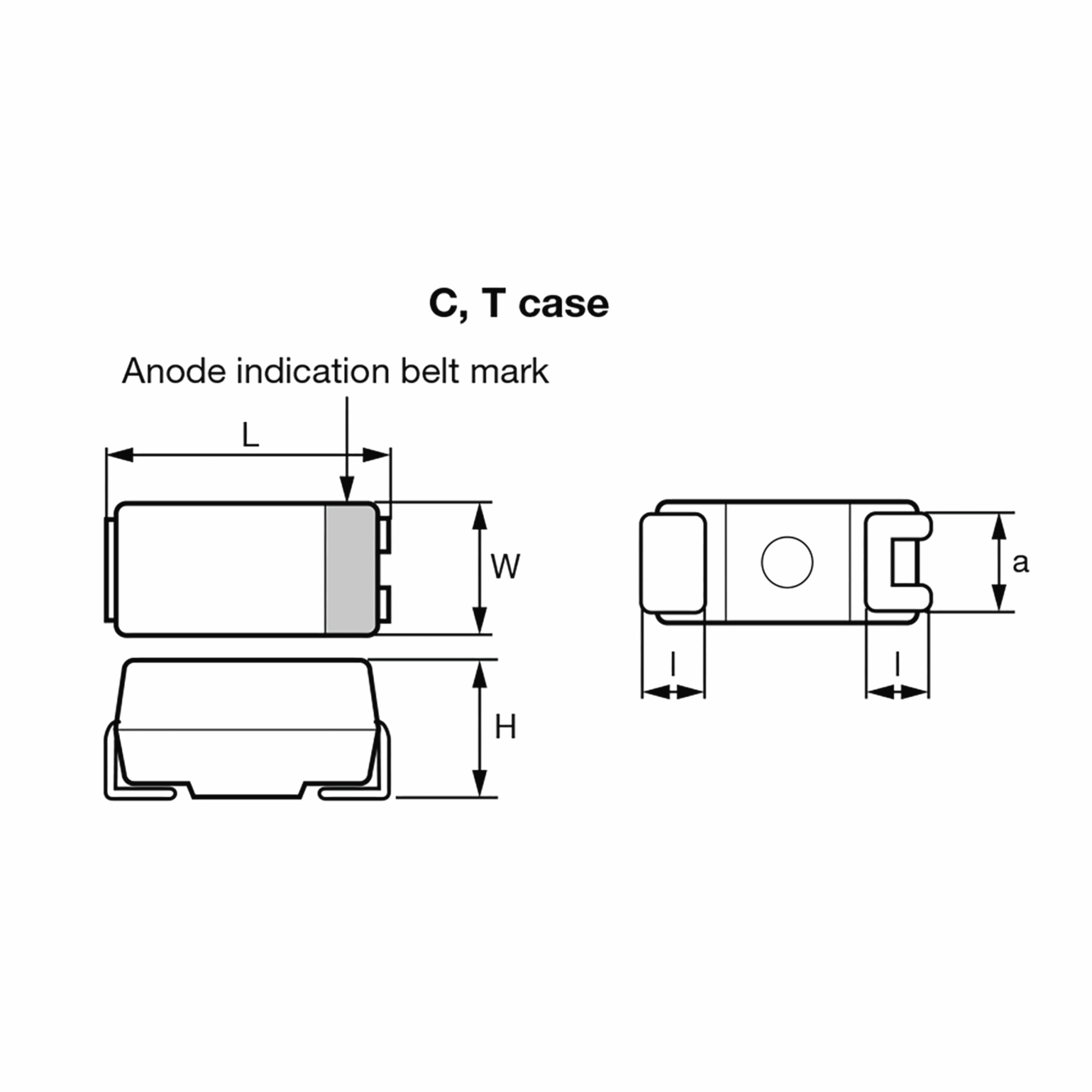

Dimensions and weights
- Dimension: Length
- 3.5 mm
- Dimension: Width
- 2.8 mm
- Dimension: Height
- 1.2 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 105 °C
Technical features
- Capacity
- 68 µF
- Capacity
- 68
- Capacity unit
- µF
- Capacity tolerance
- 20 %
- Loss factor tan δ
- 10 %
- Ripple Current
- 1,22 A
- Equivalent series resistance (ESR)
- 70 mOhm
- Rated voltage DC
- 6.3 V
- Service life
- 2.000 h
