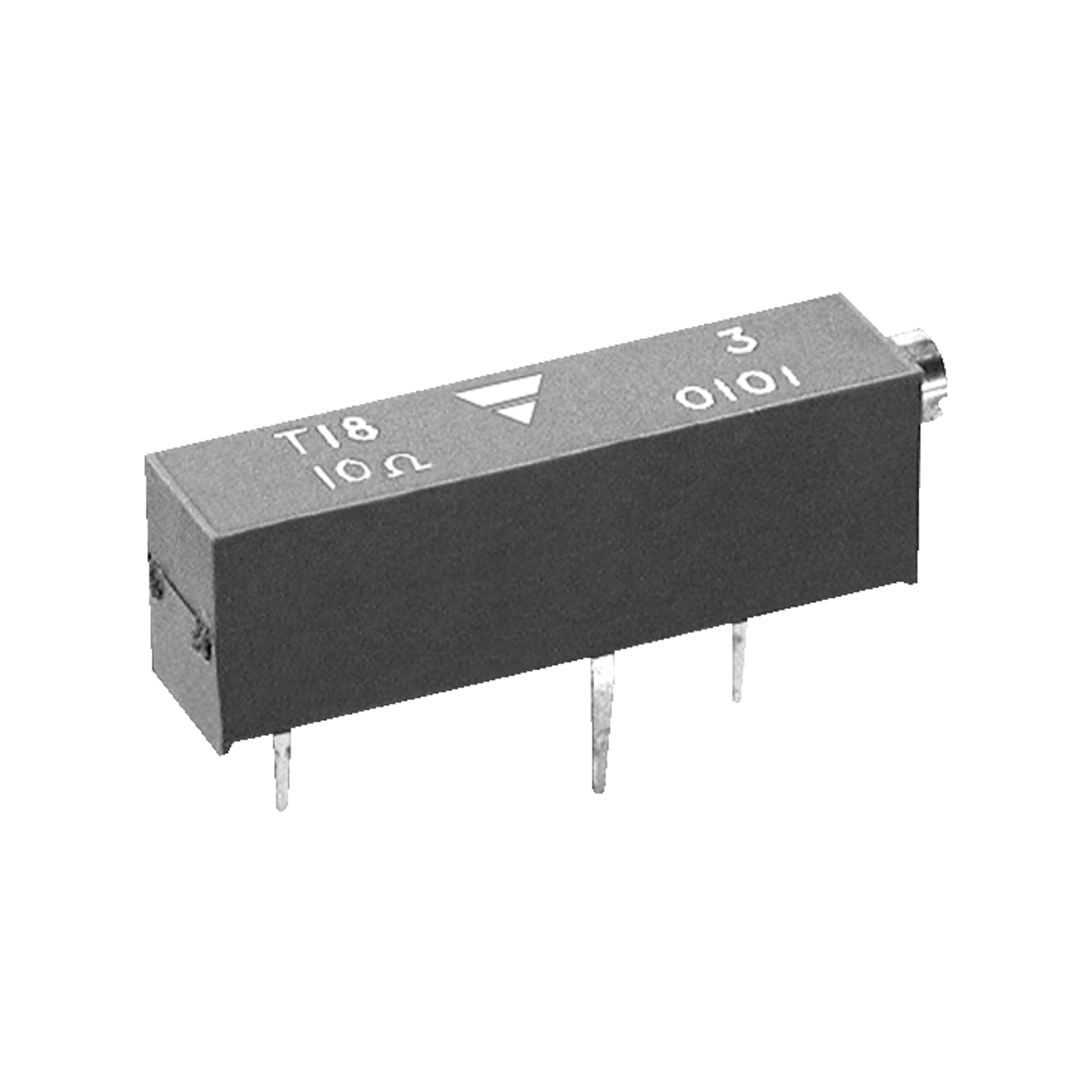

T18500KT10
Vishay Cermet spindle trimmer T18 vertical 0,75W 50Ohm 10% Actuation from the side slot P2,54mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1.025 Pcs. in stock
Planned delivery time
Ø 9 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Resistance value
- 50 Ohm
- Resistance tolerance
- 10 %
- Rated power
- 0.75 W
- Housing
- vertical
- Pitch
- 2.54 mm
- RoHS-Conform
Specifications
Open all

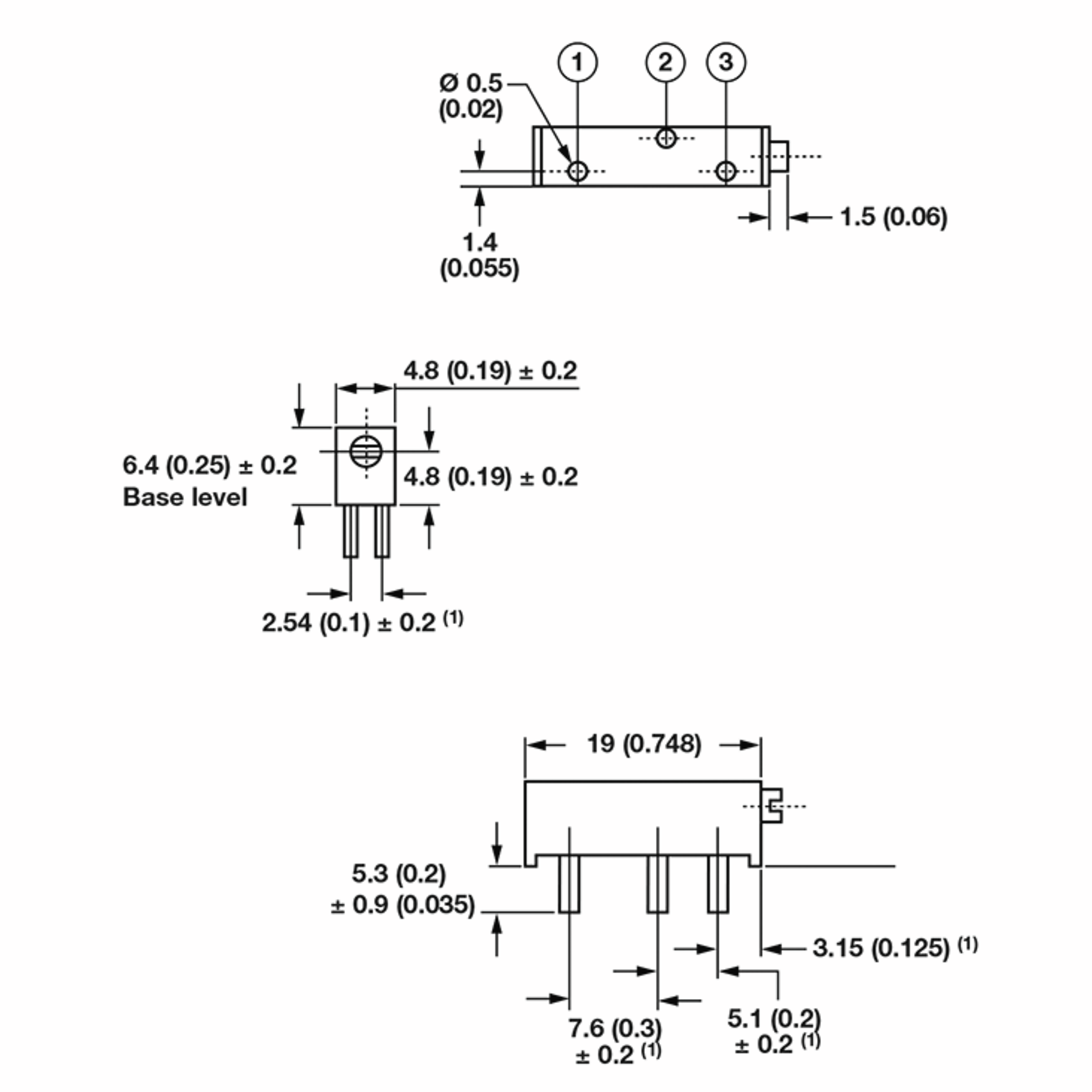

Dimensions and weights
- Dimension: Length
- 19 mm
- Dimension: Width
- 4.8 mm
- Dimension: Height
- 11.7 mm
- Pitch
- 2.54 mm
- Weight
- 1.2 g
- Shaft
- slot
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 125 °C
Technical features
- Resistance value
- 50
- Resistance unit
- Ohm
- Resistance value
- 50 Ohm
- Resistance tolerance
- 10 %
- Resistance curve
- linear

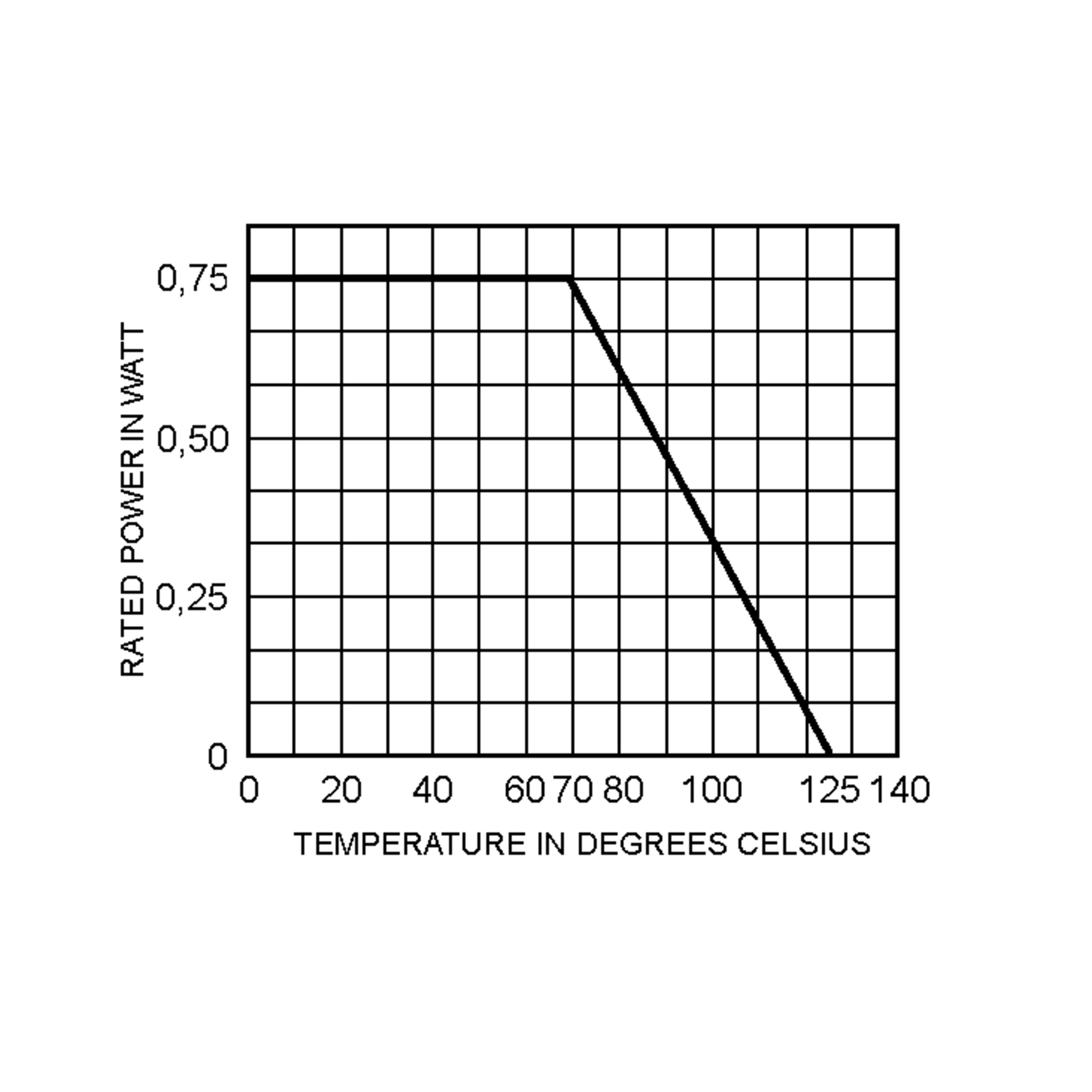

- Rated power
- 0.75 W
- Hold-off Voltage
- 400 V
- Dielectric strength (RMS)
- 1,000 V
- Temperature coefficient, typ.
- 70 ppm/°
- Insulation resistance
- 10^3 MOhm
- Climate category
- 55/125/4
Mechanical features
- Actuation
- from the side
Safety/Certifications
- Standards
- MIL-R-22097, CECC 41100, LNZ
- Protection Class
- IP67
