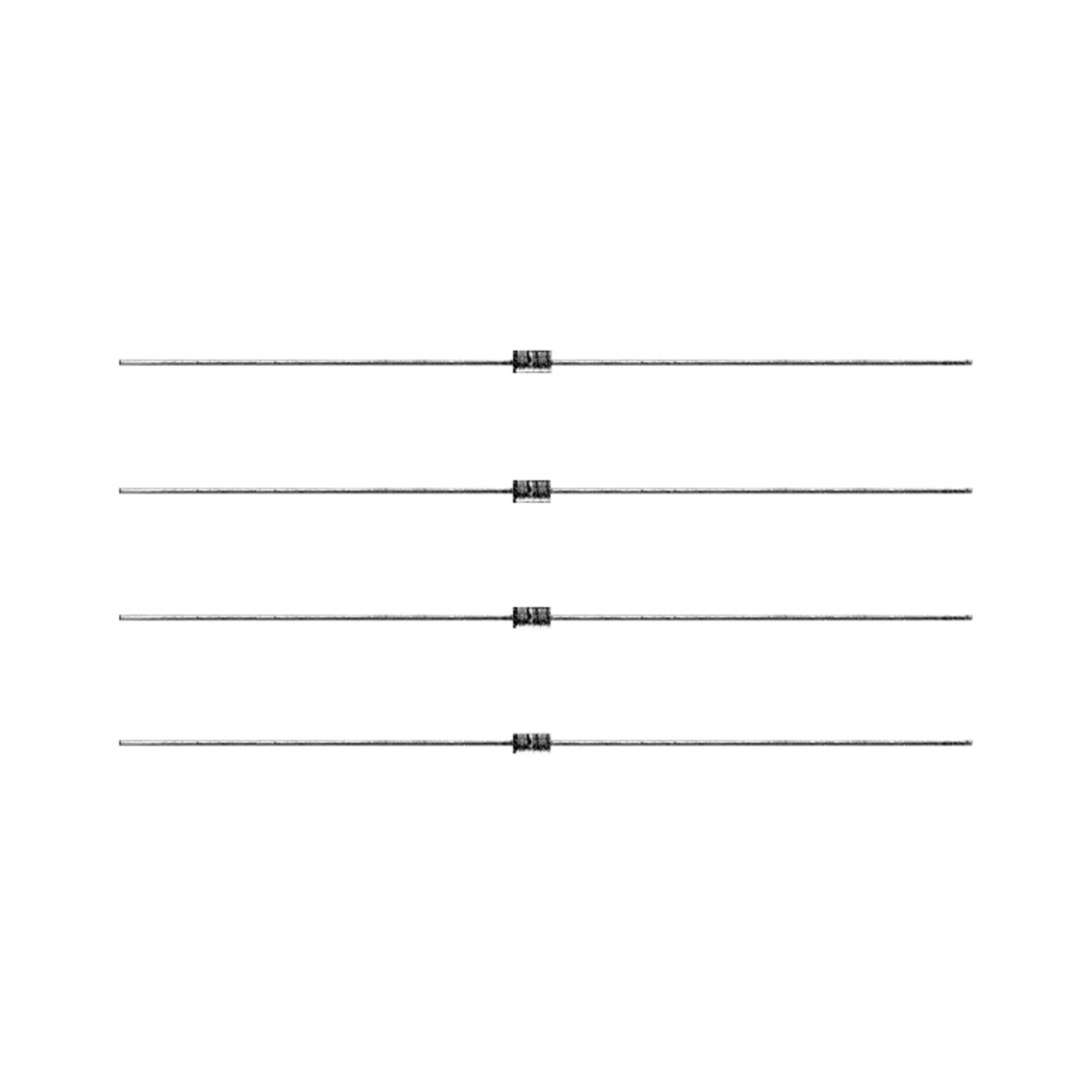

SD103B-TAP
Vishay SMD/SMT Schottky Diode 0,6V 200mA DO-35
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 20 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50000 or multiple of 50000)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- (Uf) Forward Voltage
- 0.6 V
- (If) Forward Current
- 200 mA
- (Urrm) Peak Recurrent Reverse Voltage Max.
- 30 V
- (Ir) Reverse Current
- 5,000 nA
- RoHS-Conform
Specifications
Open all
Operating conditions
- Barrier Layer Temperature, max. (TJ)
- 125 °C
- Storage Temperature Min.
- -65 °C
- Storage Temperature Max.
- 125 °C
Electrical Properties
- (Uf) Forward Voltage
- 0.6 V
- (If) Forward Current
- 200 mA
- (Urrm) Peak Recurrent Reverse Voltage Max.
- 30 V
- (Ir) Reverse Current
- 5,000 nA
- Reset Time
- 10 ns
Conformity
- REACH Notice
- REACh Art. 33: contains Lead CAS# 7439-92-1
Documents
PCN_DD-023-2024-REV-0_EN.pdf
