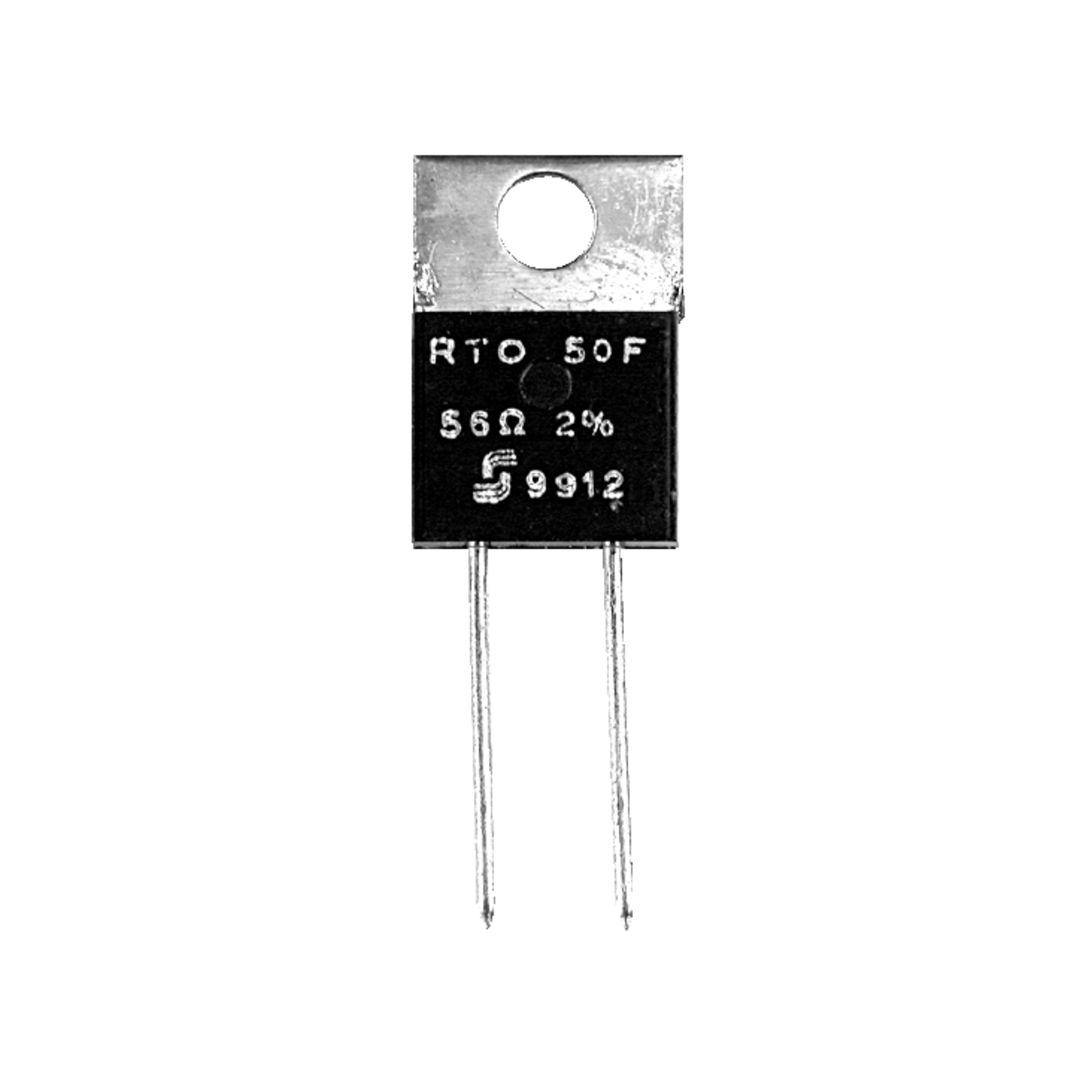

RTO050F15R00JTE1
Vishay THT thick film resistor 50W 15Ohm 5% TO220 5,08mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
126 Pcs. in stock
Planned delivery time
Ø 9 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 2 or multiple of 2)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Resistance value
- 15 Ohm
- Resistance tolerance
- 5 %
- Rated power
- 50 W
- Housing
- TO220
- Pitch
- 5.08 mm
- RoHS-Conform
Specifications
Open all

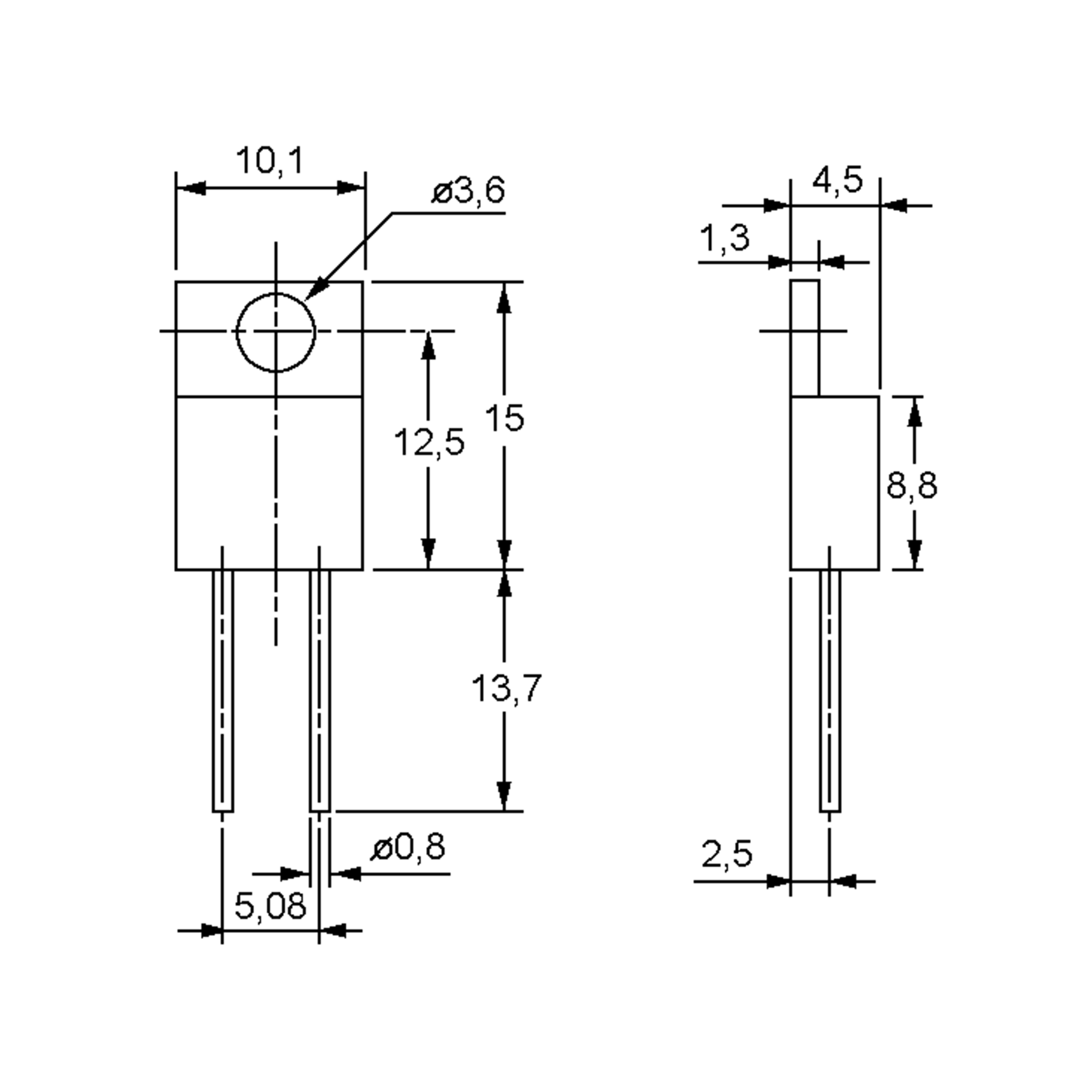

Dimensions and weights
- Dimension: Length
- 10.1 mm
- Dimension: Width
- 4.5 mm
- Dimension: Height
- 15 mm
- Pitch
- 5.08 mm
- Total height
- 28.7 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 155 °C
Technical features
- Resistance value
- 15
- Resistance unit
- Ohm
- Resistance value
- 15 Ohm
- Resistance tolerance
- 5 %

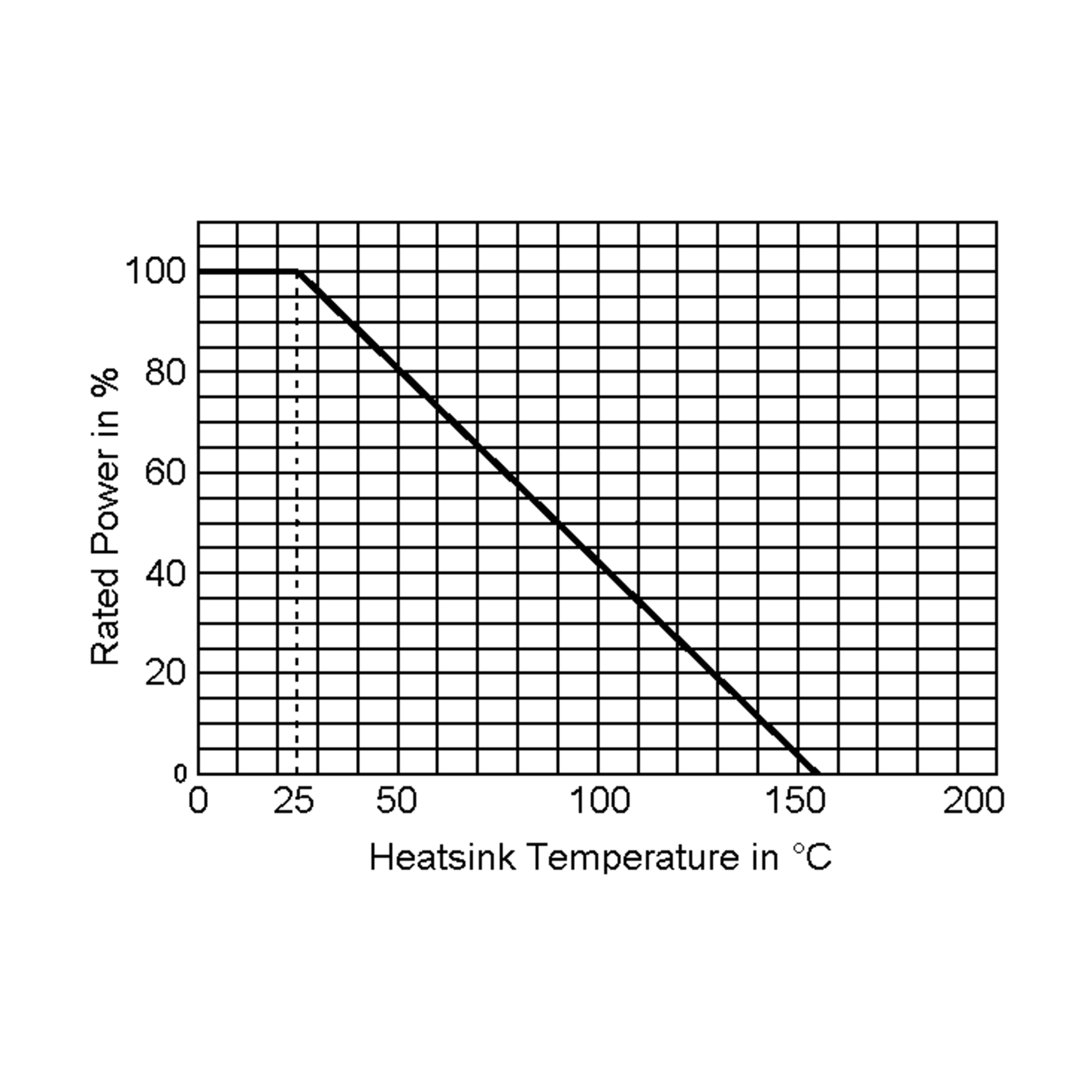

- Rated load capacity, with heat sink
- 50 W
- Rated load capacity, without heat sink
- 2.25 W
- Rated power
- 50 W
- Max. Operating voltage (DC)
- 300 V DC
- Max. Operating voltage (AC)
- 300 V AC
- Test voltage
- 2,000 V
- Temperature coefficient
- 150 ppm/°
- Thermal resistance
- 2.6 K/W
- Climate category
- 55/155/156
