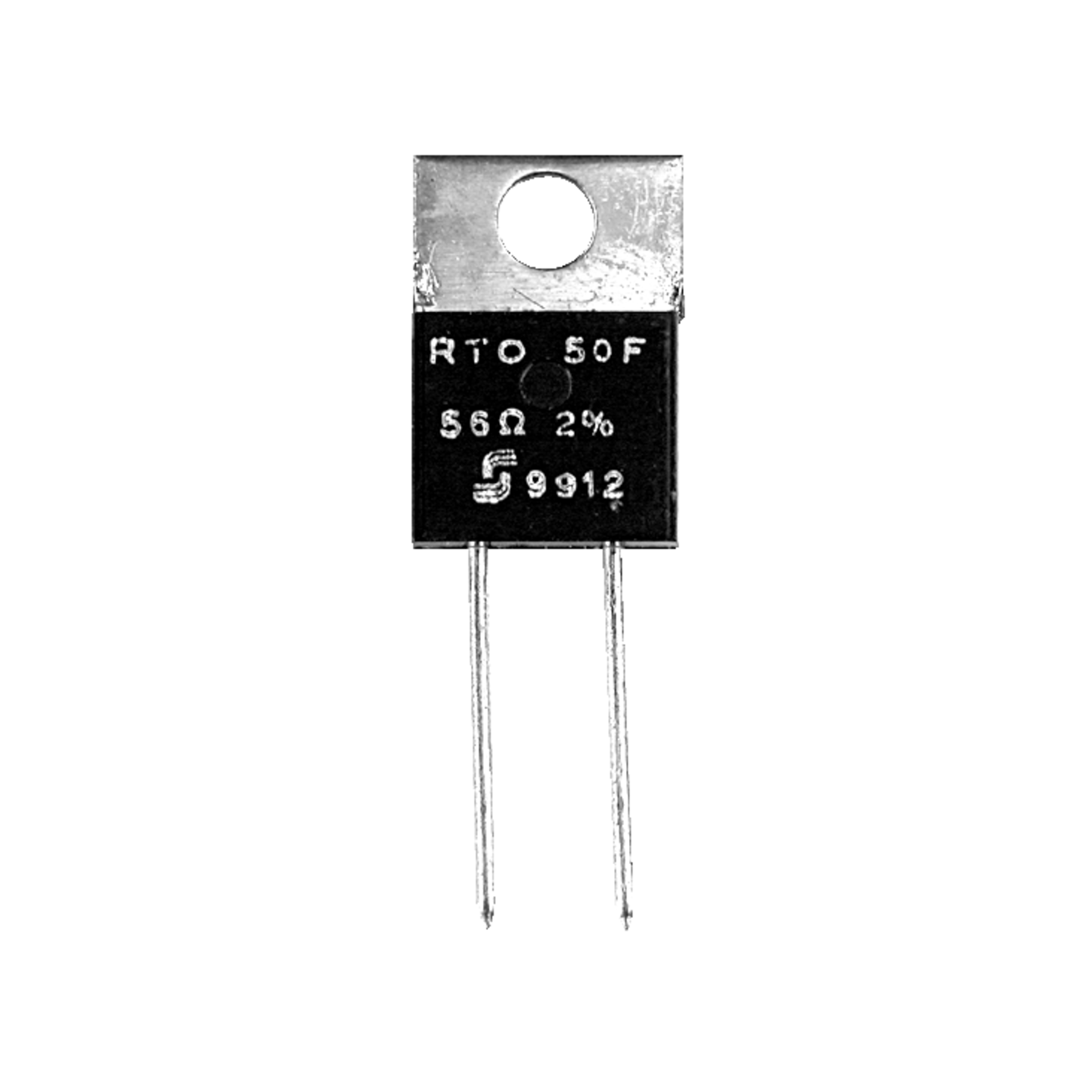

RTO050F100R0JTE1
Vishay THT thick film resistor 50W 100Ohm 5% TO220 5,08mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
120 Pcs. in stock
Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 2 or multiple of 2)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Thick film resistor
- Notice
- Cross-references:
• Here you will find suitable heatsinks. - Series
- RTO50F
- Housing
- TO220
- Rated power
- 50 W
- Resistance
- 100 Ohm
- Resistance tolerance
- 5 %
- RoHS-Conform
Specifications
Open all

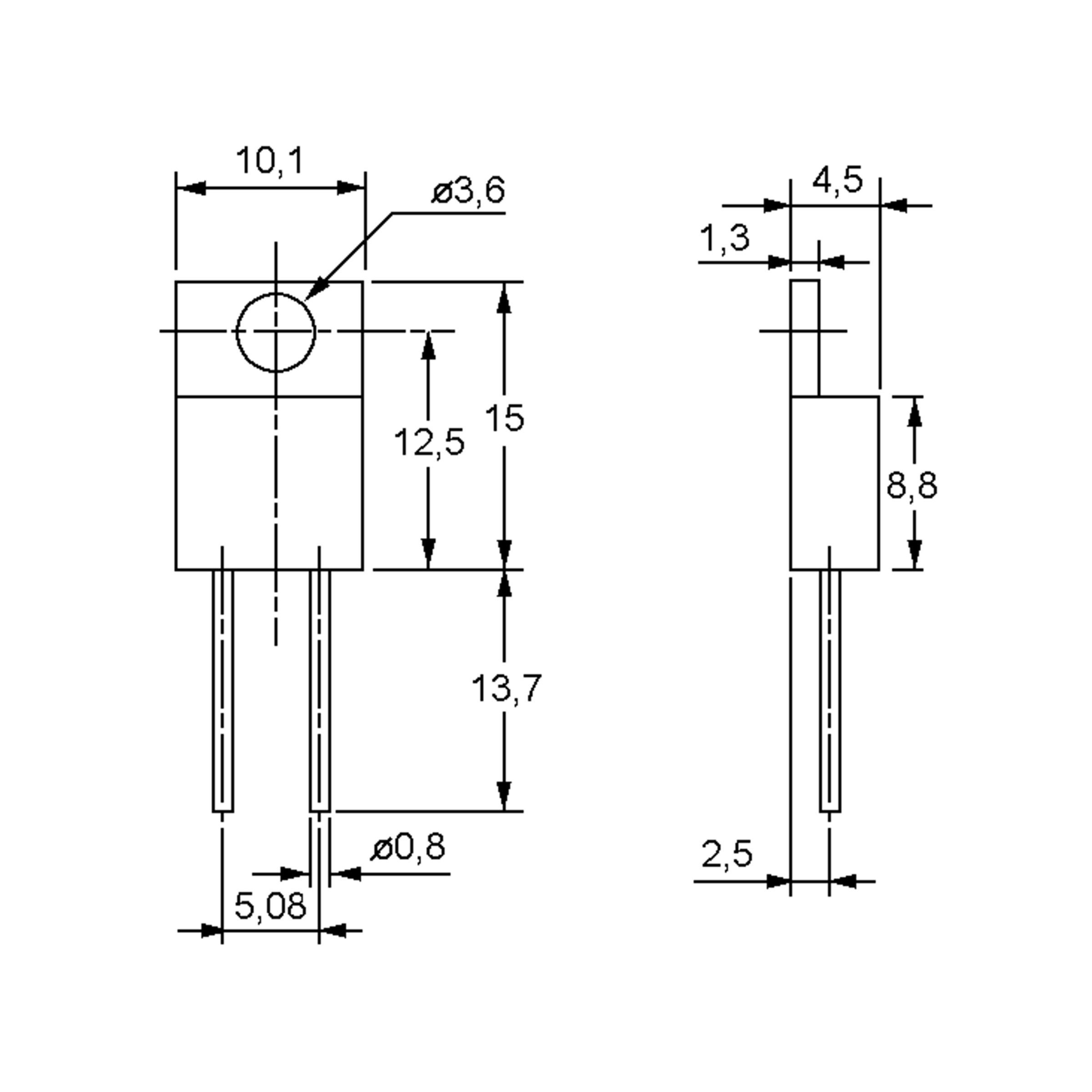

Dimensions and Weights
- Dimension: Length
- 10.1 mm
- Dimension: Width
- 4.5 mm
- Dimension: Height
- 15 mm
- Pitch
- 5.08 mm
- Total height
- 28.7 mm
- Weight
- 2.2 g
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 155 °C
Technical Features
- Resistance value
- 100
- Resistance unit
- Ohm
- Resistance
- 100 Ohm
- Resistance tolerance
- 5 %

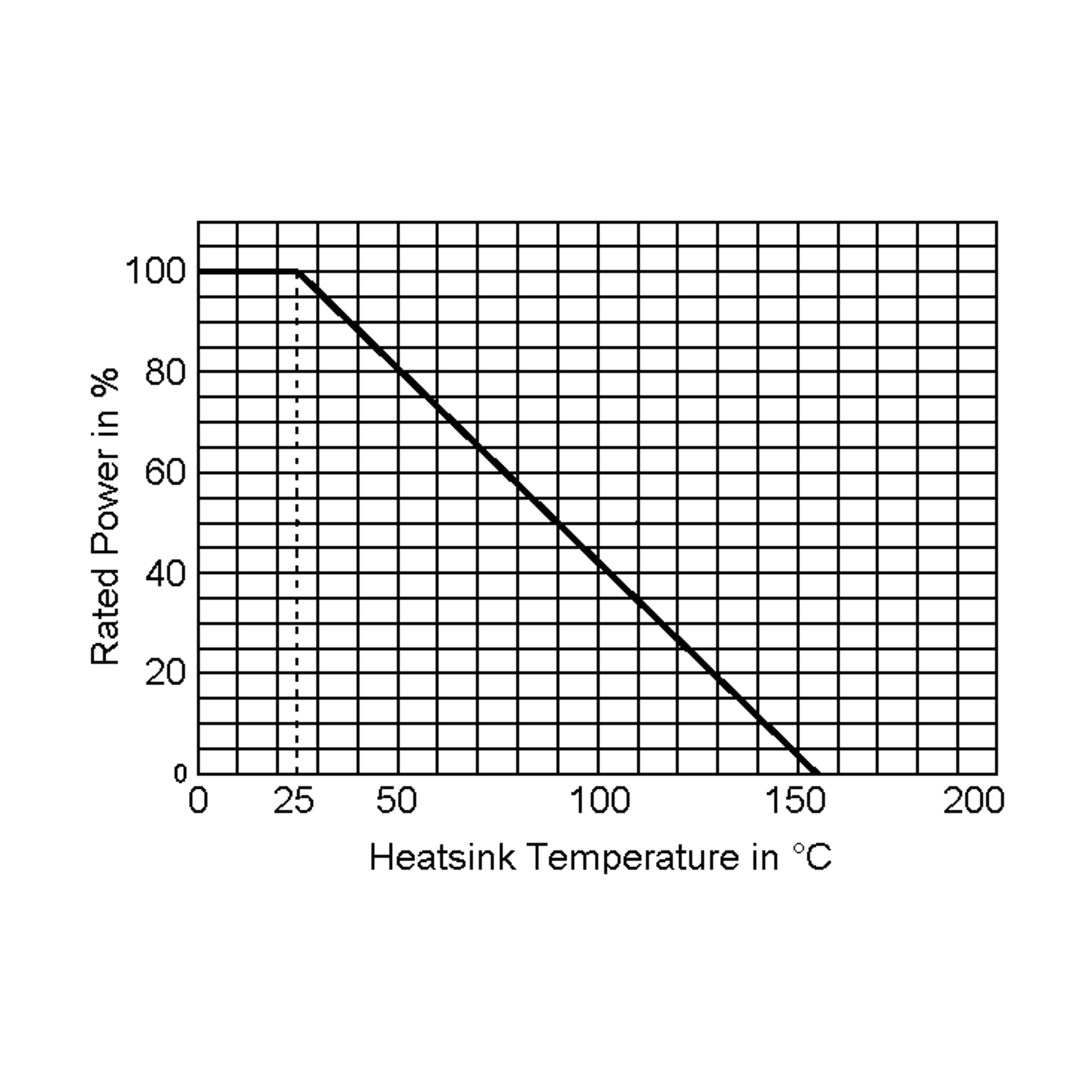

- Rated load capacity, with heat sink
- 50 W
- Rated load capacity, without heat sink
- 2.25 W
- Rated power
- 50 W
- Max. Operating voltage (DC)
- 300 V DC
- Max. Operating voltage (AC)
- 300 V AC
- Dielectric strength (RMS)
- 2,000 V
- Temperature coefficient
- 150 ppm/°
- Thermal resistance
- 2.6 °C/W
- Climate category
- 55/155/56
Documents
PCN_SF-394-2024-REV-0_EN.pdf
