RT055AS2201KB

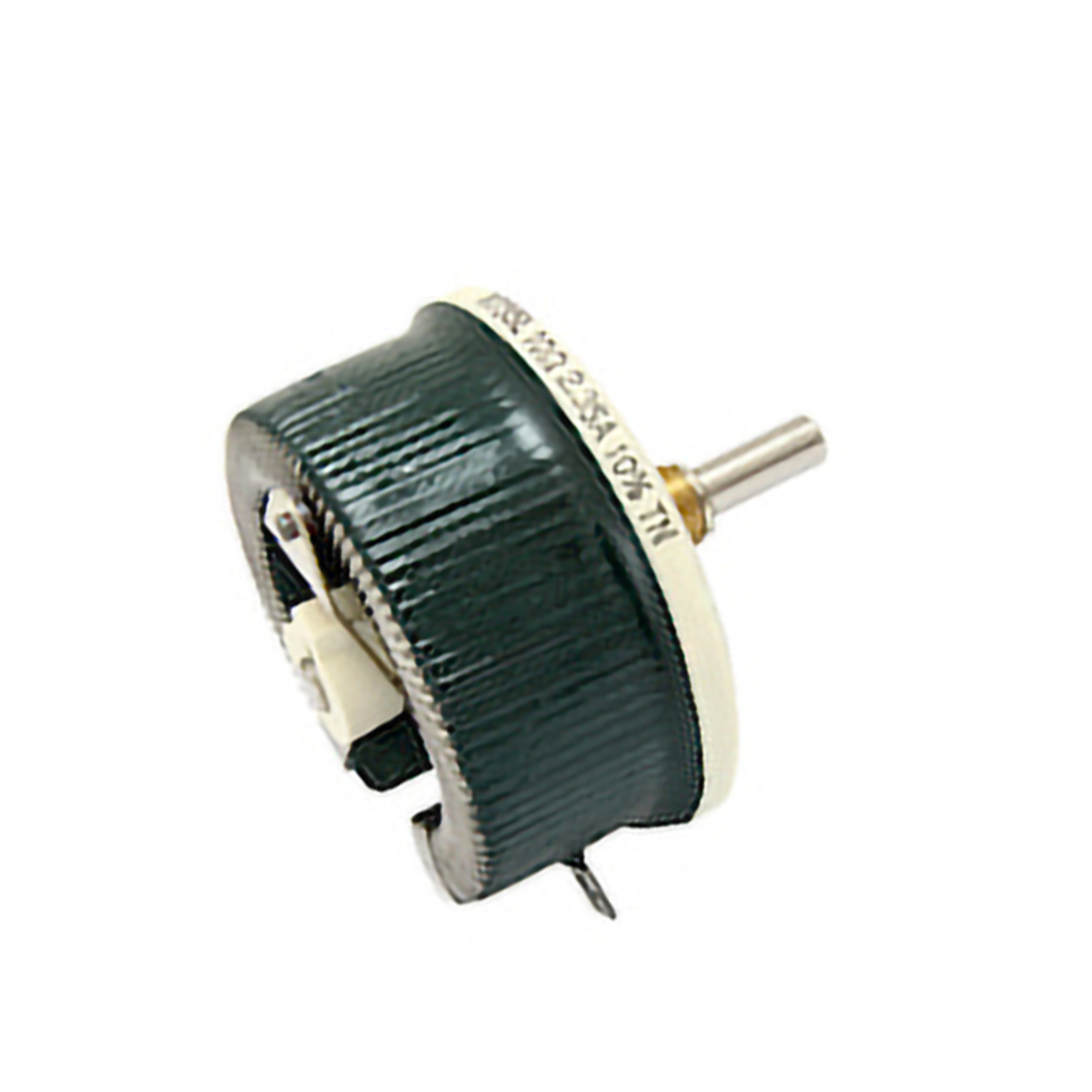

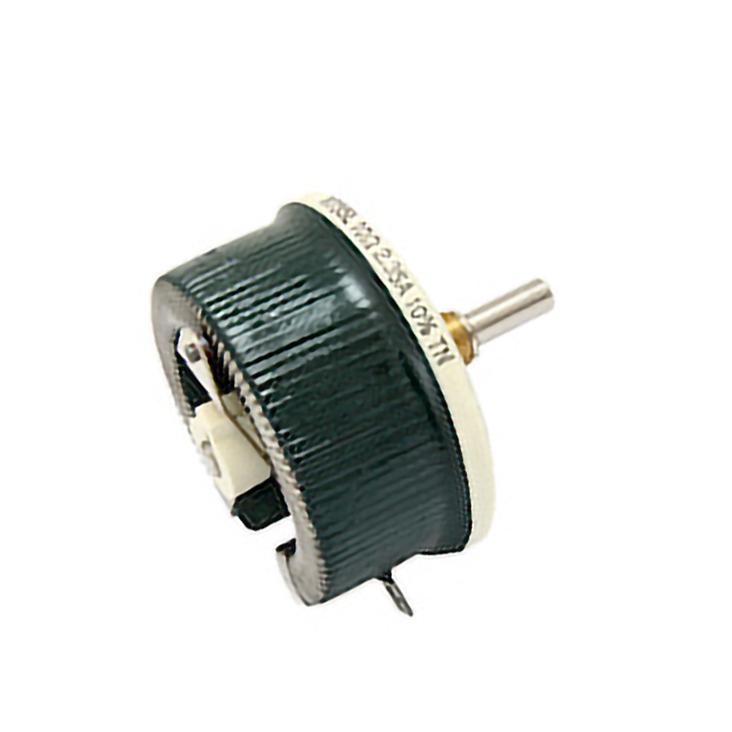

Vishay Wire potentiometer RT55 linear 55W 2,2kOhm 10% Shaft-Ø6mm metal
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 21 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable dials, knurled discs and plug-in-axles. - Type
- Wire potentiometer
- Series
- RT55
- Resistance curve
- linear
- Resistance
- 2,2 kOhm
- Resistance tolerance
- 10 %
- Diameter, shaft
- 6 mm
- Length, shaft
- 15 mm
- Shaft
- metal
- RoHS-Conform
Specifications
Open all

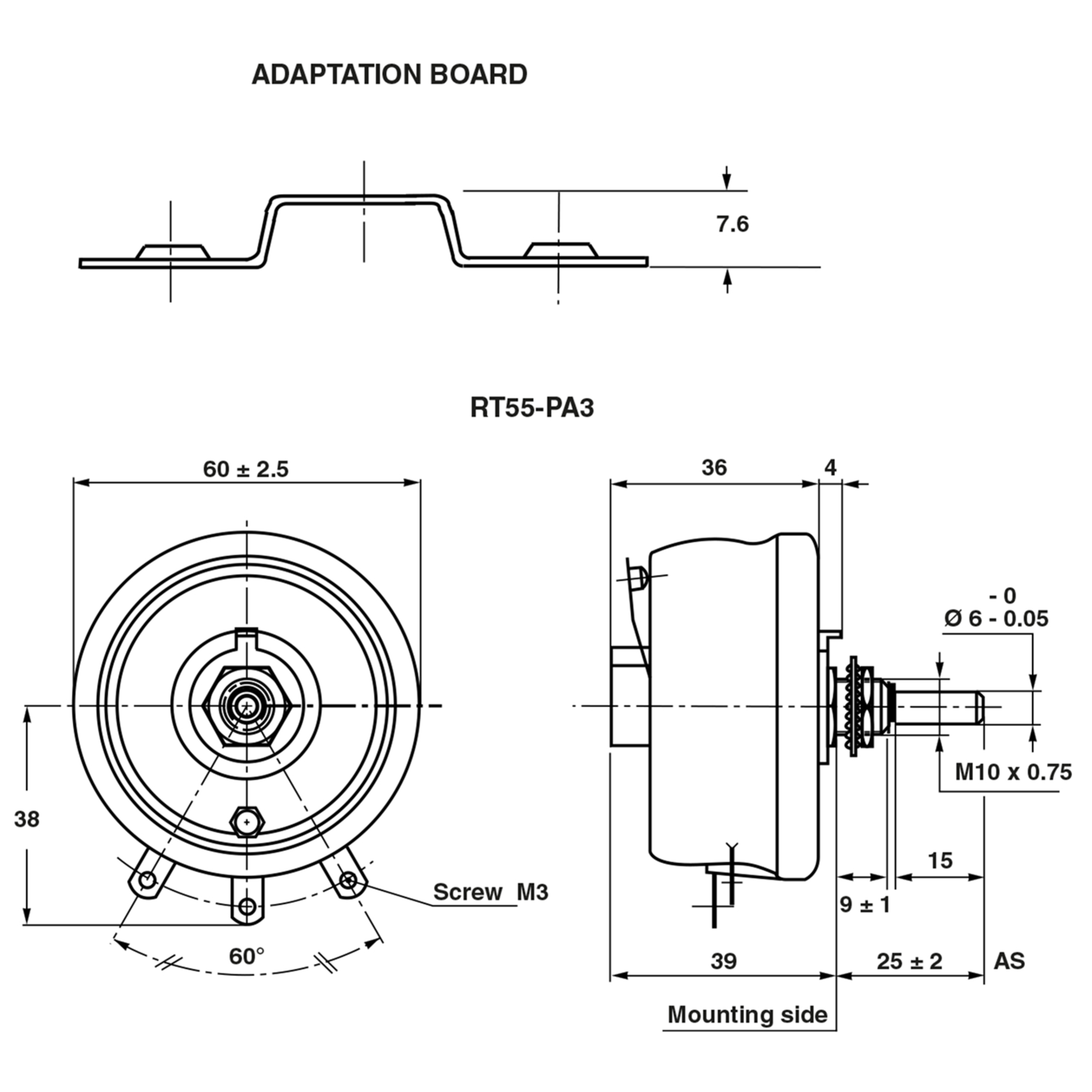

Dimensions and Weights
- Weight
- 175 g
- Height body
- 36 mm
- Diameter Body
- 60 mm
- Length, shaft
- 15 mm
- Diameter, shaft
- 6 mm
- Shaft
- metal
- Centre detent
- without
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 320 °C
Technical Features
- Resistance value
- 2.2
- Resistance unit
- kOhm
- Resistance
- 2,2 kOhm
- Resistance tolerance
- 10 %
- Resistance curve
- linear
- Rated current
- 160 mA
- Rated power
- 55 W
- Hold-off Voltage
- 500 V
- Dielectric strength (RMS)
- 1,000 V
- Insulation resistance
- 1.000 MOhm
Mechanical Features
- Rotation angle, mechanical
- 300 °
- Impact resistance
- 100 Ncm
Safety/Certifications
- Standards
- CETU 05-03B (CECC)
