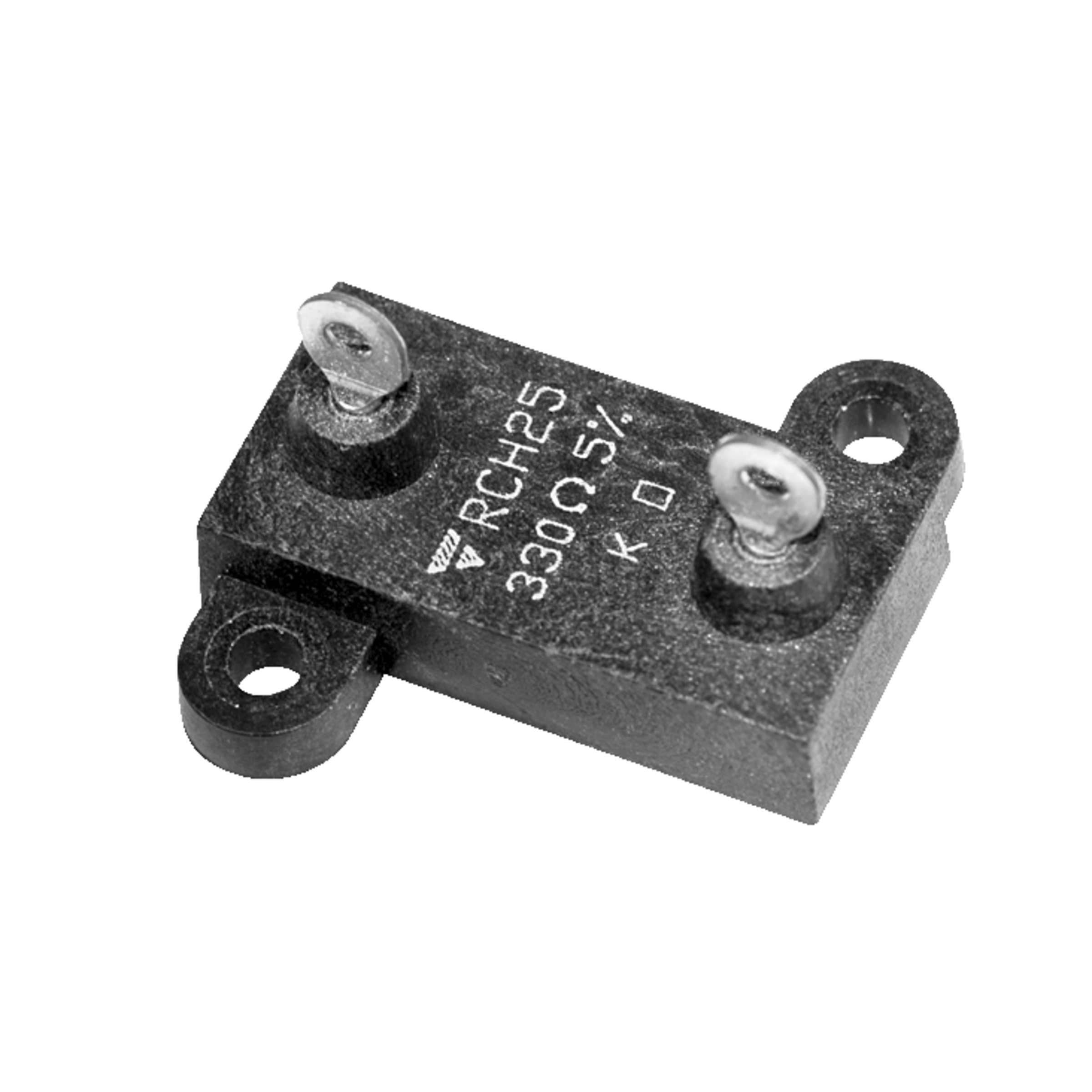

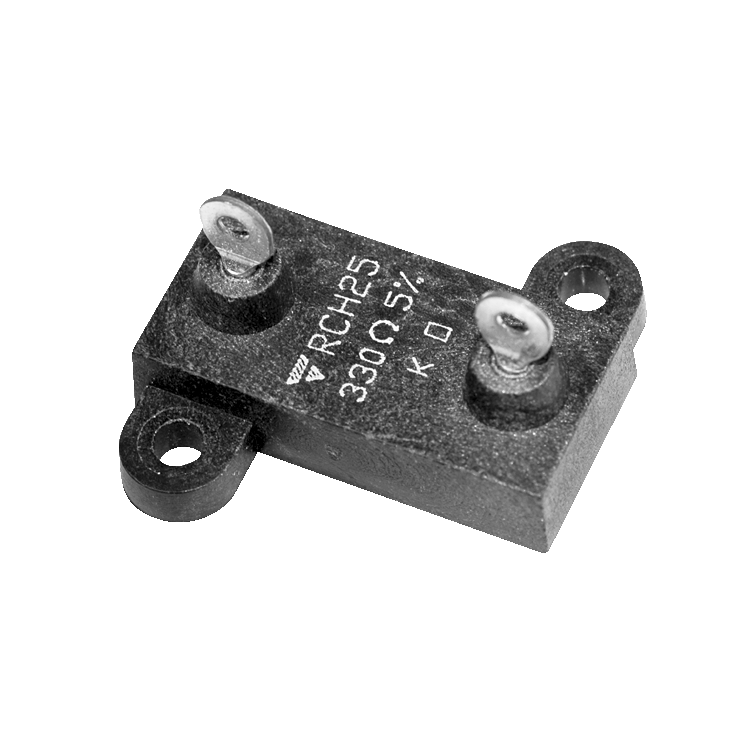

RCH25S2R200JS06
Vishay THT thick film resistor 25W 2,2Ohm 5%
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
25 Pcs.
25 Pcs.
Planned delivery time
Ø 6 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Resistance value
- 2,2 Ohm
- Resistance tolerance
- 5 %
- Rated power
- 25 W
- RoHS-Conform
Specifications
Open all

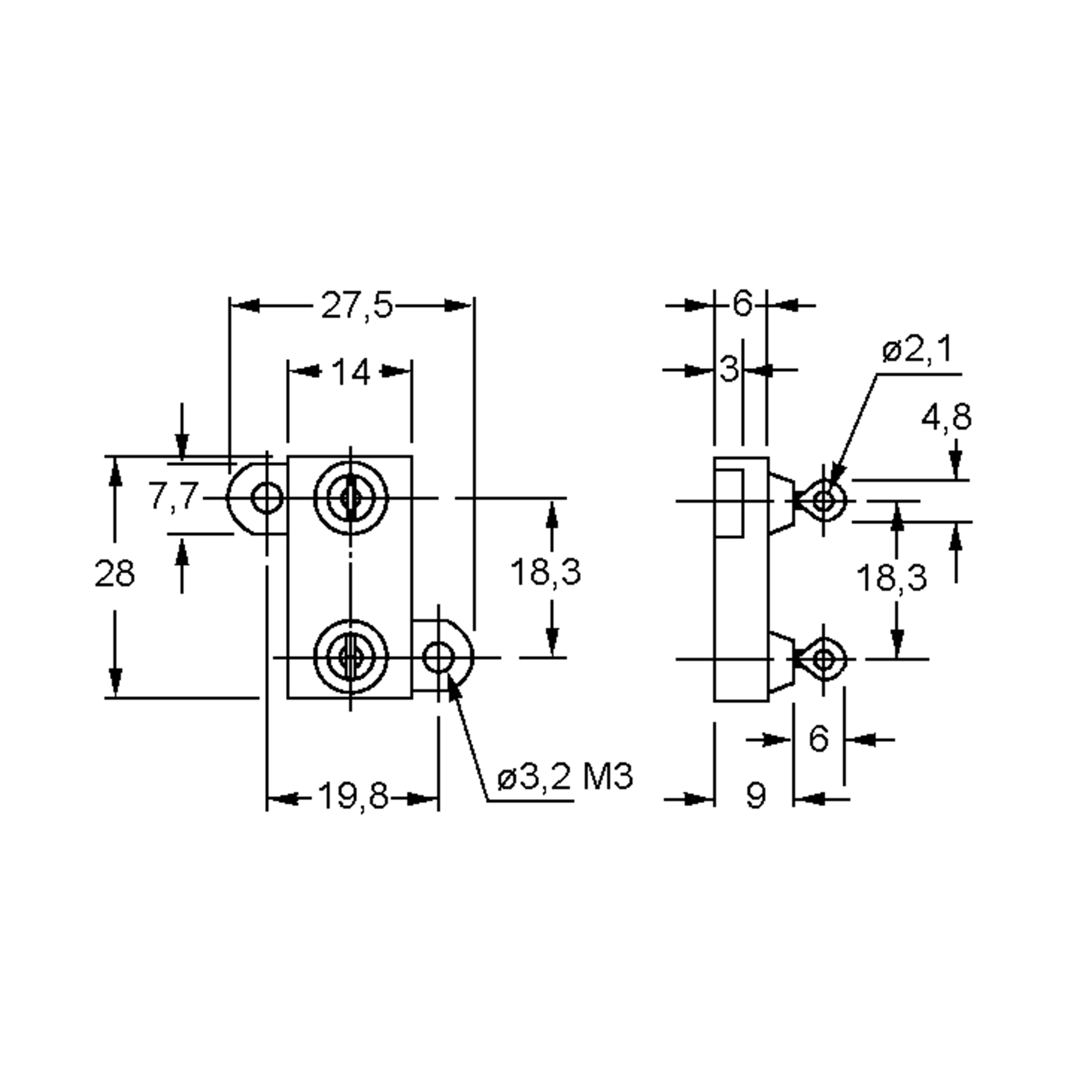

Dimensions and weights
- Dimension: Length
- 28 mm
- Dimension: Width
- 27 mm
- Dimension: Height
- 9 mm
- Weight
- 7 g
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 125 °C
Technical features
- Resistance value
- 2.2
- Resistance unit
- Ohm
- Resistance value
- 2,2 Ohm
- Resistance tolerance
- 5 %
- Rated load capacity, with heat sink
- 25 W
- Rated load capacity, without heat sink
- 4 W
- Rated power
- 25 W
- Max. Operating voltage (DC)
- 550 V DC
- Max. Operating voltage (AC)
- 550 V AC
- Test voltage
- 3,500 V
- Temperature coefficient
- 150 ppm/°
- Thermal resistance
- 1.4 K/W
- Climate category
- 55/125/56
