PE30L0FR472MAB
Vishay Cermet potentiometer PE30 linear 3W 4,7kOhm 20% Shaft-Ø6mm metal
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
161 Pcs. in stock
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable dials, knurled discs and plug-in-axles. - Type
- Cermet potentiometer
- Series
- PE30
- Resistance curve
- linear
- Resistance
- 4,7 kOhm
- Resistance tolerance
- 20 %
- Diameter, shaft
- 6 mm
- Length, shaft
- 50 mm
- Shaft
- metal
- RoHS-Conform
Specifications
Open all

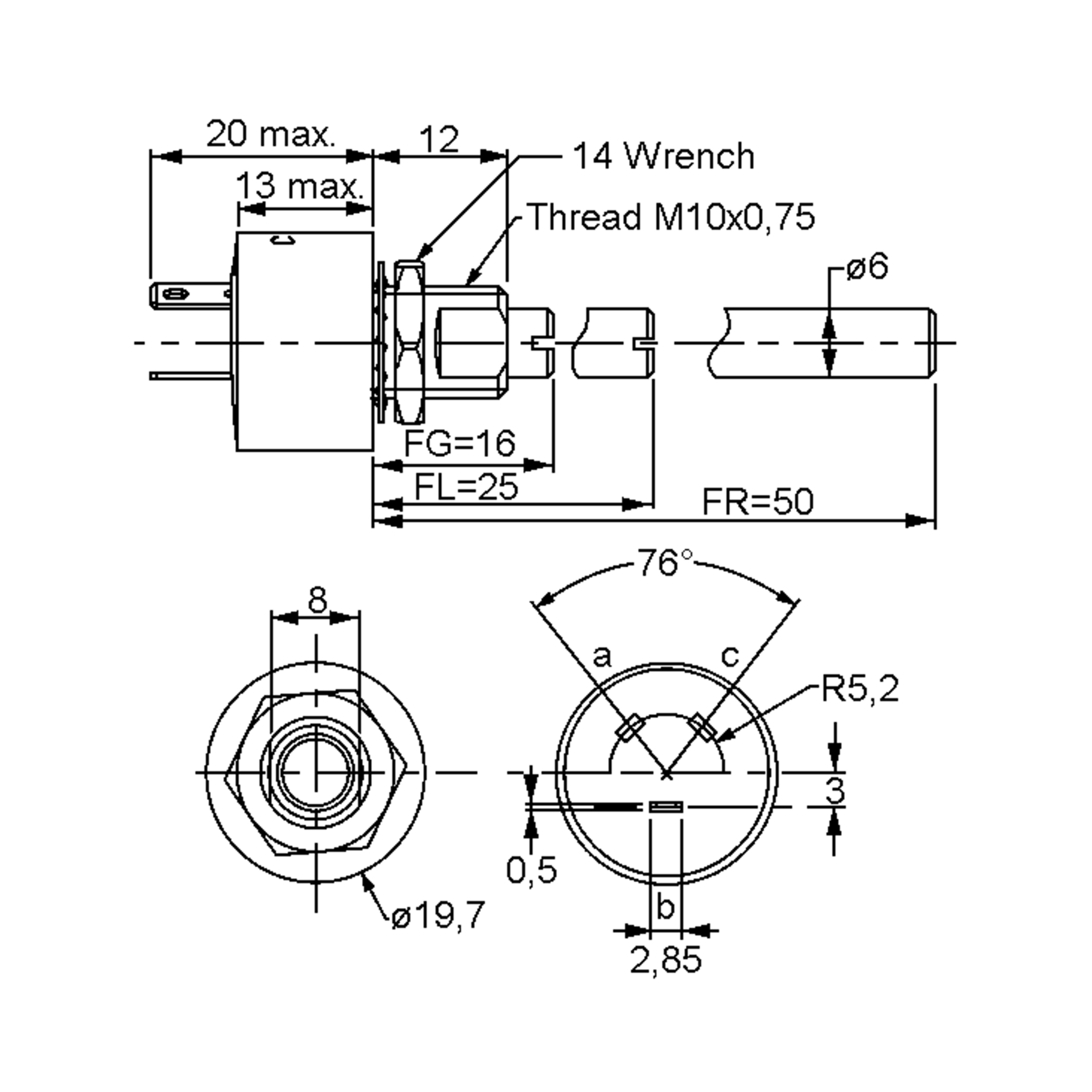

Dimensions and Weights
- Height body
- 13 mm
- Diameter Body
- 19.7 mm
- Length, shaft
- 50 mm
- Diameter, shaft
- 6 mm
- Shaft
- metal
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 125 °C
Technical Features
- Resistance value
- 4.7
- Resistance unit
- kOhm
- Resistance
- 4,7 kOhm
- Resistance tolerance
- 20 %
- Resistance curve
- linear

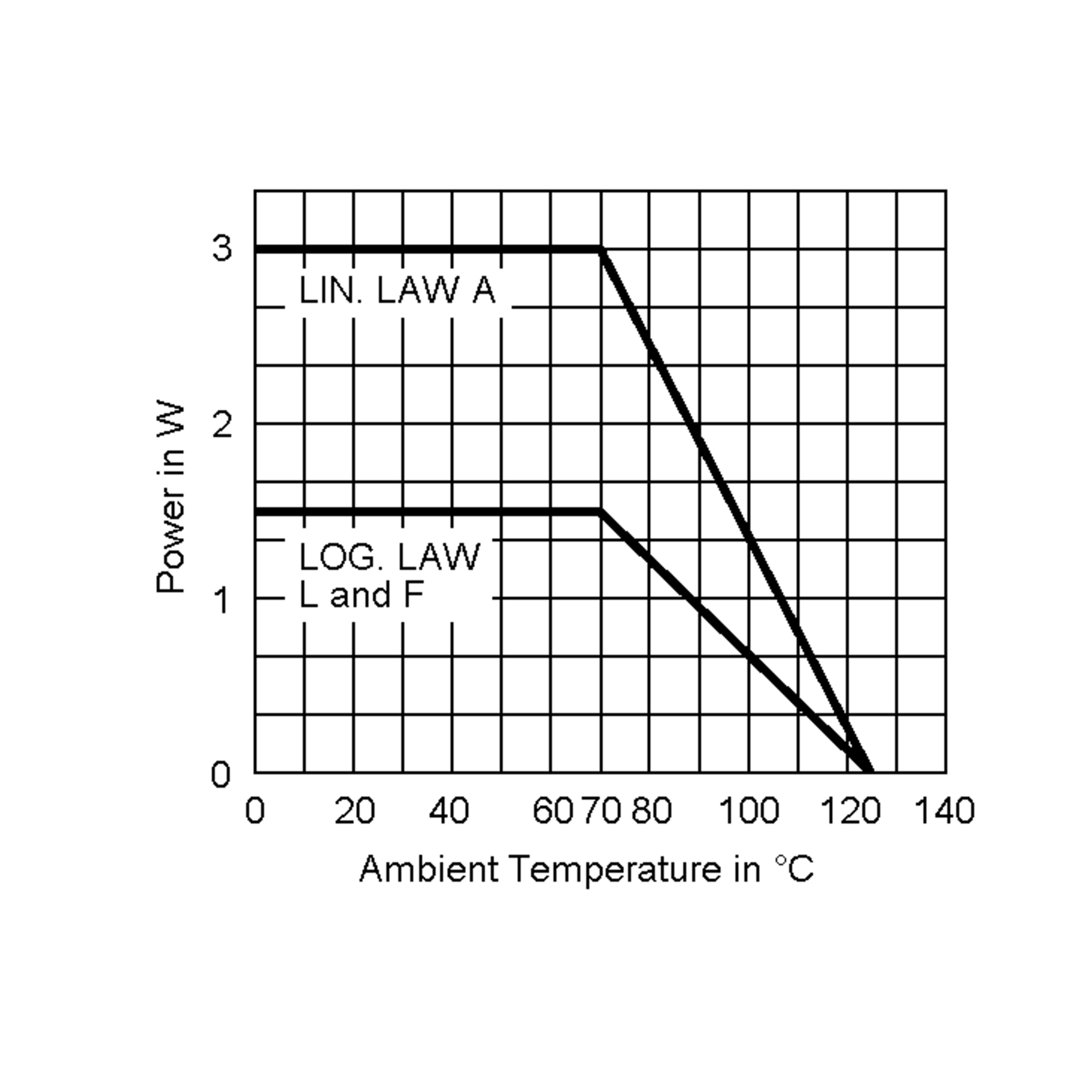

- Rated power
- 3 W
- Max. Operating voltage (DC)
- 119.9 V DC
- Hold-off Voltage
- 300 V
- Dielectric strength (RMS)
- 2,500 V
- Max. permissible switching current at Umax
- 25 A
- Temperature coefficient
- 150 ppm/°
- Insulation resistance
- 10^5 MOhm
- Service life
- 25,000 Zyklen
Mechanical Features
- Rotation angle, mechanical
- 300 °
- Rotation angle, electric
- 270 °
- Impact resistance
- 120 Ncm
Safety/Certifications
- Standards
- CECC 41000, IEC 60393-1
- Protection Class
- IP67
