P40 110 4K7 10% AGX

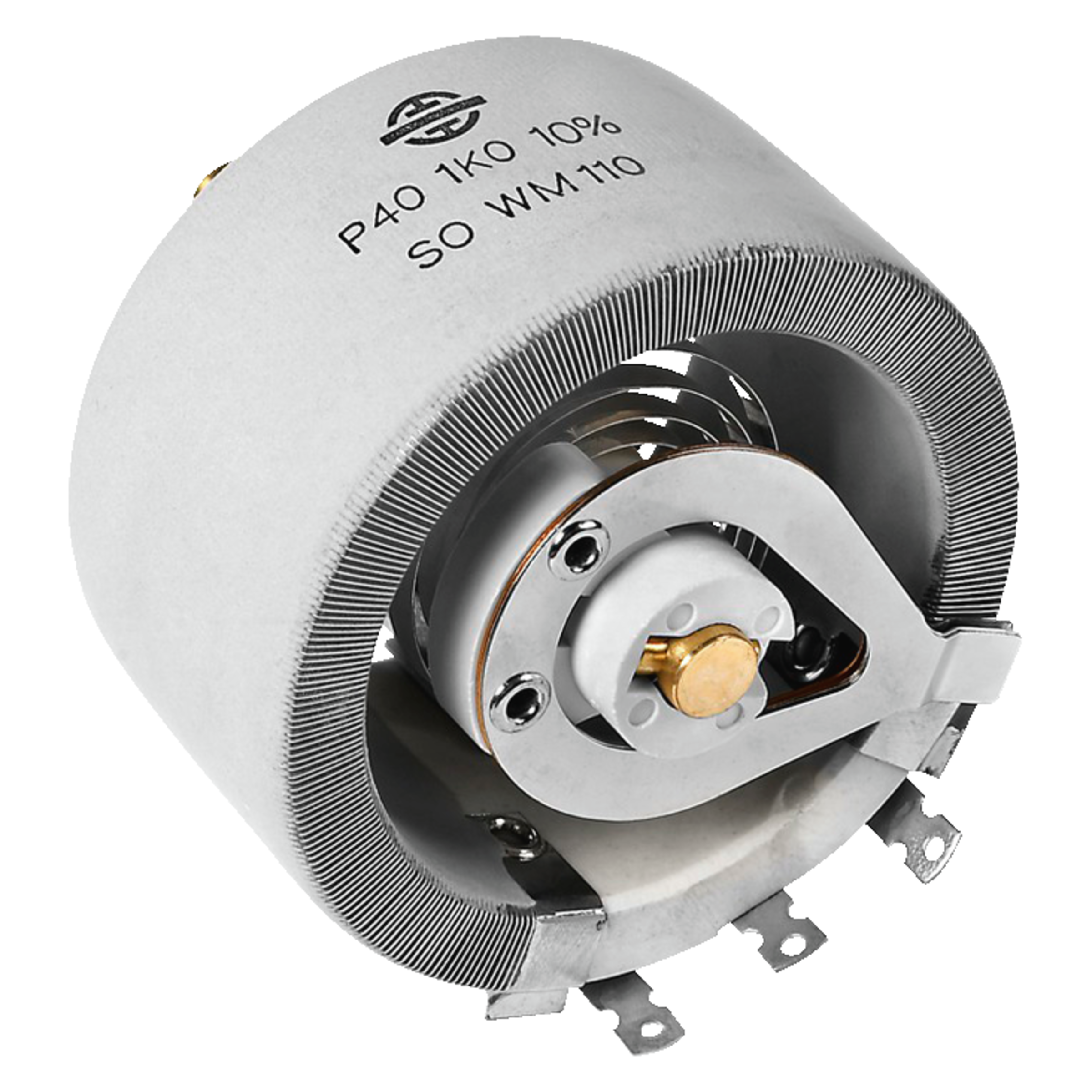

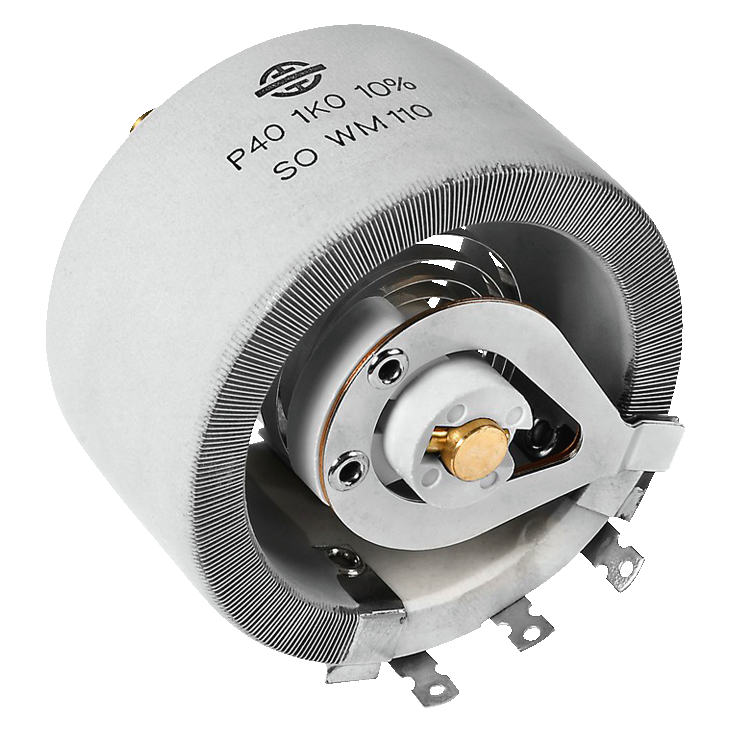

Vishay Wire potentiometer P40 linear 50W 4,7kOhm 10% Shaft-Ø6mm metal
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
5 Pcs. in stock
Planned delivery time
Ø 6 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Resistance value
- 4,7 kOhm
- Resistance tolerance
- 10 %
- Rated power
- 50 W
- Housing
- vertical
- RoHS-Conform
Specifications
Open all

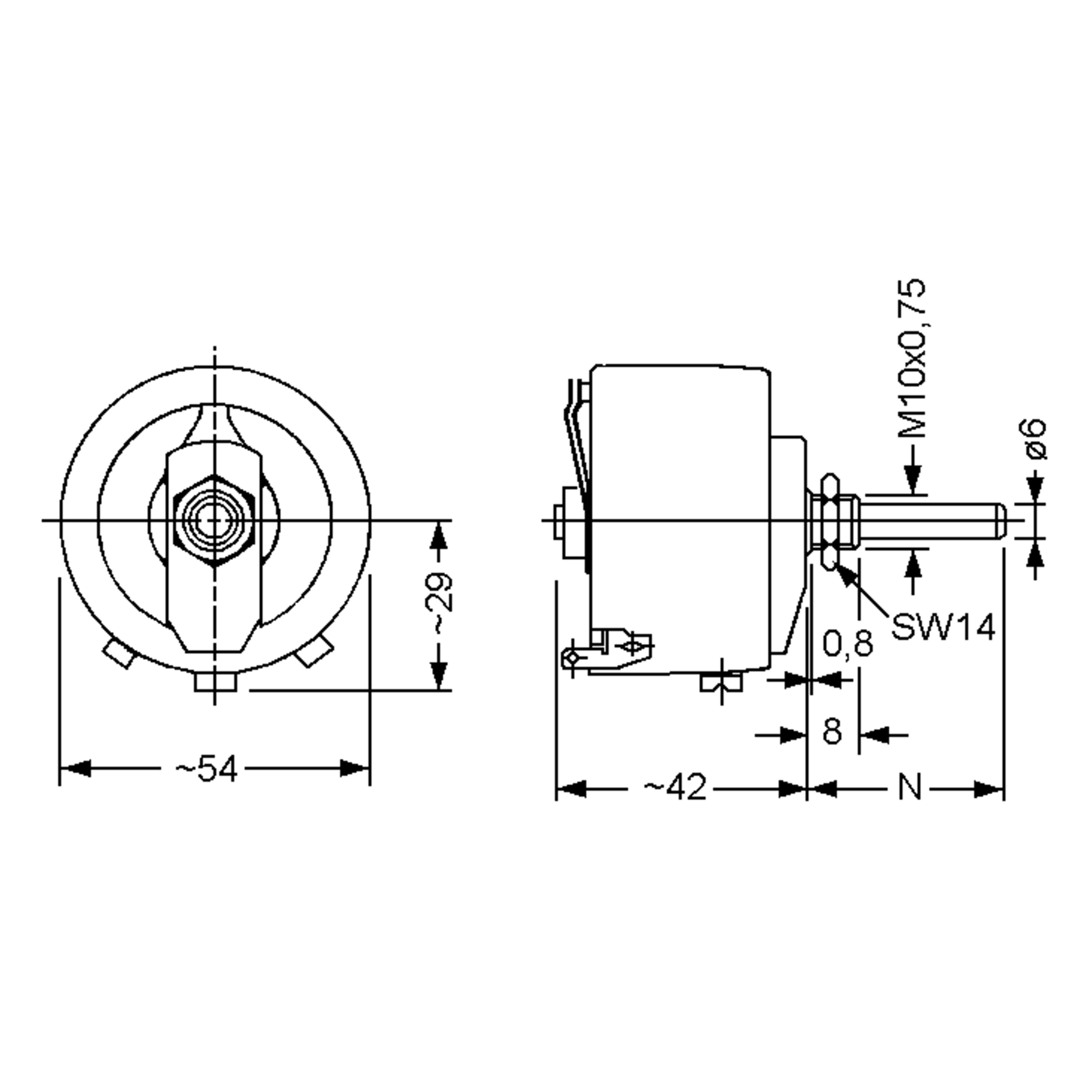

Dimensions and weights
- Weight
- 170 g
- Height body
- 42 mm
- Diameter Body
- 54 mm
- Length, shaft
- 35 mm
- Diameter, shaft
- 6 mm
- Shaft
- metal
Technical features
- Resistance value
- 4.7
- Resistance unit
- kOhm
- Resistance value
- 4,7 kOhm
- Resistance tolerance
- 10 %
- Resistance curve
- linear
- Rated power
- 50 W
- Dielectric strength (RMS)
- 2,500 V
Mechanical features
- Rotation angle, mechanical
- 290 °
- Rotation angle, electric
- 276 °
- Impact resistance
- 100 Ncm
- Torque
- 4 Ncm
