P16NP103MAB15

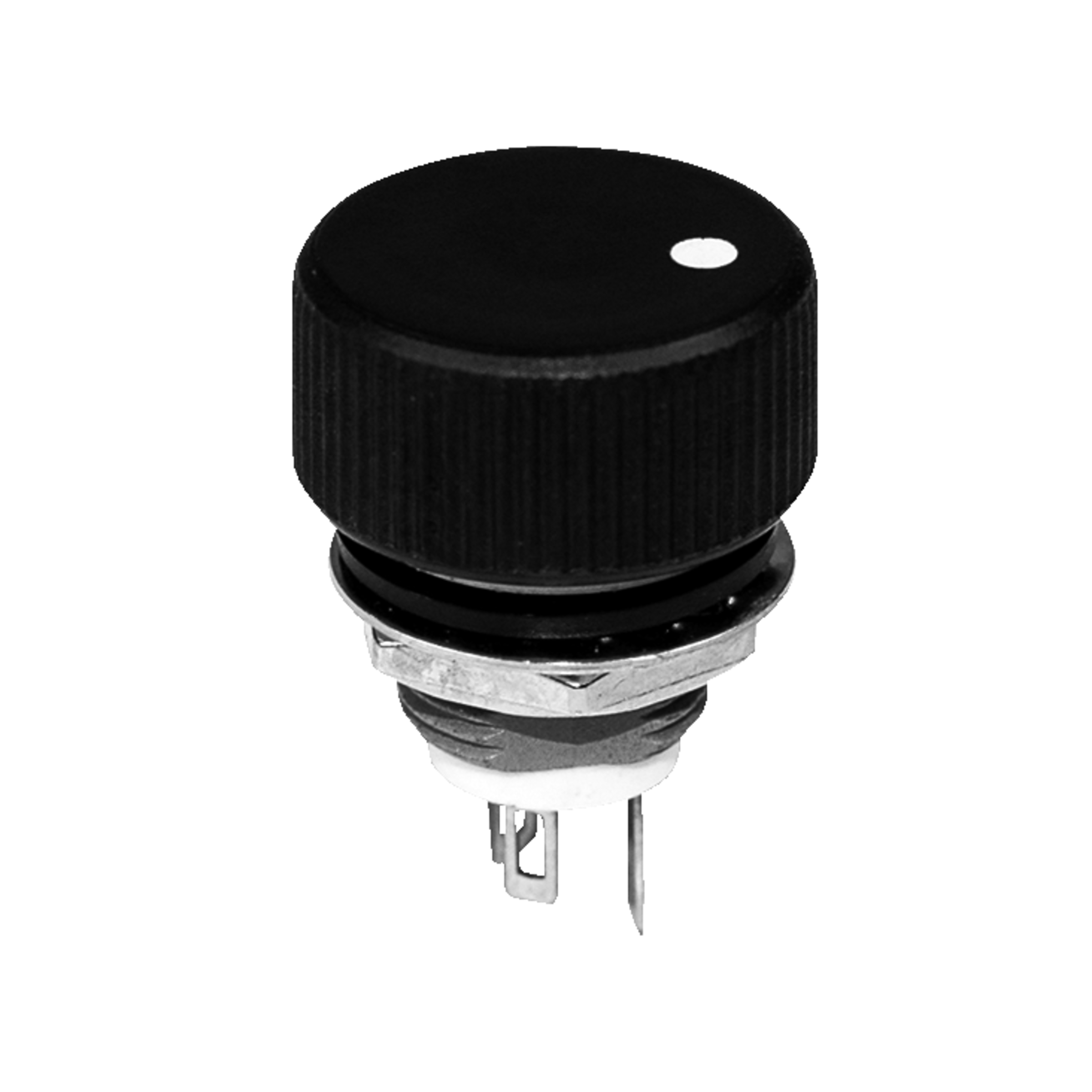

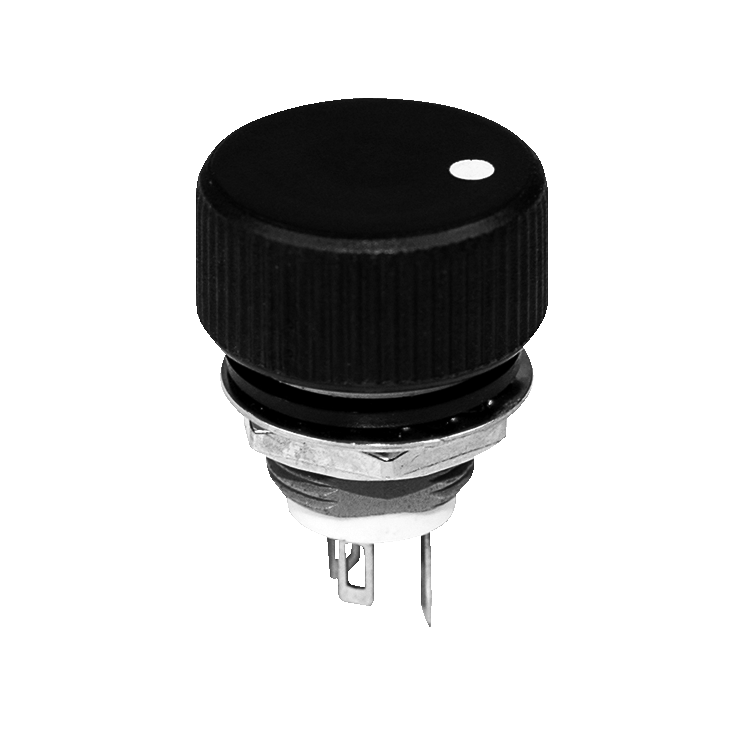

Vishay Cermet potentiometer P16 linear 1W 10kOhm 10% Plastic Knob
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
567 Pcs. in stock
Next Stock Receipt
Week 51/2024
80 Pcs.
80 Pcs.
Planned delivery time
Ø 6 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Resistance value
- 10 kOhm
- Resistance tolerance
- 10 %

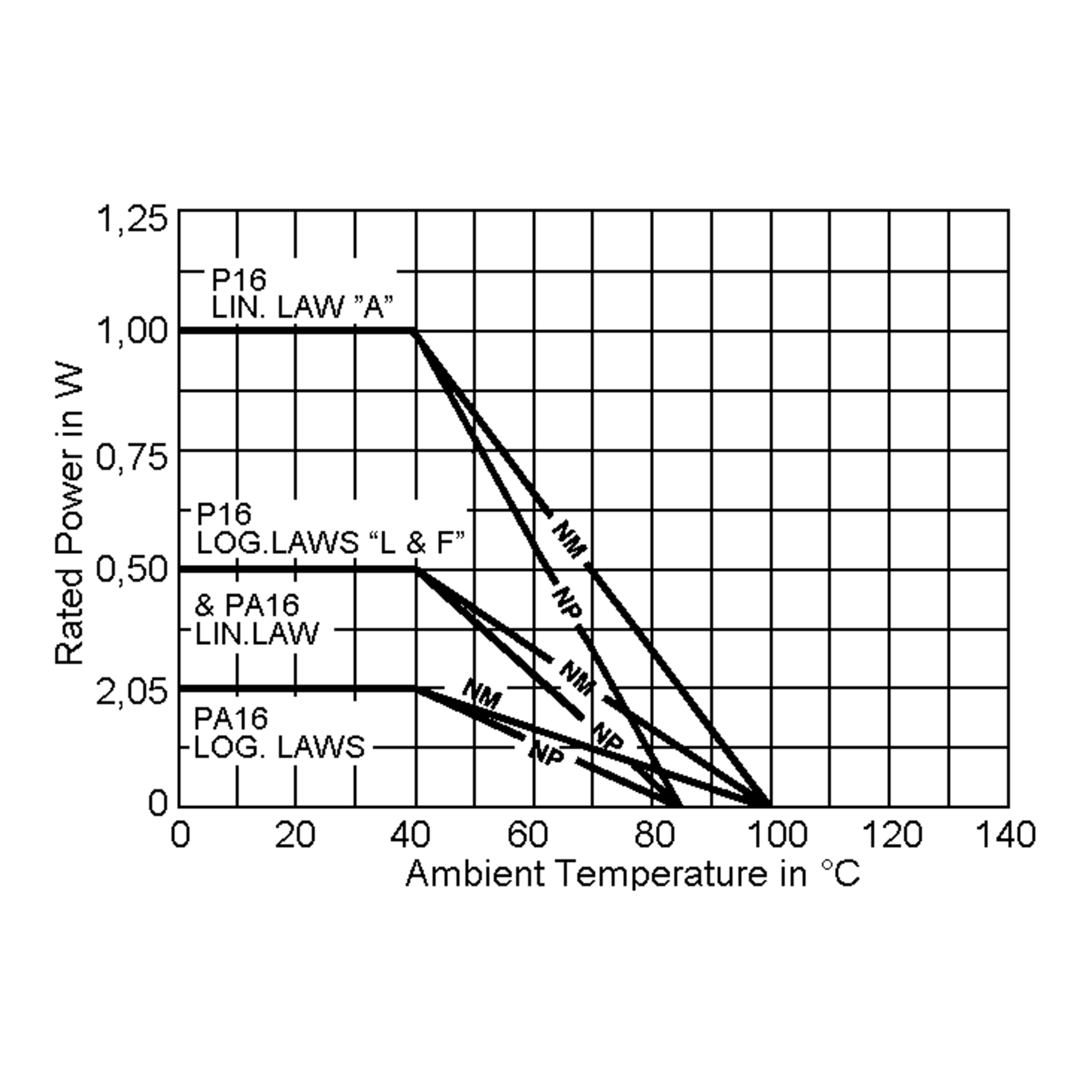

- Rated power
- 1 W
- Housing
- vertical
- RoHS-Conform
Specifications
Open all

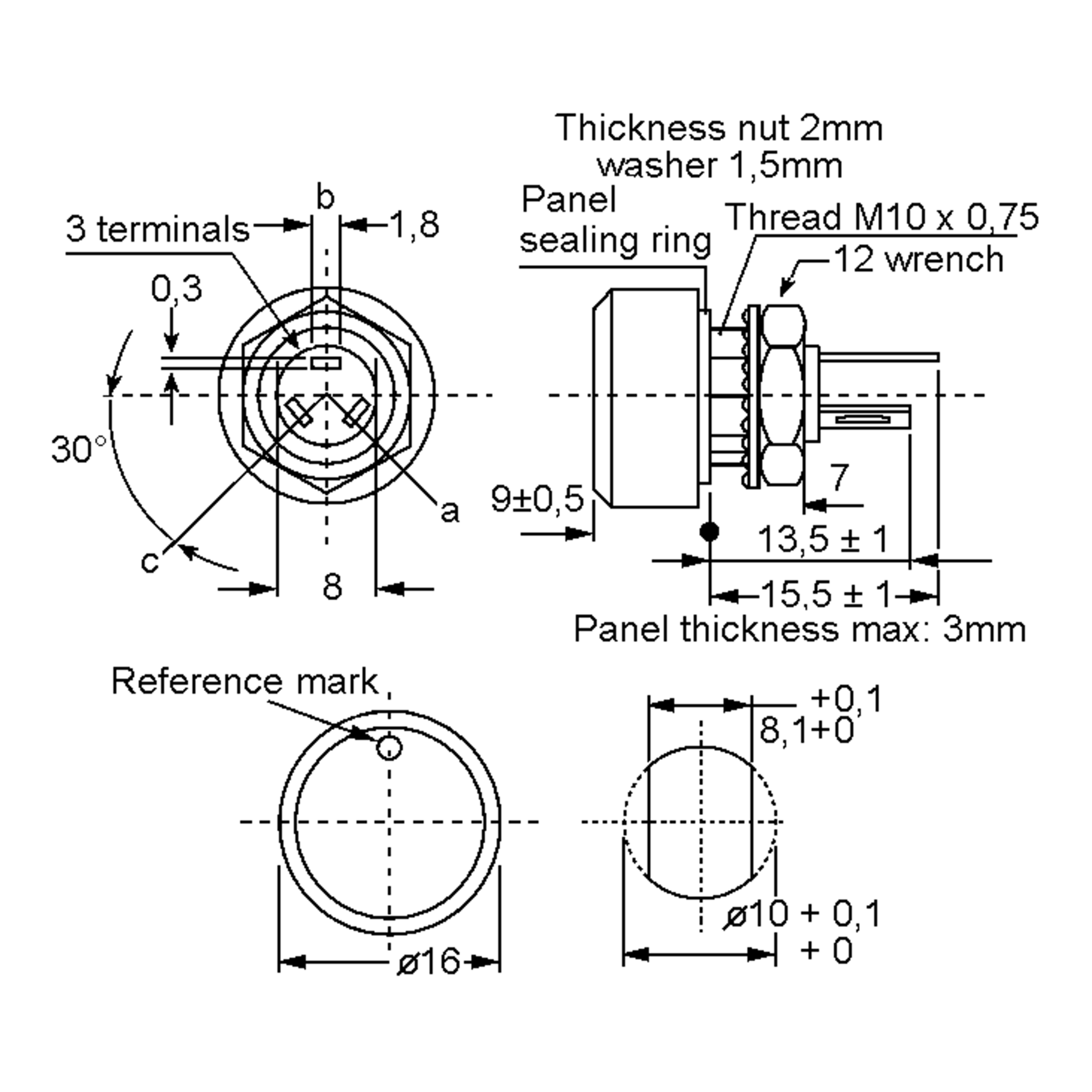

Dimensions and weights
- Weight
- 4.5 g
- Shaft
- Plastic Knob
- Knob, diameter
- 16 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Resistance value
- 10
- Resistance unit
- kOhm
- Resistance value
- 10 kOhm
- Resistance tolerance
- 10 %
- Resistance curve
- linear
- Rated power
- 1 W
- Max. Operating voltage (DC)
- 100 V DC
- Hold-off Voltage
- 350 V
- Dielectric strength (RMS)
- 2,500 V
- Max. permissible switching current at Umax
- 10 A
- Temperature coefficient, typ.
- 150 ppm/°
- Insulation resistance
- 10^6 MOhm
- Service life
- 50,000 Zyklen
Mechanical features
- Rotation angle, mechanical
- 300 °
- Rotation angle, electric
- 270 °
- Impact resistance
- 80 Ncm
- Torque
- 1,8 Ncm
Safety/Certifications
- Standards
- CEEE41300
- Protection Class
- IP67
