MAL213817222E3

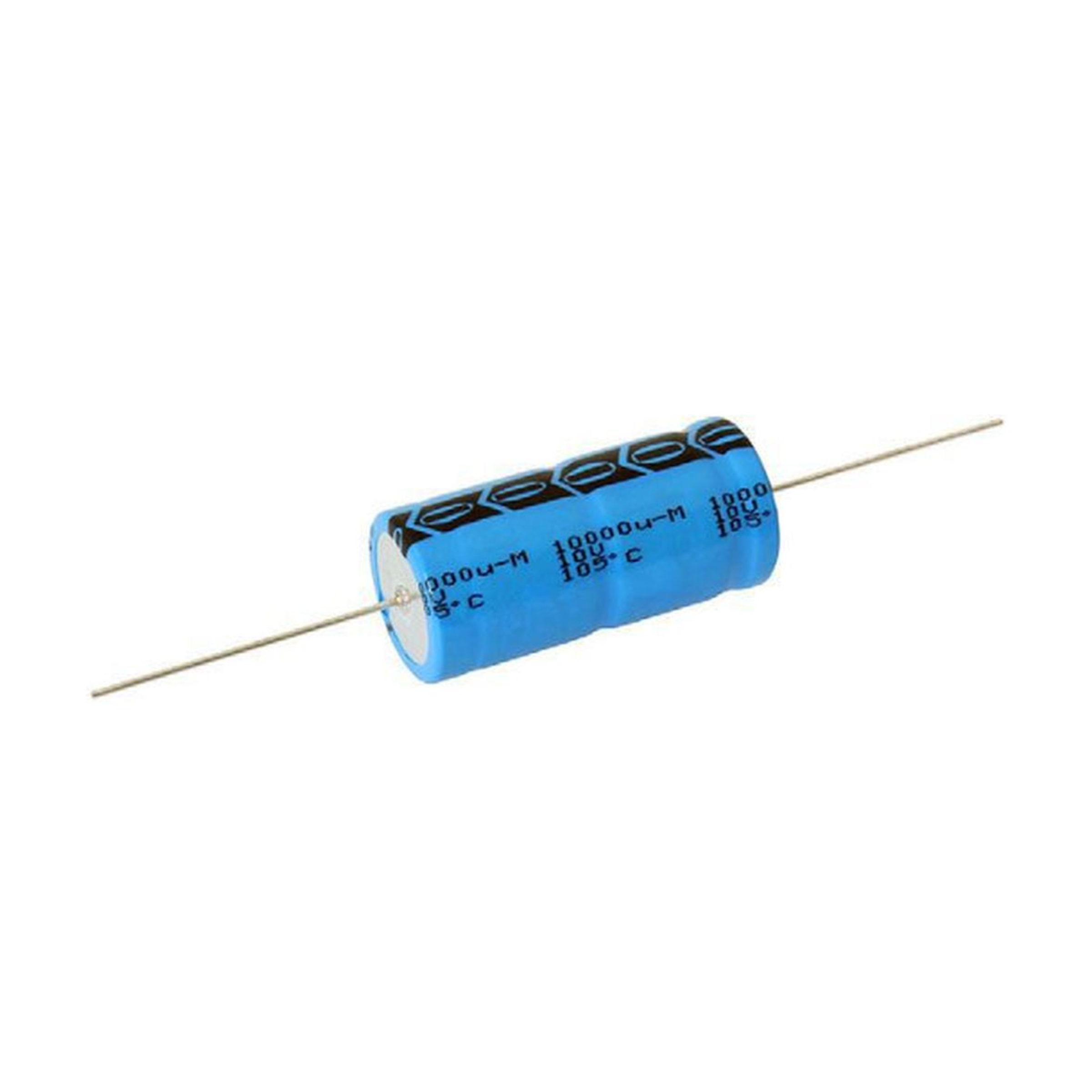

Vishay Aluminum electrolytic capacitor 138 AML THT Axial 40V 2200µF ±20% -40°C...105°C

MAL213817222E3MAL213817222E3
NEW
Manufacturer Part No.
MAL213817222E3
Schukat Part No.
MAL213817222E3
Manufacturer
Vishay
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 125 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Aluminum electrolytic capacitor
Capacity
2.200 µF
Capacity Tolerance [%]
±20
Rated voltage DC
40 V
Assembly Type
THT
Housing
Axial
Operating Temperature Min.
-40 °C
Operating Temperature Max.
105 °C
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Vishay
Type
  • Aluminum electrolytic capacitor
Series
  • 138 AML
Product group
  • C6656
Housing
  • Axial
Applications
  • Industrial, automotive, EDP and telecommunication. Smoothing, filtering, buffering in SMPS; coupling, decoupling, timing. Portable and mobile equipment (small size, low mass). Stand-by applications.
Assembly Type
  • THT
Form of Delivery
  • bulk
Connections
  • 2pin
Labelling
  • The capacitors are marked (where possible) with the following information: rated capacitance (in μF), tolerance on rated capacitance, code letter in accordance with IEC 60062 (M for ±20%), rated voltage (in V), upper category temperature (105°C), date code in accordance with IEC 60062, code for factory of origin, name of manufacturer, negative terminal identification, series number (138).
Features

  • • Polarized aluminum electrolytic capacitors, non-solid electrolyte
    • Axial leads, cylindrical aluminum case, insulated with a blue sleeve
    • Charge and discharge proof
    • Long useful life: 10,000h at 105°C, high reliability
    • High ripple current capability
    • Miniaturized, high CV-product per unit volume

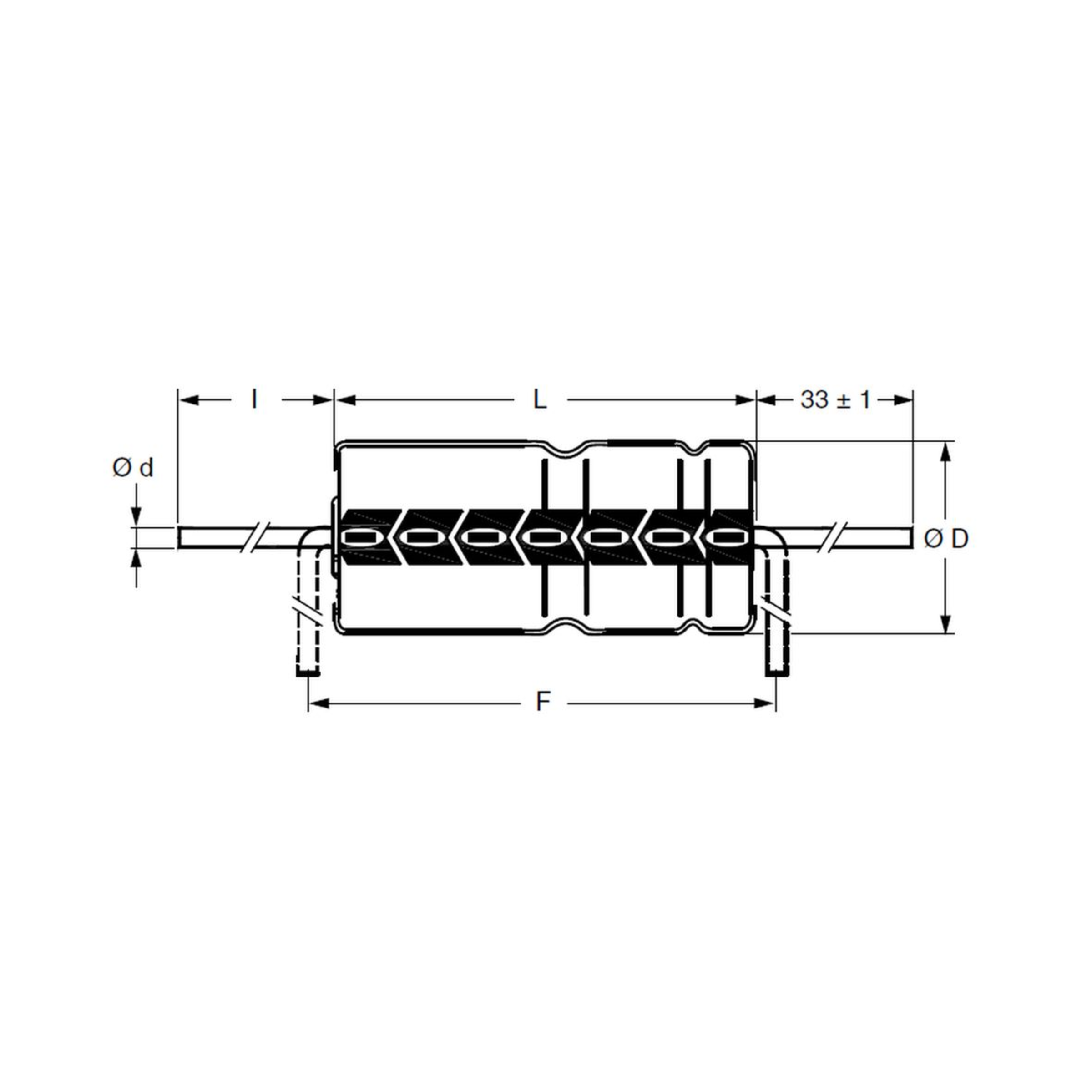

Dimensions and Weights

Diameter
  • 18 mm
Dimension: Length
  • 38 mm
Wire diameter
  • 0.8 mm
Weight
  • 19 g

Operating conditions

Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 105 °C
Climate category IEC
  • 40/105/56

Technical Features

Capacity
  • 2.200 µF
Capacity
  • 2,200
Capacity unit
  • µF
Capacity Tolerance [%]
  • ±20
Loss factor tan δ
  • 0,12
Leakage current
  • 180 µA
Ripple Current
  • 1.640 mA
Equivalent series resistance (ESR)
  • 0,093 Ohm
Rated voltage DC
  • 40 V
Service life
  • 10.000 h

Safety/Certifications

Standards
  • IEC 60384-4, EN 130300
