MAL204281159E3

Vishay Aluminum electrolytic capacitor 042 AMH-ELB THT Axial 450V 15µF -10/50% -25°C...85°C

MAL204281159E3MAL204281159E3
NEW
Manufacturer Part No.
MAL204281159E3
Schukat Part No.
MAL204281159E3
Manufacturer
Vishay
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 10 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 200 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Aluminum electrolytic capacitor
Capacity
15 µF
Capacity Tolerance [%]
-10/50
Rated voltage DC
450 V
Assembly Type
THT
Housing
Axial
Operating Temperature Min.
-25 °C
Operating Temperature Max.
85 °C
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Vishay
Type
  • Aluminum electrolytic capacitor
Series
  • 042 AMH-ELB
Product group
  • C6656
Housing
  • Axial
Applications
  • Electronic lighting ballast, power supply. Smoothing, filtering, buffering at high voltages. Boards with restricted mounting height, vibration, and shock resistant.
Assembly Type
  • THT
Form of Delivery
  • bulk
Connections
  • 2pin
Labelling
  • The capacitors are marked (where possible) with the following information: rated capacitance (in μF), tolerance on rated capacitance, code letter in accordance with IEC 60062 (T for -10% to +50%), rated voltage (in V), upper category temperature (85°C), date code in accordance with IEC 60062, code for factory of origin, name of manufacturer, negative terminal identification, series number (042).
Features

  • • Polarized aluminum electrolytic capacitors, non-solid electrolyte
    • Useful life: 20.000h at +85°C
    • Stable under overvoltage conditions: 550V for 24h at 85 °C
    • High ripple current capability
    • Smallest dimensions

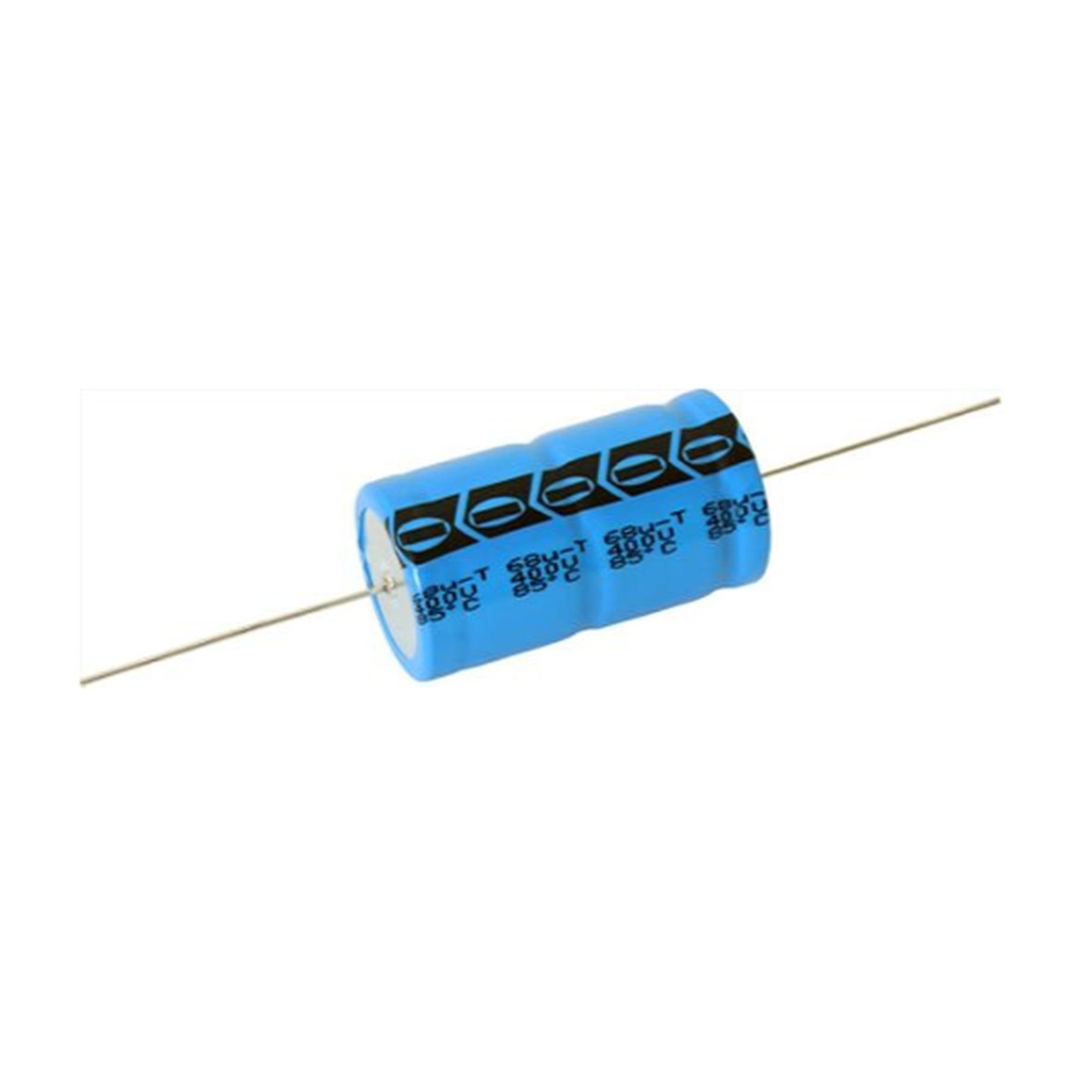

    • Axial leads, cylindrical aluminum case,  insulated with a blue sleeve

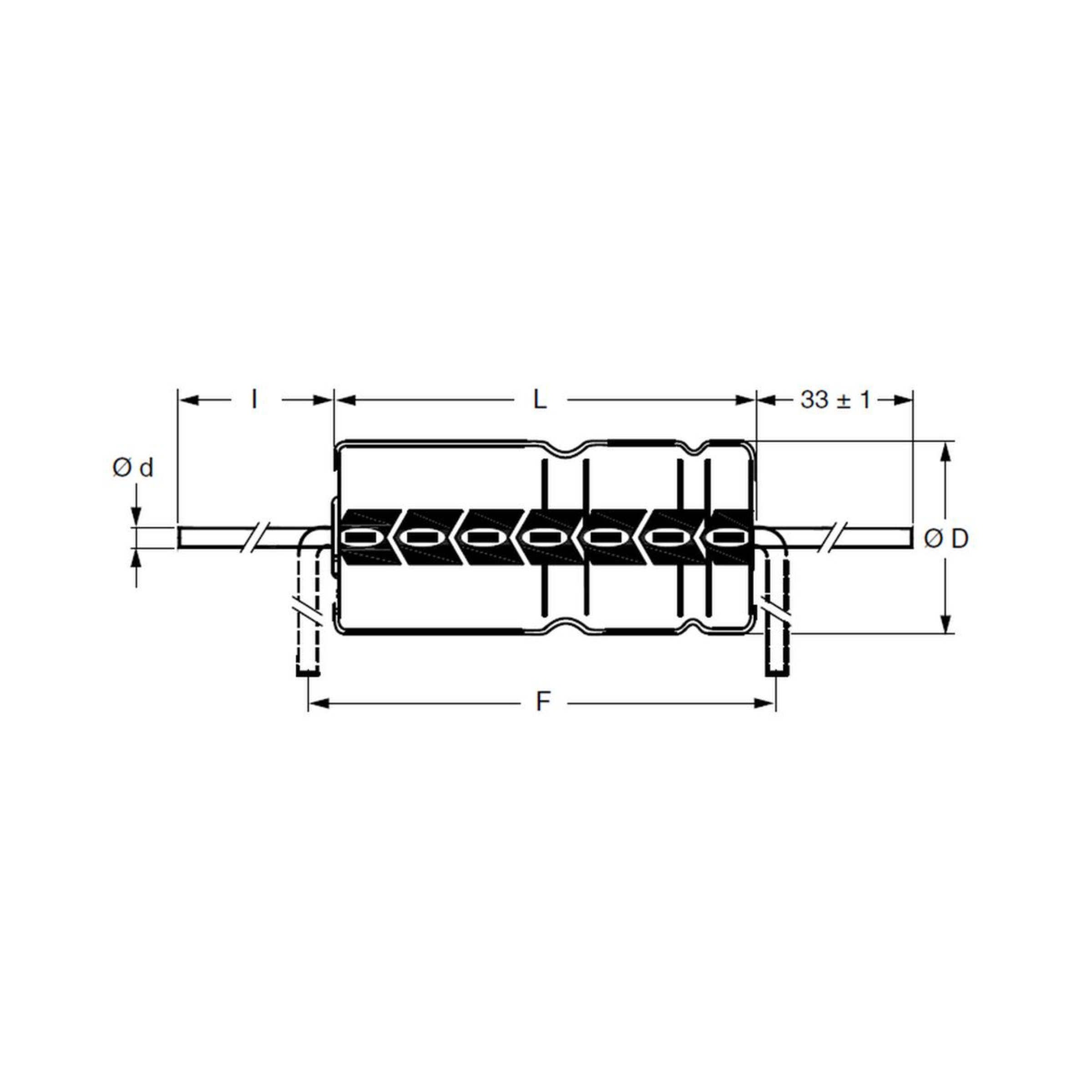

Dimensions and Weights

Diameter
  • 15 mm
Dimension: Length
  • 30 mm
Wire diameter
  • 0.8 mm
Weight
  • 8.3 g

Operating conditions

Operating Temperature Min.
  • -25 °C
Operating Temperature Max.
  • 85 °C
Climate category IEC
  • 25/85/56

Technical Features

Capacity
  • 15 µF
Capacity
  • 15
Capacity unit
  • µF
Capacity Tolerance [%]
  • -10/50
Leakage current
  • 115 µA
Ripple Current
  • 910 mA
Equivalent series resistance (ESR)
  • 1,7 Ohm
Rated voltage DC
  • 450 V
Service life
  • 20.000 h

Safety/Certifications

Standards
  • IEC 60384-4, EN 130300
